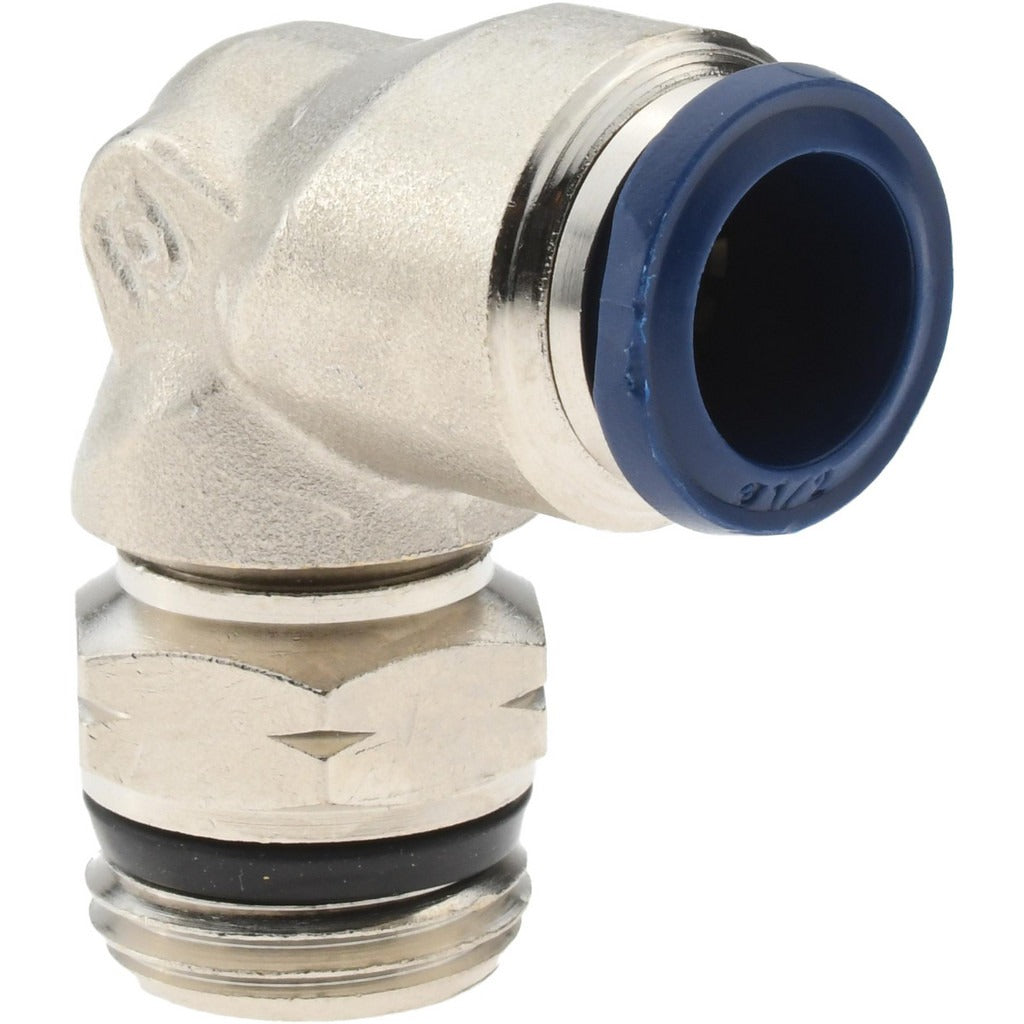

Pro-source 2555612163PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555612163PRO is a push-to-connect tube fitting designed for tube-to-universal-thread connections in fluid and pneumatic distribution systems. Constructed from nickel-plated brass with a Buna-N O-ring, it handles pressures up to 250 psi and accepts 1/2-inch OD tubing on the push-to-connect end with a 1/2-inch universal thread on the opposite end. This fitting is commonly installed by plumbers, HVAC technicians, and industrial maintenance technicians working on piping assemblies, refrigerant lines, or compressed air systems where a reliable, tool-free tube connection is required.

This fitting is suited for residential and light commercial plumbing, HVAC, and pneumatic applications where tubing must connect to a threaded port. The push-to-connect design allows fast, repeatable installation without crimping or soldering. The nickel-plated brass construction provides corrosion resistance in a wide range of fluid-handling environments. Each package contains 3 fittings, with a minimum order quantity of 1 package.

Key Features

• Push-to-connect design accepts 1/2-inch OD tubing without tools
• 1/2-inch universal thread on the opposite end for broad port compatibility
• Nickel-plated brass body for corrosion resistance
• Buna-N O-ring seal for reliable, leak-resistant performance
• Rated to 250 psi working pressure
• Sold in a 3-piece package per unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 1/2-inch OD tubing and 1/2-inch universal thread ports in plumbing, HVAC, and pneumatic fluid distribution assemblies.

Installation Notes

Installation is typically performed by licensed plumbers or HVAC technicians following applicable IPC or mechanical codes. Shut off system pressure and depressurize the line before inserting or removing the fitting. Ensure tubing is cut square and deburred before inserting into the push-to-connect collet for a proper seal. Do not exceed the rated working pressure of 250 psi.
