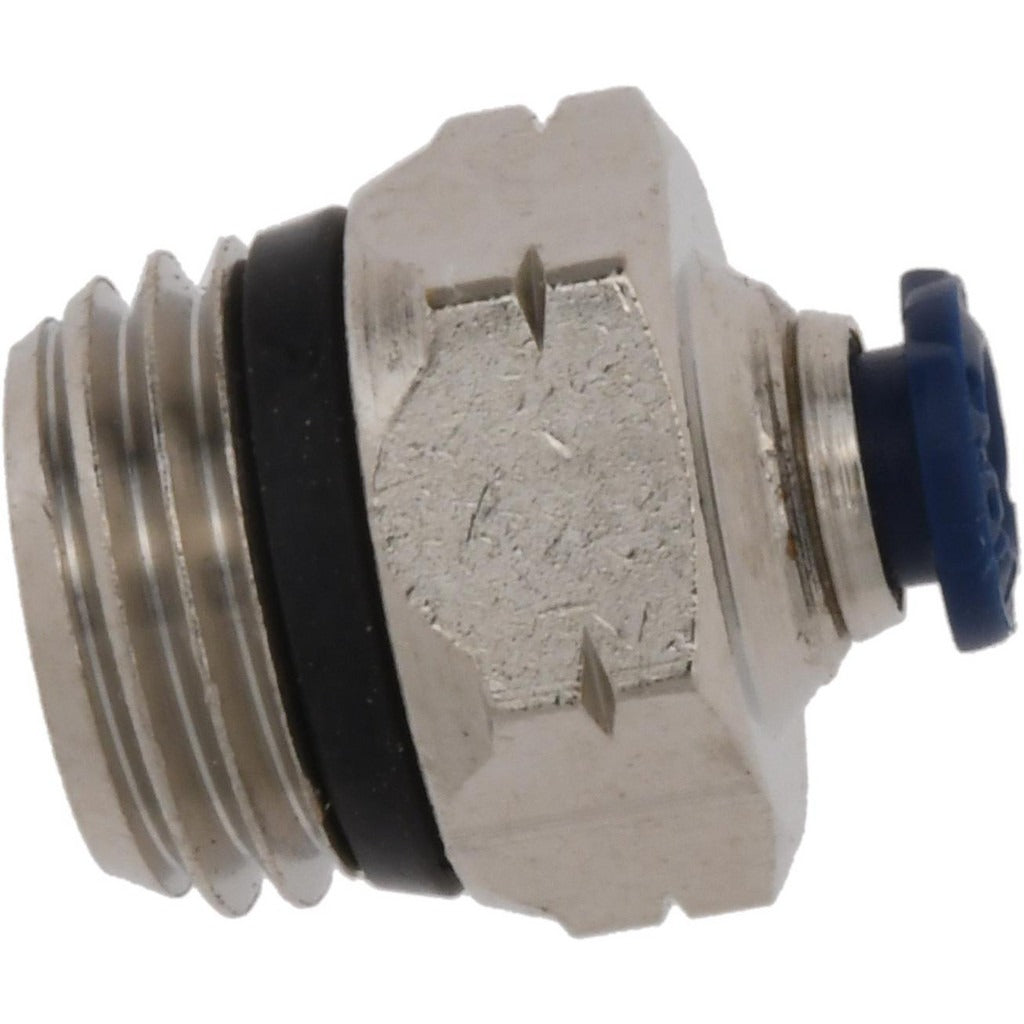

Pro-source 2555518465PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555518465PRO is a push-to-connect tube-to-universal-thread fitting designed for fast, tool-free tube connections in compressed air and water systems. Constructed from nickel-plated brass, it accepts 1/8-inch OD tubing and features a 1/4-inch universal thread port. Rated to 250 psi, this fitting is built for reliable service in light industrial, commercial, and mechanical system applications. Plumbers, HVAC technicians, and industrial maintenance professionals install these fittings where quick tube terminations are needed without the use of ferrules, wrenches, or thread sealant on the tube side. Buna-N O-ring material provides a secure seal across the fitting's rated pressure range.

This fitting is suited for use in compressed air distribution lines and water service applications where push-to-connect convenience and a universal threaded port are required. Typical install scenarios include pneumatic control tubing, light-duty air tool supply lines, and water distribution manifolds in residential and commercial mechanical systems. The universal thread configuration allows mating with a broad range of threaded ports without the need for adapters. This item is packaged in a quantity of five units per package.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast installation
• Nickel-plated brass construction resists corrosion in air and water service
• Rated to 250 psi for dependable performance in compressed air and water systems
• Buna-N O-ring provides a leak-resistant seal at the tube interface
• 1/4-inch universal thread port mates with a wide range of fittings and manifolds
• Packaged in quantities of five for convenient stocking and service use

Compatibility

Designed for use with compressed air and water systems accepting 1/8-inch OD tubing and a 1/4-inch universal thread connection.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or industrial mechanics working on pneumatic or water distribution systems. Depressurize and isolate the system before removing or installing any fittings. Ensure the tube end is cut square and deburred before inserting into the push-to-connect port to achieve a proper seal. When threading the universal port, apply appropriate thread sealant and follow local plumbing or mechanical codes as applicable.
