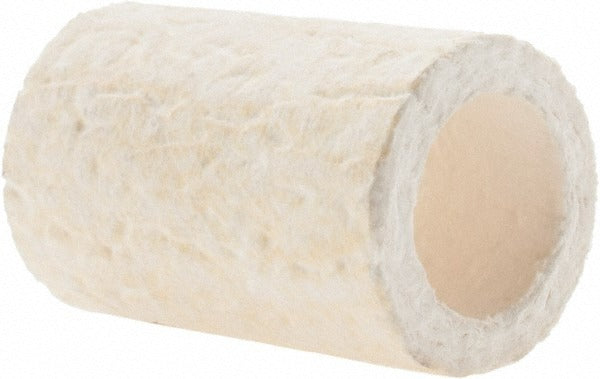

Pro-source 1990110035PRO Coalescing Filter Element 0.01 Micron

Product Description

The PRO-SOURCE 1990110035PRO is a coalescing filter element kit rated at 0.01 micron, designed for use with miniature compressed air or gas filter housings. The filter media is constructed from borosilicate glass fiber, which provides efficient coalescence of fine aerosol oil and water droplets at very high filtration efficiency. At 0.01 micron, this element targets sub-micron contaminants that standard particulate filters cannot capture. It is a direct replacement or service element intended for installation by HVAC technicians, pneumatic system technicians, or industrial maintenance personnel performing routine filter maintenance on miniature filter assemblies.

This filter element kit is suited for compressed air systems where downstream equipment requires clean, dry air free of fine oil mist and sub-micron particulates. Typical applications include instrument air lines, pneumatic control systems, and precision air-operated equipment in light commercial and industrial settings. The compact form factor, measuring 1.5 inches in length, 1 inch in width, and 2 inches in height, fits miniature filter housings where space is limited. One element kit is included per package.

Key Features

• 0.01 micron filtration rating removes sub-micron oil aerosols and fine particulates from compressed air streams
• Borosilicate glass fiber media delivers consistent coalescing performance over the service life of the element
• Compact dimensions fit miniature filter housings in space-constrained installations
• Kit format simplifies scheduled maintenance and element replacement
• Designed specifically for use with miniature filter assemblies

Compatibility

Designed for use with miniature compressed air coalescing filter housings that accept a replacement coalescing element of this form factor. Consult the filter housing documentation to confirm element interchangeability before installation.

Installation Notes

Filter element replacement should be performed by a qualified technician familiar with compressed air system service procedures. Depressurize and isolate the filter housing fully before opening the bowl or removing the element. Follow the filter housing manufacturer's instructions for proper element seating and bowl torque. Verify system pressure and flow ratings are within the housing specifications after reassembly and before returning the system to service.
