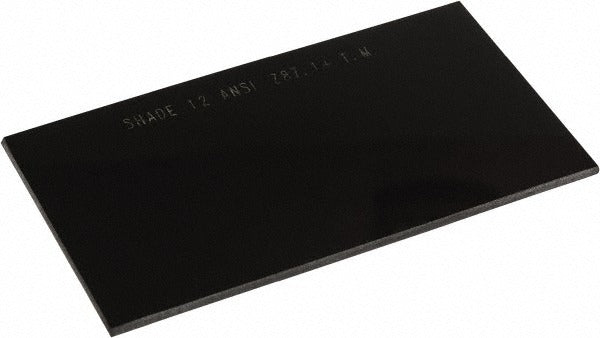

Pro-safe WH-100-WGD12 Fixed Shade Lens Shade 12

Product Description

The PRO-SAFE WH-100-WGD12 is a fixed shade polycarbonate welding lens designed to protect welders' eyes from arc radiation during welding operations. Rated at Shade 12, it is suited for high-amperage MIG, TIG, and stick welding processes that require a darker filter for safe arc viewing. The lens measures 4-19/64 inches wide and is 0.11 inches thick, offering a low-profile fit in standard welding helmet lens frames. Made from polycarbonate, it provides impact resistance alongside optical protection. Installation requires no special tools and is handled by the welder or safety equipment technician on the job site or in the shop.

This fixed shade lens is used in industrial and fabrication environments where consistent Shade 12 arc protection is needed. The universal mount design allows it to fit a broad range of welding helmet frames without modification. It is appropriate for professional welders in manufacturing, structural steel, pipeline, and maintenance welding applications where passive lens protection is preferred over auto-darkening systems. Compatible model noted in supplier data is the 100-ST welding helmet.

Key Features

• Shade 12 fixed filter for high-amperage welding arc protection
• Polycarbonate construction for impact resistance
• Green tint for standard arc color rendering
• Universal mount fits a wide range of welding helmet frames
• Low-profile thickness of 0.11 inches for flush lens seating

Compatibility

Listed for use with the 100-ST welding helmet per supplier data. Universal mount design is intended to fit standard welding helmet lens openings that accept this lens size.

Installation Notes

Fixed shade lenses are replaced by the welder or a safety equipment technician and require no power shutdown or special trade licensing. Remove the helmet from service before replacing the lens. Confirm the lens seats flush and the retaining frame or cover lens is secured before returning the helmet to use. Follow ANSI Z87.1 standards for eye and face protection when selecting and installing welding lenses.
