Pro-safe PSGBF1909 Drench Shower Eye Face Wash Station

Product Description

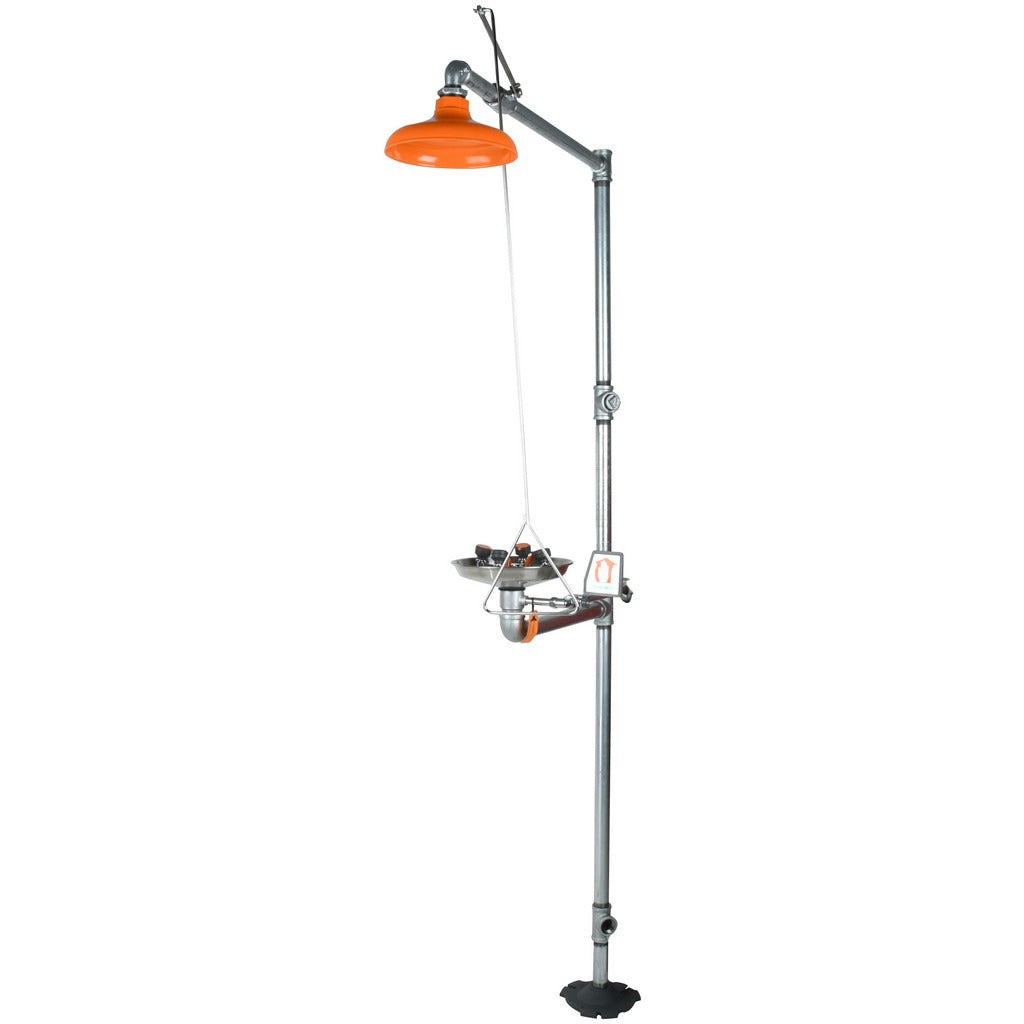

The PRO-SAFE PSGBF1909 is a combination drench shower and eye-face wash station designed for emergency decontamination in industrial and commercial environments. The unit delivers 20 GPM shower flow and 3 GPM bowl flow, both rated at 30 psi operating pressure, through a galvanized steel pipe body with a plastic shower head and stainless steel wash bowl. Activation is handled by a triangular pull rod push flag mechanism, allowing single-motion operation in an emergency. The open wash station style and wheelchair-accessible design meet ANSI Z358.1-2004 requirements. The unit accepts a 1-1/4 inch inlet supply and can be plumbed from the top or mid supply position. Total unit weight is 48.6 pounds.

This station is intended for facilities where workers may be exposed to hazardous chemicals, biological agents, or other contaminants requiring immediate full-body or eye and face flushing. Typical installations include chemical plants, laboratories, manufacturing floors, warehouses, and similar industrial or commercial settings. The combination design allows a single installed unit to serve both shower and eye-face wash functions simultaneously, reducing required floor space while meeting emergency eyewash and shower code requirements. The wheelchair-accessible configuration supports ADA-aligned emergency response planning.

Key Features

• Drench shower delivers 20 GPM flow at 30 psi for full-body decontamination
• Integrated eye and face wash bowl flows at 3 GPM at 30 psi
• Triangular pull rod push flag activation for fast, single-motion emergency operation
• Galvanized steel pipe construction provides corrosion resistance
• Stainless steel wash bowl for durability in wet industrial environments
• Top or mid supply plumbing options for flexible installation
• Wheelchair accessible and compliant with ANSI Z358.1-2004

Compatibility

Designed as an OEM-style emergency combination drench shower and eye-face wash station for industrial and commercial plumbing systems with a 1-1/4 inch inlet supply connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI Z358.1-2004 placement and clearance requirements. Shut off the water supply to the feed line before making any connections. Confirm supply pressure is within the rated operating range before commissioning, and verify both the shower and bowl functions activate and flow correctly during final testing. Do not obstruct access pathways to the unit after installation.
