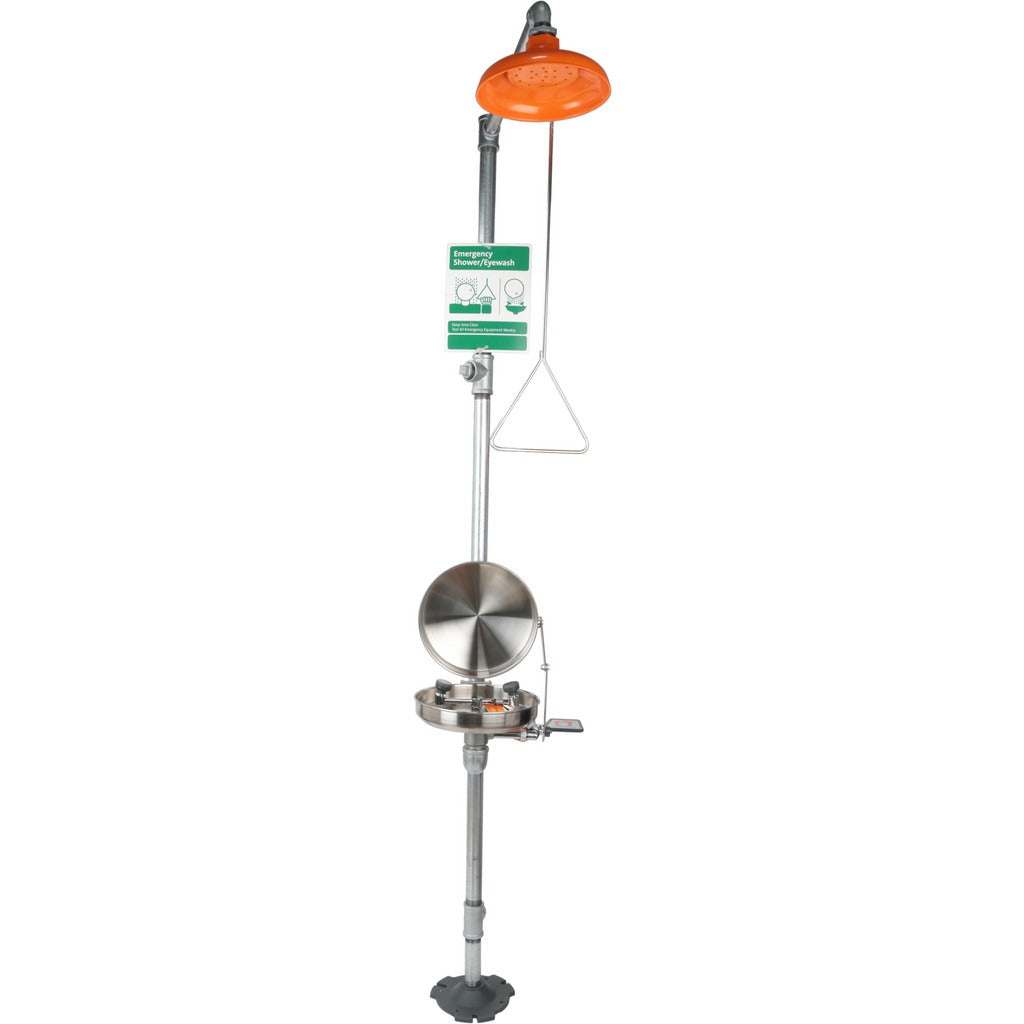

Pro-safe PSG1931 Drench Shower Eye Face Wash Station

Product Description

The PRO-SAFE PSG1931 is a combination drench shower and eye/face wash station designed for emergency decontamination in industrial and commercial environments. It delivers 20 GPM shower flow and 3 GPM bowl flow, both rated at 30 psi operating pressure. The unit features a galvanized steel pipe construction, a plastic shower head, and a triangular pull rod with push flag activation for fast, hands-free emergency response. Installation accommodates top or mid supply connections at a 1-1/4 inch inlet. This station is installed by licensed plumbers or safety facilities technicians in compliance with applicable codes.

The PSG1931 is suited for industrial facilities, laboratories, manufacturing plants, chemical handling areas, and other workplaces where ANSI Z358.1 emergency eyewash and shower compliance is required. The no-bowl configuration keeps the footprint compact while still delivering simultaneous drench shower and eye/face wash capability. Top or mid supply flexibility allows installation in a range of plumbing rough-in scenarios, including both new construction and retrofit applications.

Key Features

• Combination drench shower and eye/face wash station in a single unit
• 20 GPM shower flow rate at 30 psi for full-body decontamination
• 3 GPM eye/face bowl flow rate at 30 psi
• Triangular pull rod with push flag activation for immediate hands-free operation
• Galvanized steel pipe construction for corrosion resistance
• Top or mid supply inlet configuration, 1-1/4 inch inlet size
• Meets ANSI Z358.1-2004 emergency equipment standards

Compatibility

Designed as an OEM-style emergency safety station for industrial and commercial plumbing systems requiring ANSI Z358.1-compliant drench shower and eye/face wash capability with a 1-1/4 inch supply inlet.

Installation Notes

Installation should be performed by a licensed plumber familiar with emergency safety equipment and applicable local plumbing codes. Shut off the water supply and relieve line pressure before making any connections. Verify adequate flow rate and pressure at the supply point prior to commissioning, as ANSI Z358.1 specifies minimum performance thresholds that must be confirmed by flow testing. Do not reduce the supply line size below the specified 1-1/4 inch inlet, as this will restrict flow and may result in non-compliant performance.
