Pro-safe PSG1825BC Pedestal Mount Eyewash Station

Product Description

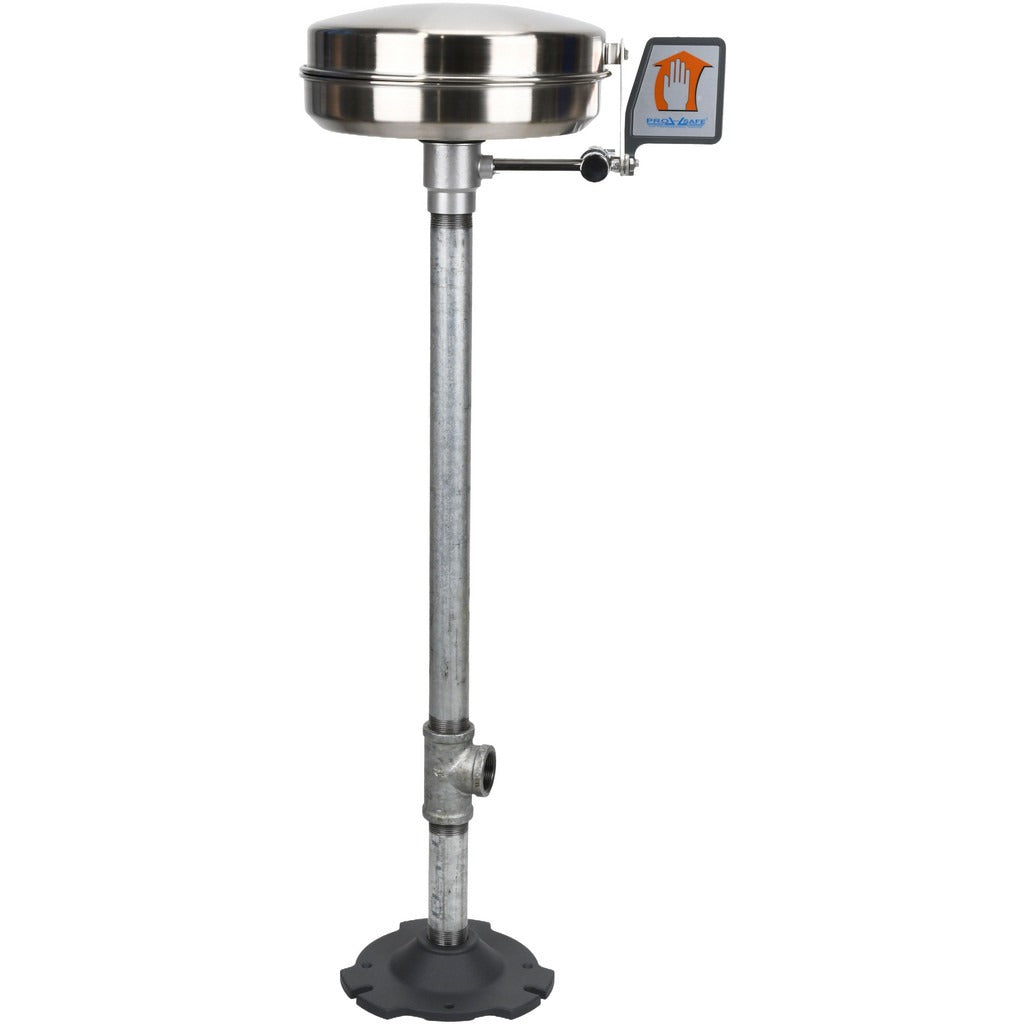

The PRO-SAFE PSG1825BC is a pedestal-mount eyewash station designed for emergency eye-flush response in industrial, commercial, and laboratory environments. The unit features a covered stainless steel bowl, push-flag activation, and a 1/2-inch inlet connection rated for 30 psi flow at 0.4 gallons per minute (GPM). It is built to meet ANSI Z358.1-2004 requirements for emergency eyewash equipment. Safety coordinators, facilities maintenance technicians, and industrial plumbers are the primary personnel responsible for installation and commissioning of this type of equipment.

The PSG1825BC is suited for permanent installation in areas where workers face exposure to hazardous chemicals, particulates, or other ocular irritants. Typical locations include manufacturing floors, chemical processing facilities, laboratories, and maintenance shops. The deck-mount pedestal configuration allows for freestanding placement where wall-mount options are not practical. The push-flag activation enables fast, single-motion operation during an emergency without the need to grasp or manipulate a valve handle.

Key Features

• Covered stainless steel bowl protects the spray heads from contamination between uses
• Push-flag activation allows rapid, hands-free emergency actuation
• 1/2-inch inlet connection for standard plumbing supply lines
• 0.4 GPM flow rate at 30 psi meets emergency flush delivery requirements
• Pedestal mount configuration supports freestanding installation without wall attachment
• Compliant with ANSI Z358.1-2004 emergency eyewash equipment standards

Compatibility

Designed as an ANSI Z358.1-2004-compliant pedestal-mount eyewash station for permanent plumbing connection in industrial and commercial facilities requiring emergency eye-flush capability.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ANSI Z358.1-2004 placement guidelines, which specify maximum travel distance and response time from the hazard area. Shut off the water supply to the feed line before making the inlet connection. Do not install in locations subject to freezing temperatures unless a freeze-protection or tempered-water supply system is in place. After installation, flush the unit thoroughly and verify flow rate and spray-head coverage before putting the station into service.
