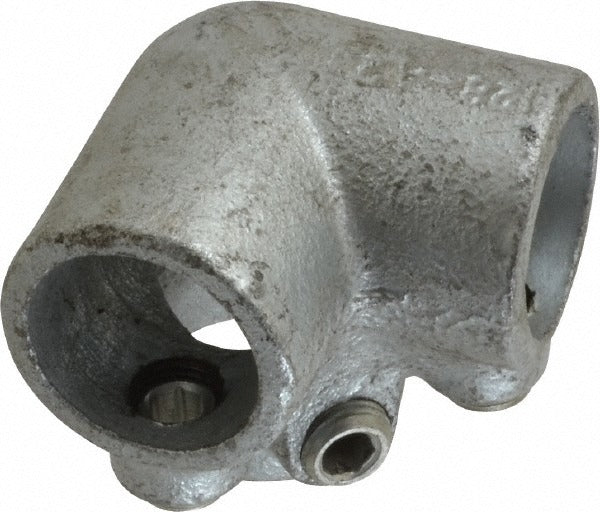

Pro-safe CVB0610-26 90 Side Outlet Elbow 3/4 in Malleable Iron

Product Description

The PRO-SAFE CVB0610-26 is a 90-degree side outlet elbow pipe rail fitting machined from malleable iron with a galvanized finish. This fitting accepts 3/4-inch pipe and redirects flow or structural rail runs at a 90-degree side outlet angle, making it a standard component in handrail assemblies, pipe rail systems, and industrial piping runs. The galvanized coating provides corrosion resistance suitable for exposed or moderately harsh environments. Plumbers, pipefitters, and general contractors typically install this fitting where a lateral branch outlet is needed at a right angle from the main run. The fitting ships as a single unit and weighs 1.8 pounds.

This side outlet elbow is designed for use in pipe rail and handrail assemblies common in commercial and industrial facilities, as well as general plumbing and mechanical piping applications that use 3/4-inch malleable iron fittings. The 90-degree side outlet configuration suits corner transitions and branch takeoffs in rail systems where a third outlet must exit perpendicular to the primary pipe run. It is a field-standard component for fabricating compliant guardrail and pipe rail structures.

Key Features

• 90-degree side outlet elbow geometry for lateral branch connections in rail and pipe systems
• Malleable iron construction for strength and impact resistance in mechanical and rail applications
• Galvanized finish provides corrosion resistance for indoor and moderate-exposure environments
• Sized for 3/4-inch pipe, a common dimension in handrail and light structural piping systems
• Sold as a single unit — no multi-pack minimum required

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch malleable iron pipe rail and general piping systems that use standard threaded iron fittings.

Installation Notes

This fitting is installed by licensed plumbers, pipefitters, or qualified contractors working on pipe rail or structural piping systems. Shut off and depressurize any active piping before removing or installing threaded fittings. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly, and tighten to snug-plus-turns per applicable code — do not over-torque malleable iron fittings. Installations used as guardrail or handrail components must comply with applicable building codes and OSHA structural requirements for the intended load.
