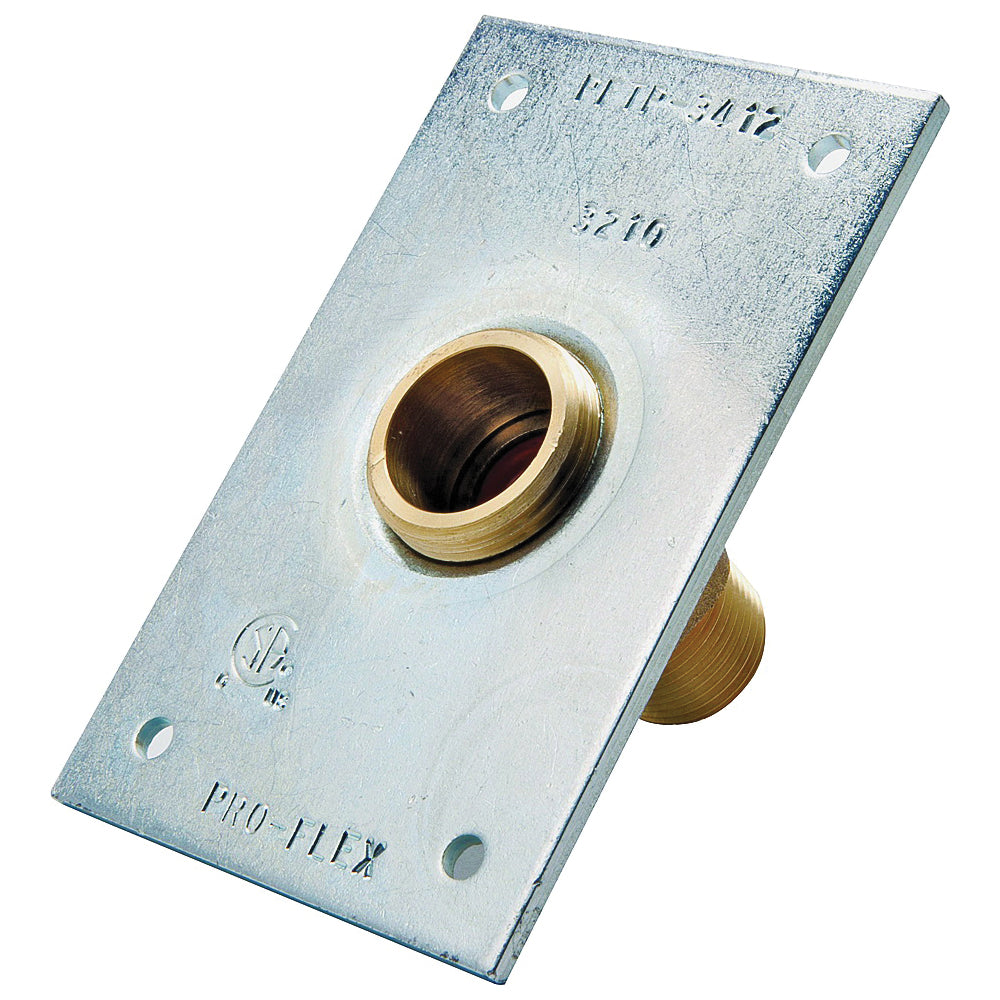

Pro-Flex Csst PFST-12 Termination Plate W/ftg 1/2 in

Product Description

The PRO-FLEX CSST PFST-12 termination plate facilitates the termination of a 1/2" CSST gas line and provides a transition to a 1/2" female threaded gas valve, fitting, or appliance connector. The inner 3/8" FIP connection allows connecting a 3/8" MIP pipe nipple or fitting. It includes an attached fitting with all components required for assembly to Pro-Flex tubing.

• Facilitates termination of a 1/2" CSST gas line
• Provides means of transition to 1/2" female threaded (FIP) gas valve, fitting or appliance connector
• Inner 3/8" FIP connection allows connecting 3/8" MIP pipe nipple or fitting

Product Highlights

Designed for quick and easy assembly of natural gas or propane gas systems. Connection of pipe to fitting is outside the wall.

Product Information

Standard Information

• Brand: PRO-FLEX CSST
• Manufacturer Part Number: PFST-12
• Country of Origin: United States

Technical Specifications

• Connections: 1/2" MIP male threaded (3/8" FIP female threaded inside) x 1/2" CSST
• Plate dimensions: 2.5" x 4"
• Fitting materials: C36000 brass body, 304 st. steel retainer & slide rings, silicone O-ring, proprietary high-temperature gasket
• Plate material: 1018 low-carbon steel
• Max. operating pressure: 5 psi
• CSA listed: true
• Nominal Size: 1/2 in
• Suitable for: 1/2 in NPT Male or 3/8 in NPT Female Shut-Off Valves and Appliance Connector
• MPN: PFST-12
• Brand: Pro-Flex
• Country of Origin: United States
