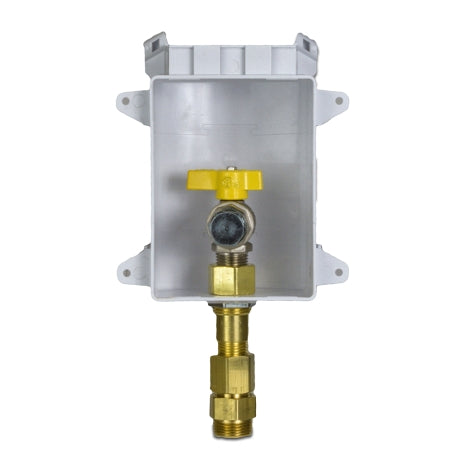

Pro-Flex Csst PFOX-1206 Gas Ox Box 1/2 inches NPT w/ PF Fitting & Valve

Product Description

The PRO-FLEX CSST PFOX-1206 Gas Ox Box provides a simple and aesthetic gas termination and shut-off solution for 1/2" ProFlex CSST pipe. The gas valve connections are 1/2" FIP female threaded x 1/2" CSST with a max operating pressure of 5 psi and a max testing pressure of 10 psi.

• Simple and aesthetic gas termination
• Shut-off solution for 1/2" ProFlex CSST pipe
• Outlet box dimensions: 4" W x 3-1/2" D x 5-1/2" H

Product Highlights

Provides simple gas termination and shut-off for 1/2" ProFlex CSST pipe.

Product Information

Standard Information

• Brand: PRO-FLEX CSST
• Manufacturer Part Number: PFOX-1206
• Country of Origin: United States

Technical Specifications

• Gas Valve Connections: 1/2" FIP female threaded x 1/2" CSST
• Max. operating pressure: 5 psi
• Max. testing pressure: 10 psi
• Box materials: ABS box & frame, galvanized bracket, steel screws
• Frame dimensions: 5-3/4" W x 7-1/4" H; Opening: 3-5/8" W x 5-1/8" H
• Certifications & approvals: ANSI Z21.15, CSA
• Brand: Pro-Flex
• Nominal Size: 1/2 in
• Type: Gas Outlet Box
