Prime Wire Cable TNO24111 Outdoor Timer 15A 125V 24hr

Product Description

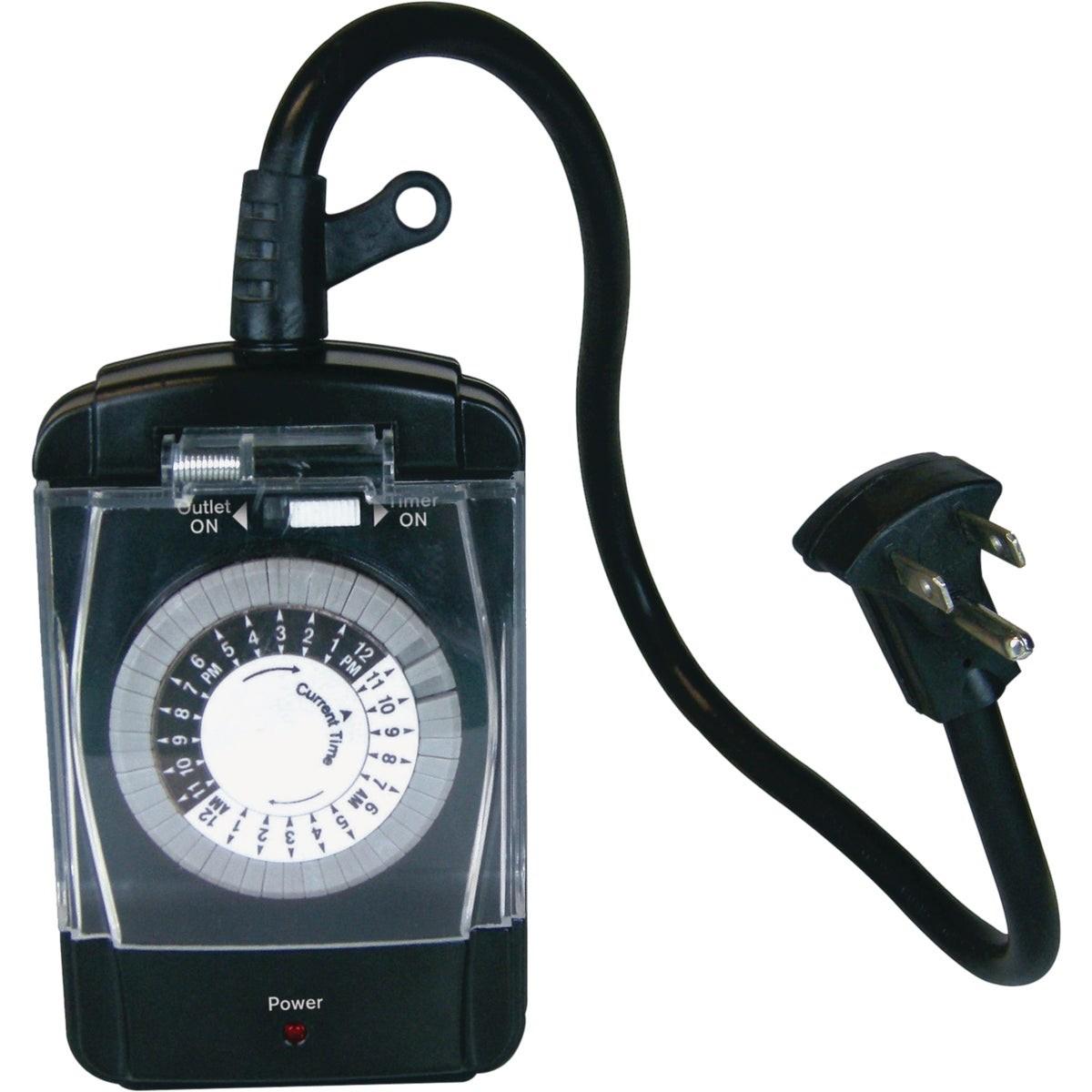

The PRIME WIRE CABLE TNO24111 is a 2-outlet outdoor 24-hour electromechanical timer rated at 15 amps, 125 volts, and 1875 watts. It connects via an 18-inch cord and uses push-down pins to set on and off schedules in 30-minute increments, giving up to 48 setting options per 24-hour cycle. A patented reverse ground-pin design allows the unit to accept most right-angle and transformer plugs when wall-mounted. Licensed electricians and experienced trade installers deploy this timer for outdoor lighting controls, irrigation accessories, and similar scheduled-load applications.

This timer is suited for residential and light-commercial outdoor installations where a repeating daily on/off cycle is required. The 24-hour repeating cycle activates both outlets simultaneously at the programmed times each day. A clear weather-guard cover protects the programming dial and internal mechanism from rain and other inclement weather while keeping the dial visible without removing the cover. An on/off override switch allows manual control independent of the programmed schedule. Mounting holes on the back of the housing allow the unit to be secured directly to a wall surface.

Key Features

• 15A, 125V, 1875W rating handles standard outdoor lighting and accessory loads
• 30-minute programming increments with up to 48 settings per 24-hour cycle
• Patented reverse ground-pin accepts most right-angle and transformer plugs when wall-mounted
• Clear weather-guard cover protects mechanism and maintains dial visibility in outdoor conditions
• Compatible with CFL, LED, and incandescent lamp types
• On/off override switch for manual control without clearing the programmed schedule

Compatibility

Compatible with CFL (compact fluorescent), LED, and incandescent loads up to 15 amps at 125 volts. Designed as an OEM-style outdoor electromechanical timer for residential and light-commercial scheduled-load applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines for outdoor receptacle and timer installations. Power down the circuit at the breaker before connecting or disconnecting the timer. Confirm the connected load does not exceed the 15A, 125V, 1875W rating. When wall-mounting, use the rear mounting holes to secure the housing to a suitable outdoor surface before plugging in loads.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• Wattage: 1875 watts
• Outlets: 2
• Cord Length: 18 inches
• Cycle: 24-hour repeating
• Programming Increment: 30 minutes
• Setting Options: Up to 48 per 24-hour period
• Weight: 1.22 pounds
• UPC: 00054732816279

Standard Information

• Brand: PRIME WIRE CABLE
• Manufacturer Part Number: TNO24111
