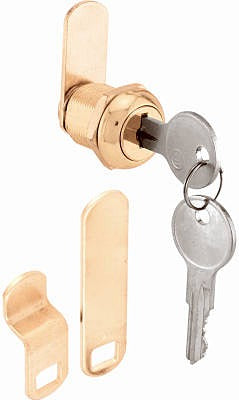

Prime Line Products U 9942 Drawer Cabinet Lock 5/8 in

Product Description

The PRIME LINE PRODUCTS U 9942 is a brass drawer and cabinet lock designed for securing drawers, cabinets, and doors in both residential and light commercial applications. The lock features a stainless steel face with a brass finish plated housing and steel cams. The cylinder measures 5/8 inches in length and 3/4 inches in outer diameter, accommodating drawer or cabinet material up to 5/16 inches thick. The keyed locking mechanism uses the Yale Y-13 keyway and ships keyed different, meaning each lock operates on a unique key. Installation is suited to metal or wood doors and drawers.

This lock is commonly installed by locksmiths, cabinet installers, millwork contractors, and maintenance technicians. Typical applications include office furniture, tool storage cabinets, equipment enclosures, and residential cabinetry. The cam-style design supports flexible mounting orientations. The included hardware kit provides everything needed for a complete installation on a single lock position, making it a practical replacement or new-installation option for light-duty locking needs.

Key Features

• Cylinder length of 5/8 inches with 3/4 inch outer diameter fits standard drawer and cabinet cutouts
• Stainless steel face with brass finish plated housing for corrosion resistance and clean appearance
• Steel cams compatible with metal or wood door and drawer construction
• Uses Yale Y-13 keyway — keyed different for individual security per lock
• Complete hardware kit included: 1 lock, 3 cams, 1 trim collar, 1 spur washer, 2 rotation washers, 1 lock nut, and 2 keys
• Accommodates cabinet or drawer material up to 5/16 inches maximum thickness

Compatibility

Designed as an OEM-style replacement or new-installation lock for metal or wood drawers and cabinets with a standard cylinder bore sized for a 3/4 inch outer diameter, 5/8 inch cylinder length insert.

Installation Notes

Power tools are not required for installation, but a properly sized hole saw or drill bit matching the 3/4 inch cylinder outer diameter is needed to prepare the mounting surface. Ensure the cabinet or drawer panel does not exceed 5/16 inches in thickness before installation. Select the appropriate cam orientation before tightening the lock nut to confirm correct throw direction. Keyed different units cannot be re-keyed to match existing locks without locksmith service.
