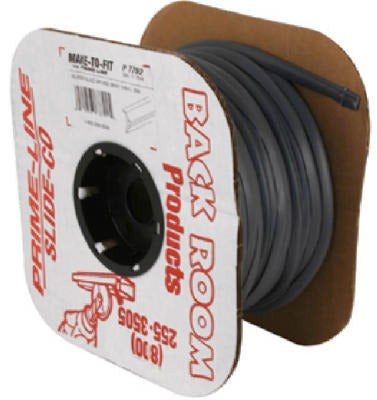

Prime Line Products P 7792 Vinyl Glazing Spline 200 Ft

Product Description

The PRIME LINE PRODUCTS P 7792 is a vinyl glazing spline designed to secure glass panels within window and door frames. Sold in a 200-foot roll, this gray spline measures 0.230 inches in width and 0.395 inches in height, making it compatible with a range of single and double glass thicknesses. Glazing contractors, window installers, and general contractors use this spline when re-glazing or replacing glass in aluminum and similar frame systems. The vinyl construction provides a firm, weather-resistant seat that holds glass firmly in the channel without cracking or shrinking under normal service conditions.

This spline is suited for residential and light commercial window and door re-glazing applications. It accommodates single glass panels with thickness from 0.085 to 0.101 inches and double glass panels with thickness from 0.115 to 0.134 inches. Typical installs include sliding windows, screen frames, and storefront-style door lite applications where a rolled spline retains the glass within a routed or extruded frame channel.

Key Features

• 200-foot roll provides ample material for multi-window service calls or new construction glazing work
• 0.230 inch width by 0.395 inch height cross-section fits standard frame channels
• Compatible with single glass thickness range of 0.085 to 0.101 inches
• Compatible with double glass thickness range of 0.115 to 0.134 inches
• Gray vinyl construction resists weathering and maintains a secure glass seat over time
• Packaged 6 rolls per case for contractor restocking

Compatibility

Designed for use with single glass panels ranging from 0.085 to 0.101 inches thick and double glass panels ranging from 0.115 to 0.134 inches thick. Suitable as an OEM-style replacement glazing spline for aluminum and extruded frame window and door systems that accept a 0.230 inch wide spline profile.

Installation Notes

Glazing spline installation is typically performed by licensed glaziers or experienced window service technicians. Before starting, ensure the glass panel is fully supported and the frame channel is clean and free of old spline material or debris. A spline roller tool is the standard instrument for seating the spline uniformly into the channel without stretching or distorting the vinyl. Work is generally performed per local building codes and AAMA glazing guidelines where applicable.
