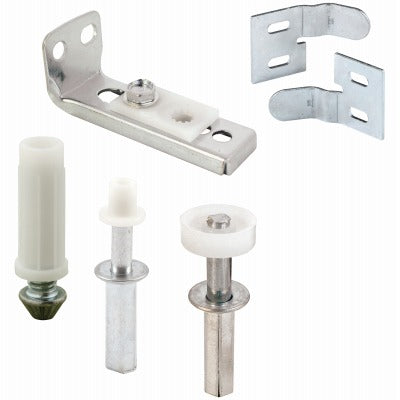

Prime Line Products N 7530 Bi-fold Door Repair Kit

Product Description

The PRIME LINE PRODUCTS N 7530 is a complete bi-fold closet door pivot and bracket repair kit designed to restore damaged or missing hardware on standard bi-fold door systems. The kit combines steel and plastic components to address the most common failure points in a bi-fold door track-and-pivot assembly. It is suited for doors ranging from 1 inch to 1-3/8 inches thick and rated for doors weighing up to 50 pounds. Carpenters, remodelers, and maintenance technicians install this kit when pivots, roller guides, or bracket hardware are broken, corroded, or missing. The kit fits 7/16 inch diameter mounting holes, making it a direct-fit solution for a wide range of existing door frames without modification.

This repair kit is used on residential bi-fold closet door systems where individual hardware components have failed. It is specifically noted as compatible with bi-fold doors manufactured by Acme, Cox, Stanley, and many other manufacturers. The full set of included components covers both top and bottom pivot points as well as alignment and bracket hardware, making it a one-stop repair solution rather than a piecemeal parts replacement. The kit ships in a package quantity of six units per package, making it practical for multi-door or multi-unit service calls.

Key Features

• Fits 7/16 inch diameter mounting holes in standard bi-fold door frames
• Includes spring-loaded top bi-fold pivot (N 6545) with 7/16 inch base and 3/8 inch diameter pivot cap
• Includes spring-loaded top roller guide (N 6544) with 7/8 inch diameter and 7/16 inch diameter base
• Includes jamb and floor mount pivot bracket plus adjustable bottom pivot (N 6696) with 7/16 inch base
• Includes bottom pivot (N 6543) with adjustable self-lubricating plastic bushing for low-maintenance operation
• Includes one pair of door surface aligners for proper door face alignment after installation

Compatibility

Compatible with bi-fold doors manufactured by Acme, Cox, Stanley, and many others. Designed for doors 1 inch to 1-3/8 inches thick and weighing up to 50 pounds that use 7/16 inch diameter pivot holes.

Installation Notes

Installation is typically performed by a carpenter, general contractor, or experienced maintenance technician. Before beginning, ensure the door panels are removed from the track and all tension is relieved from existing spring-loaded components. Standard hand tools are sufficient for most installations. Inspect the door frame mounting holes for damage or enlargement before installing new pivots, as worn holes may require patching to achieve a secure fit.
