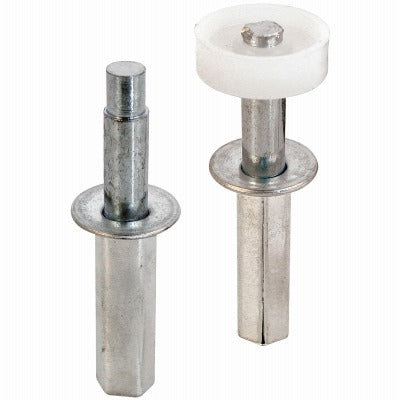

Prime Line Products N 7263 Bi-fold Door Top Pivot Guide Set

Product Description

The PRIME LINE PRODUCTS N 7263 is a combination hardware set consisting of a top pivot and a top guide designed for wood bi-fold doors. Both components feature spring-loaded steel shafts housed in a 7/16 inch diameter steel housing. The top pivot fits a 7/16 inch diameter bore with a 1/4 inch diameter pivot stem and pin. The top guide includes a 7/8 inch horizontal roller wheel engineered to run smoothly on 7/8 inch wide track systems. This set is installed by carpenters, finish trim contractors, and skilled DIYers during door hardware replacement or new bi-fold door installation.

This hardware set is suited for residential bi-fold door applications using wood door panels. It is commonly used during door hardware replacement when original pivots and guides have worn, broken, or gone missing. The set addresses both the pivot point and the lead door guidance function in a single package, making it a practical replacement solution for standard wood bi-fold door systems. The package includes 6 units per order, providing enough hardware for multiple door panels or service calls.

Key Features

• Combination set includes both top pivot and top guide in one package
• Spring-loaded steel shafts for secure, self-retaining fit in pre-drilled mount holes
• 7/16 inch diameter steel housing on both components
• 1/4 inch diameter pivot stem and pin for standard bore compatibility
• 7/8 inch horizontal roller wheel for smooth lead door travel on 7/8 inch track systems
• Sold as a 6-unit pack suitable for multi-door or bulk service use

Compatibility

Designed for use with a variety of wood bi-fold door manufacturers using standard 7/16 inch diameter bore top pivot holes and 7/8 inch wide track systems.

Installation Notes

Installation is typically performed by finish carpenters or general contractors as part of door hardware service. Before installing, ensure the door panel is secured and the track system is properly aligned. Lightly tap each spring-loaded component into the pre-drilled top mount holes using a mallet — do not force or over-drive. Verify pivot bore diameter and track width match the specifications of this set before installation.
