Prime-line Products N 6992 Bottom Pivot Bracket Pin Kit

Product Description

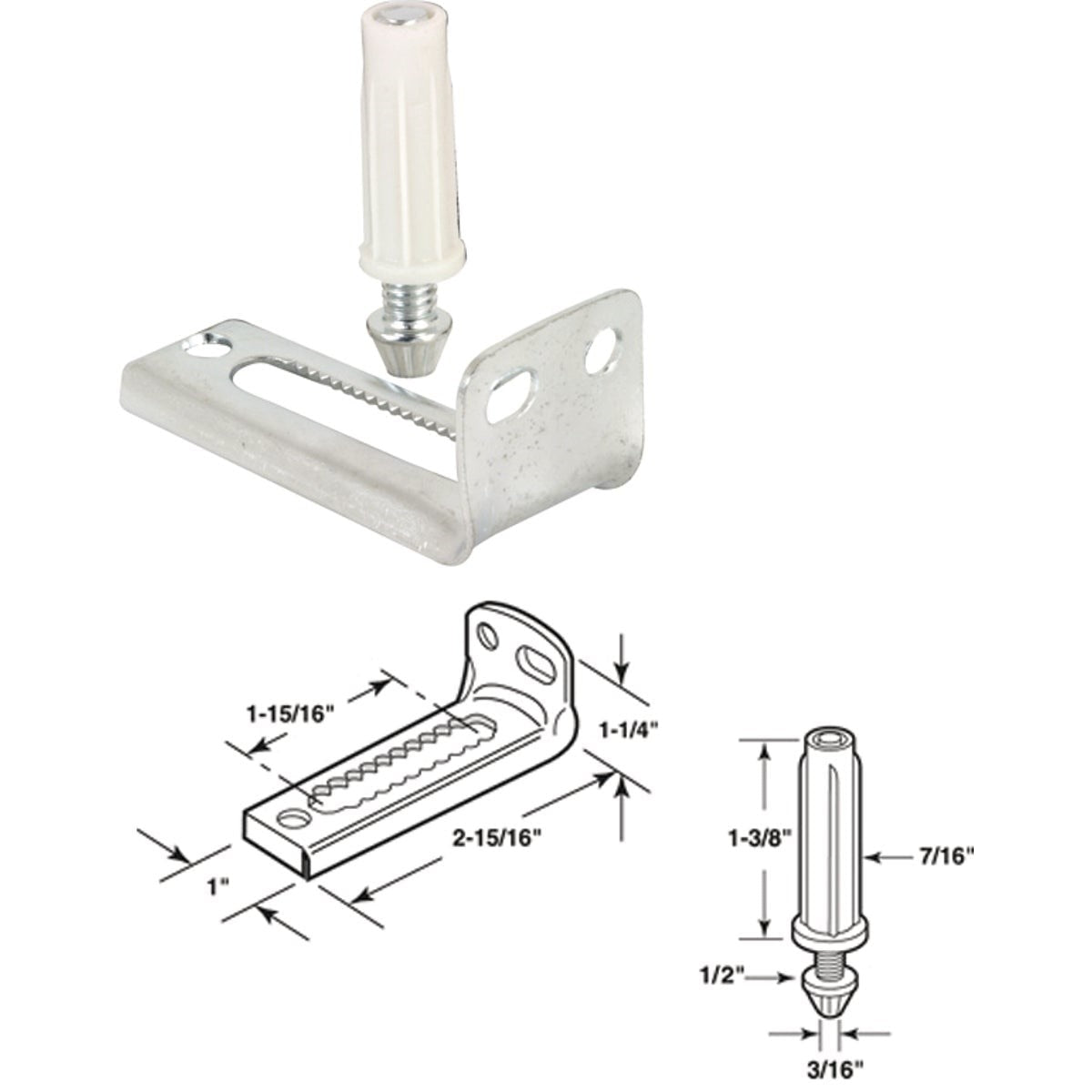

The PRIME-LINE PRODUCTS N 6992 is a bottom pivot bracket and pin kit designed for bi-fold door installations. The kit provides the floor- and jamb-mounted pivot point that allows a bi-fold door panel to swing and fold smoothly. The pivot base is made from nylon and includes a grooved, cone-shaped pivot bolt. Multiple adjustable positions on the bracket allow for alignment tuning during installation. This type of hardware is installed by finish carpenters, general contractors, and skilled DIYers during new construction or door replacement projects.

This kit is suited for residential bi-fold door applications where the bottom pivot point needs to be set at the floor or jamb. It is commonly used in closet openings, laundry rooms, and utility spaces where bi-fold doors are the standard door type. The adjustable pivot positions make it practical for installations where the door alignment needs to be fine-tuned after hanging. One complete set is included per package.

Key Features

• Floor- and jamb-mounted pivot bracket with multiple adjustable positions for precise door alignment
• Nylon pivot base resists wear at the contact point
• Grooved, cone-shaped pivot bolt for secure pivot engagement
• One complete bracket and pin set per package

Compatibility

Designed as an OEM-style replacement or new-installation bottom pivot hardware for standard residential bi-fold door systems.

Installation Notes

Installation is typically performed by a finish carpenter or experienced DIYer using basic hand tools. Ensure the door panel is fully supported before removing or replacing the existing pivot hardware. Position the bracket at the correct adjustable setting before securing fasteners to allow for post-installation alignment adjustments. Follow door manufacturer guidelines for floor and jamb fastener placement.

Technical Specifications

• Weight: 0.182 pounds
• Material: Nylon pivot base with grooved cone-shaped pivot bolt
• Package Quantity: 1 set
• UOM: Pack
• UPC: 00049793069924

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6992
