Prime-line Products N 6705 Bifold Door Square Top Guide

Product Description

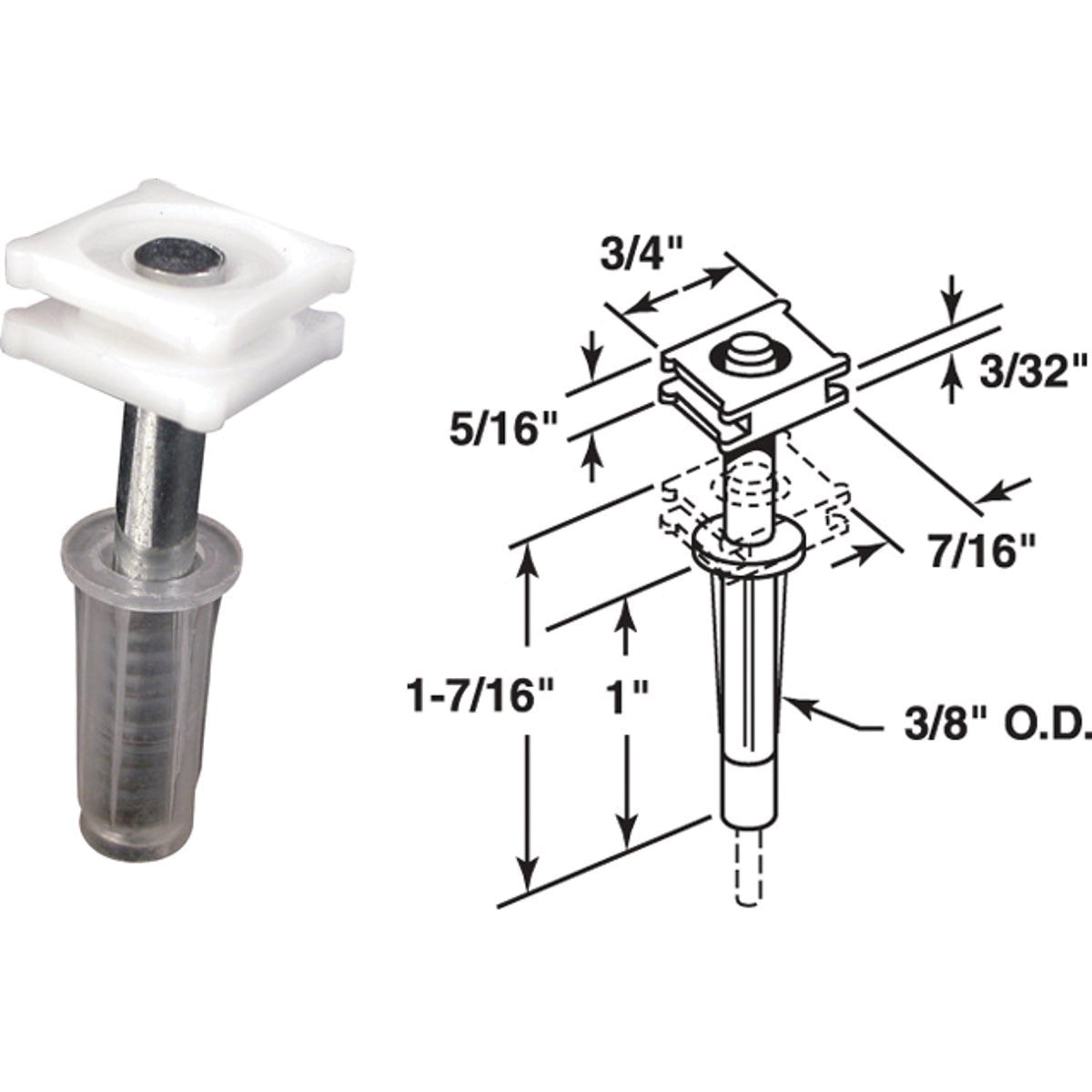

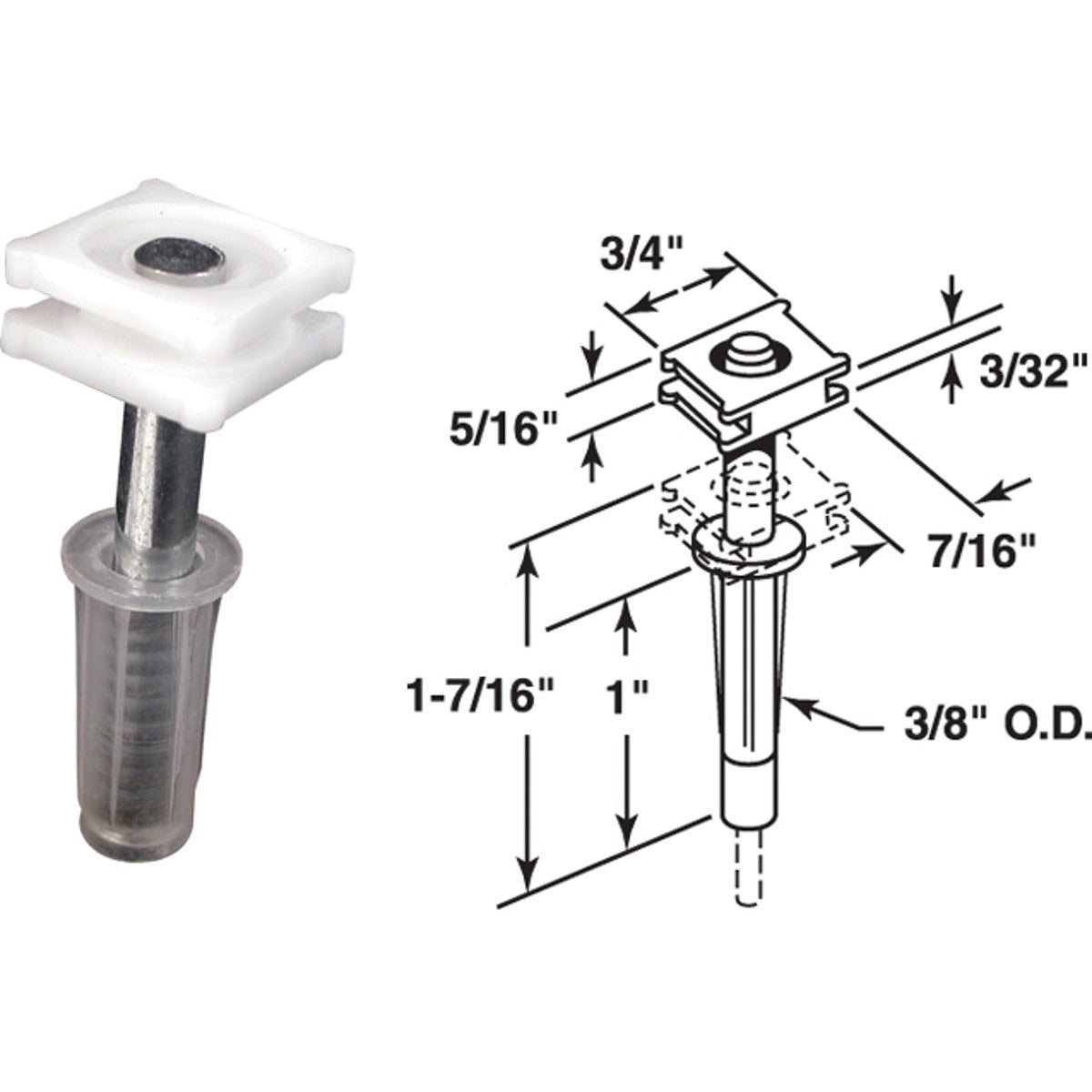

The PRIME-LINE PRODUCTS N 6705 is a square top pivot guide designed for bi-fold door installations. The guide features a spring-loaded, 3/4-inch square glide housed in a 3/8-inch plastic base. It mounts to the top edge of a bi-fold door and accommodates door thicknesses from 1 inch to 1-3/8 inches. This hardware is a standard component in residential bi-fold door systems and is typically installed by carpenters, general contractors, or experienced DIYers during door installation or hardware replacement. Each pack contains one pair of guides.

This top guide is suited for standard residential bi-fold door applications where the existing square top pivot guide has worn, broken, or gone missing. The spring-loaded design allows the guide to seat securely in the top track channel, keeping the door aligned during operation. It is appropriate for interior passage doors, closet doors, and utility room bi-fold applications where door thickness falls within the 1-inch to 1-3/8-inch range.

Key Features

• Spring-loaded square glide for secure track engagement
• 3/4-inch square glide profile fits standard bi-fold top track channels
• 3/8-inch plastic base mounts to the top edge of the door
• Compatible with door thicknesses from 1 inch to 1-3/8 inches
• Sold as one pair per pack

Compatibility

Designed as an OEM-style replacement top pivot guide for standard residential bi-fold doors with a thickness between 1 inch and 1-3/8 inches.

Installation Notes

Installation is performed by a carpenter or general contractor and requires no special tools beyond a screwdriver or drill. Remove the bi-fold door from the track before fitting the guide to the top edge to ensure proper seating. Confirm door thickness is within the 1-inch to 1-3/8-inch range before installation. Do not force the guide into a track that does not match the 3/4-inch square glide profile.

Technical Specifications

• Glide Size: 3/4 inches square
• Base Size: 3/8 inches
• Base Material: Plastic
• Compatible Door Thickness: 1 inch to 1-3/8 inches
• Quantity: 2 (1 pair)
• Weight: 0.107 pounds
• UPC: 00049793067050

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6705
