Prime-line Products N 6673 Bifold Door Bottom Pivot 2 Pack

Product Description

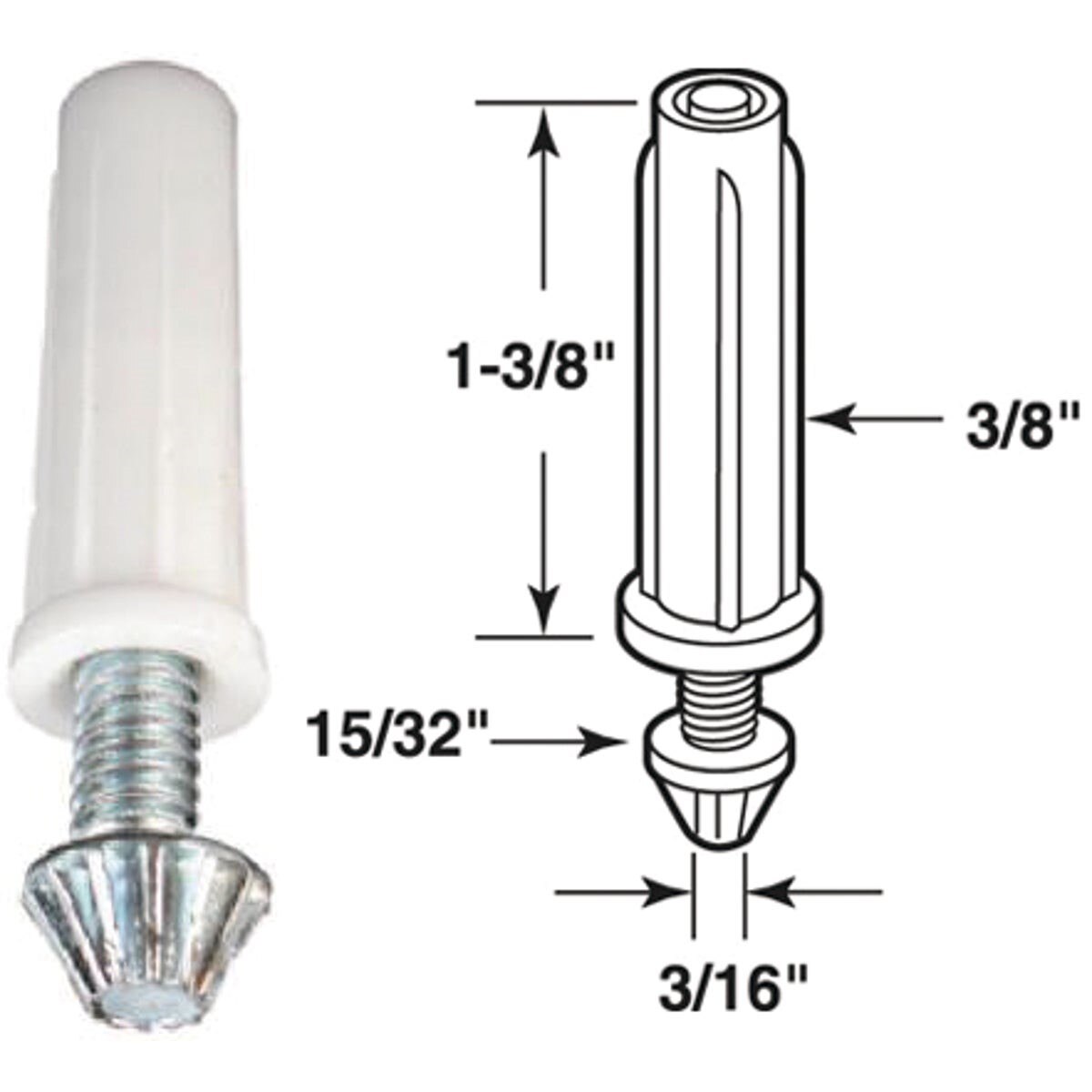

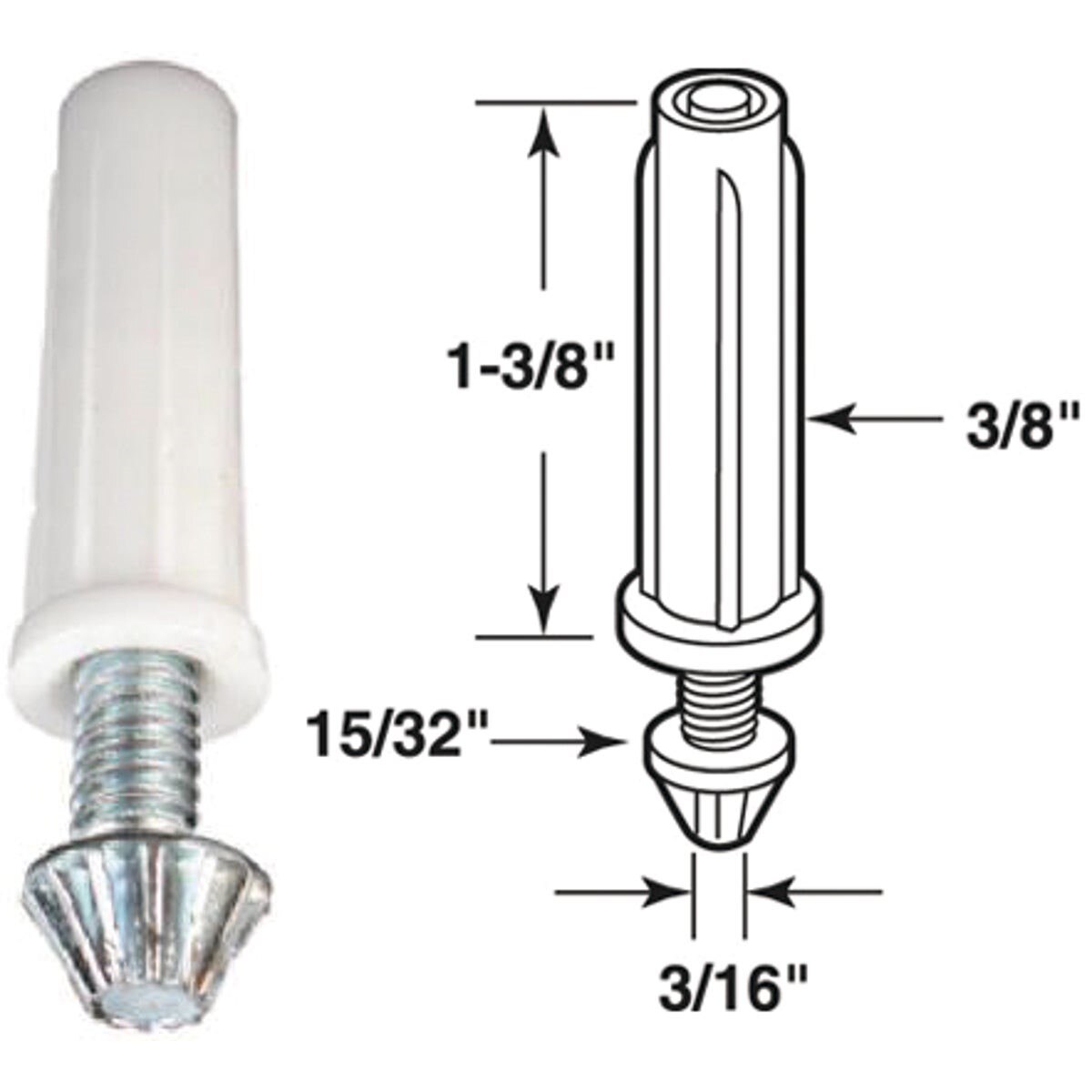

The PRIME-LINE PRODUCTS N 6673 is a bottom pivot assembly for bifold doors, designed to provide a stable and adjustable pivot point at the base of the door panel. The unit features a nylon base with a 3/8 inch diameter and houses an adjustable steel pivot tip with a grooved profile. The pivot bolt measures 1-3/8 inches in length with a 15/32 inch outer diameter. The grooved tip threads in or out to fine-tune door alignment without removing the hardware. This type of hardware is installed by carpenters, general contractors, and maintenance technicians working on residential or light commercial bifold door systems.

This bottom pivot is suited for standard bifold door installations where the existing pivot hardware requires replacement or where a new door panel is being hung. The adjustable design accommodates minor floor-to-header height variations, making it practical for retrofit applications. Each pack contains two pivot assemblies, providing enough hardware for one standard bifold door pair. The nylon base resists corrosion and reduces friction at the floor track interface during door operation.

Key Features

• Grooved steel pivot tip adjusts by threading in or out for door alignment
• Nylon base with 3/8 inch diameter resists corrosion and minimizes floor track wear
• Pivot bolt measures 1-3/8 inches in length with a 15/32 inch outer diameter
• Two pivot assemblies included per pack
• Steel and nylon construction for durability in high-cycle door applications

Compatibility

Designed as an OEM-style replacement bottom pivot for standard residential and light commercial bifold door systems requiring a 3/8 inch diameter grooved tip pivot.

Installation Notes

Installation is performed by carpenters or general maintenance technicians using basic hand tools. Ensure the door panel is safely supported before removing the existing pivot hardware to prevent the panel from falling. Thread the pivot tip to the appropriate height before inserting into the floor bracket, then fine-tune alignment after the door is hung. Follow applicable building and finish carpentry guidelines for bifold door clearance and track alignment.

Technical Specifications

• Pivot Tip Diameter: 3/8 inch
• Pivot Bolt Length: 1-3/8 inches
• Pivot Bolt Outer Diameter: 15/32 inch
• Tip Style: Grooved, adjustable
• Base Material: Nylon
• Pivot Material: Steel
• Quantity per Pack: 2
• Package Weight: 0.111 pounds
• UPC: 00049793066732

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6673
