Prime-line Products N 6584 Bifold Door Bottom Pivot

Product Description

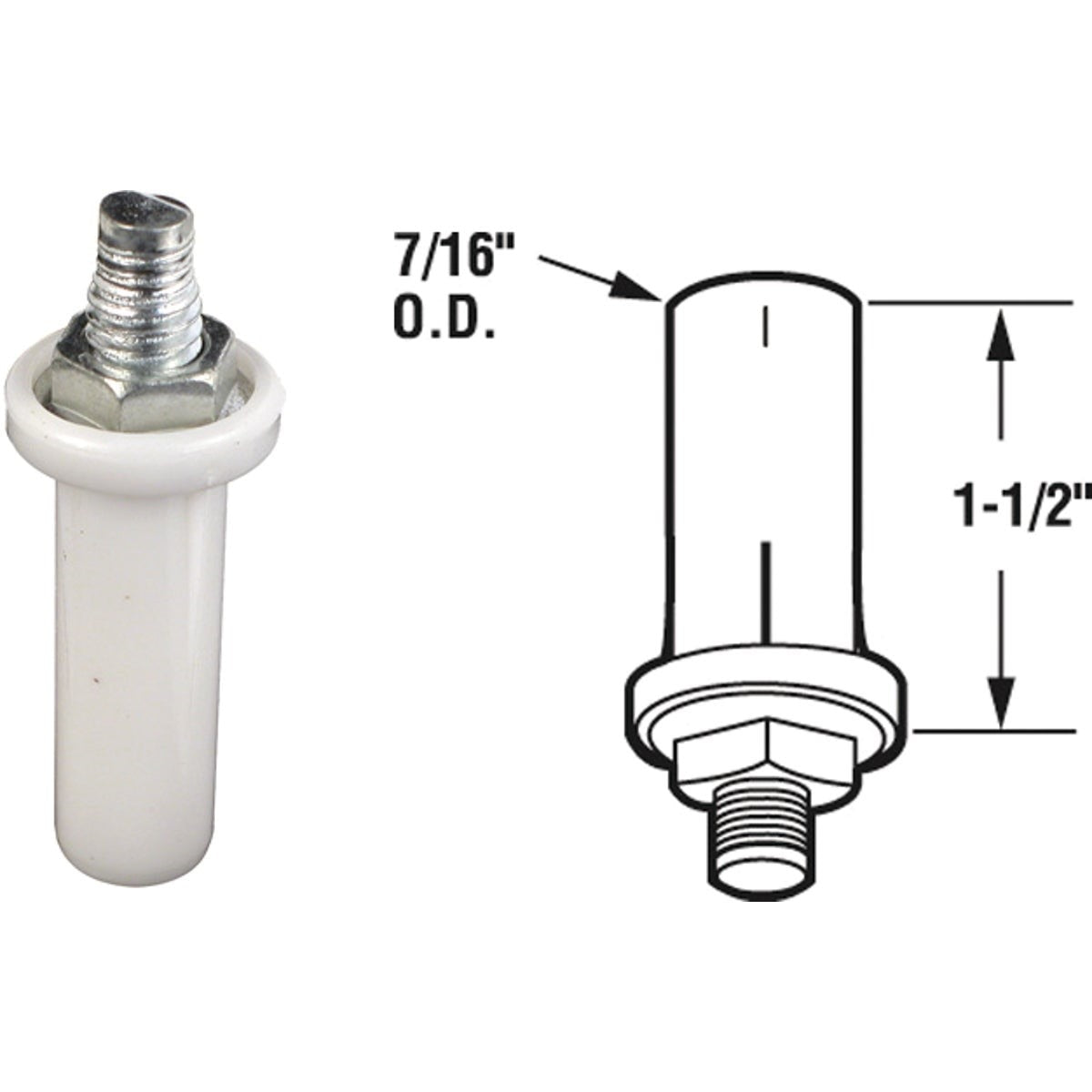

The PRIME-LINE PRODUCTS N 6584 is a bottom pivot guide designed for residential bifold doors. It consists of a 7/16-inch diameter nylon base housing a 3/16-inch steel pivot pin secured with a hex head nut for field adjustment. The nylon base resists wear and reduces friction at the floor track, while the steel pivot provides the load-bearing strength needed for repeated daily use. Licensed tradespeople and skilled DIYers install this pivot as part of a complete bifold door hardware set. It suits doors weighing up to 30 pounds each and accommodates door thicknesses from 1 inch to 1-3/8 inches.

This bottom pivot is suited for standard residential bifold door installations in closets, laundry rooms, and utility spaces. It anchors the lower corner of the door panel into the floor bracket, allowing the door to swing and fold smoothly along its track. The included hex head nut allows installers to fine-tune the pivot position after mounting, which is useful when aligning door panels on uneven floors or in retrofit situations. Sold in a pack of 2, this hardware supports a single bifold door unit requiring one pivot per panel bottom.

Key Features

• 7/16-inch diameter nylon base for low-friction floor contact
• 3/16-inch steel pivot pin for durable load-bearing performance
• Hex head nut allows on-site adjustment after installation
• Fits bifold door thicknesses from 1 inch to 1-3/8 inches
• Rated for doors up to 30 pounds each
• Pack of 2 pivots included

Compatibility

Designed as a replacement or new-installation bottom pivot for bifold doors ranging from 1 inch to 1-3/8 inches in thickness and weighing up to 30 pounds each.

Installation Notes

Installation is a general carpentry or finish hardware task suitable for contractors or experienced DIYers. Remove the door panel from the track before servicing hardware, and ensure the floor bracket is securely anchored before seating the pivot. Use the hex head nut to adjust pivot height and panel alignment after hanging. Follow door manufacturer guidelines and local building codes where applicable.

Technical Specifications

• Base Diameter: 7/16 inches
• Pivot Diameter: 3/16 inches
• Compatible Door Thickness: 1 inch to 1-3/8 inches
• Maximum Door Weight: 30 pounds each
• Material: Nylon and Steel
• Quantity: 2 per pack
• Weight: 0.145 pounds

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6584
