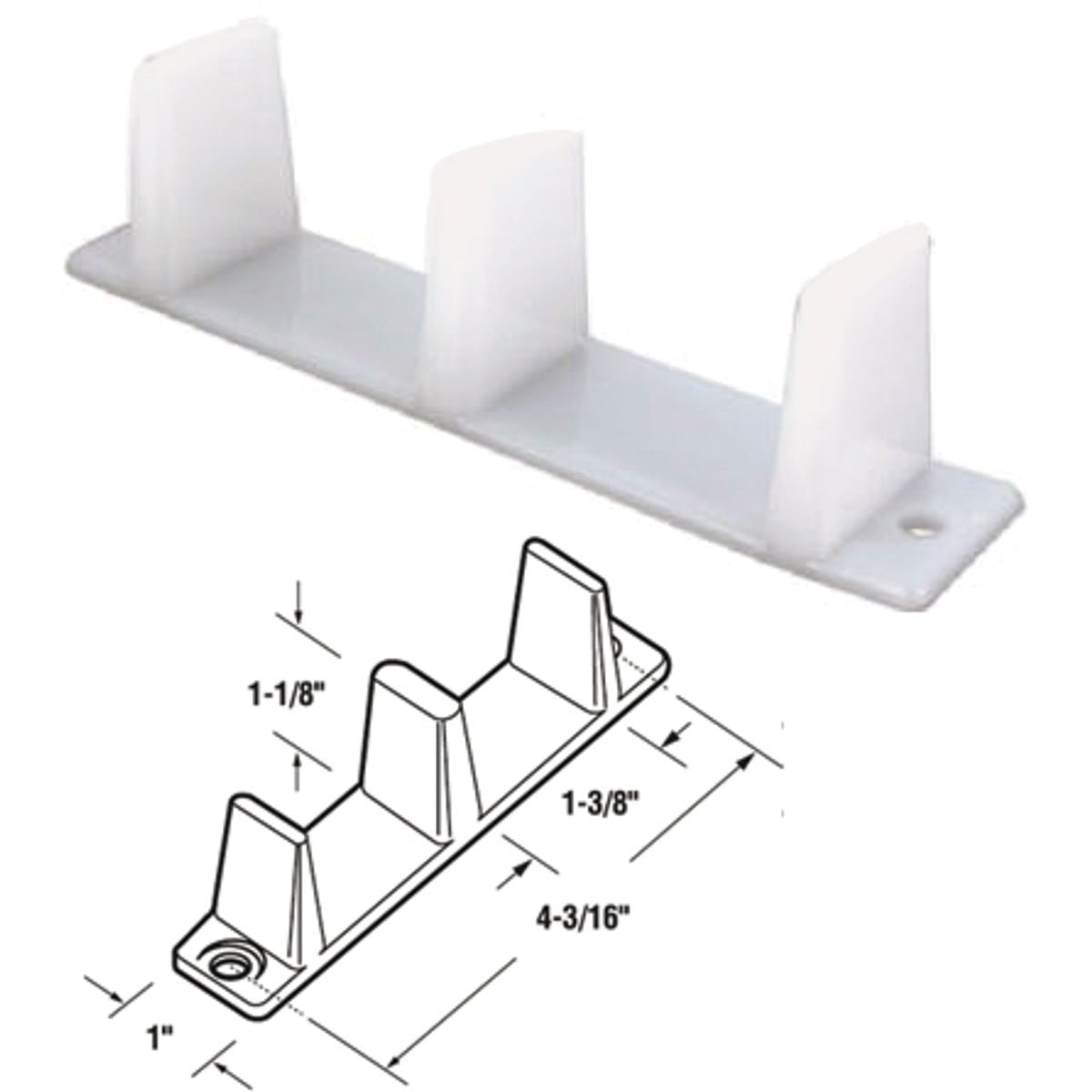

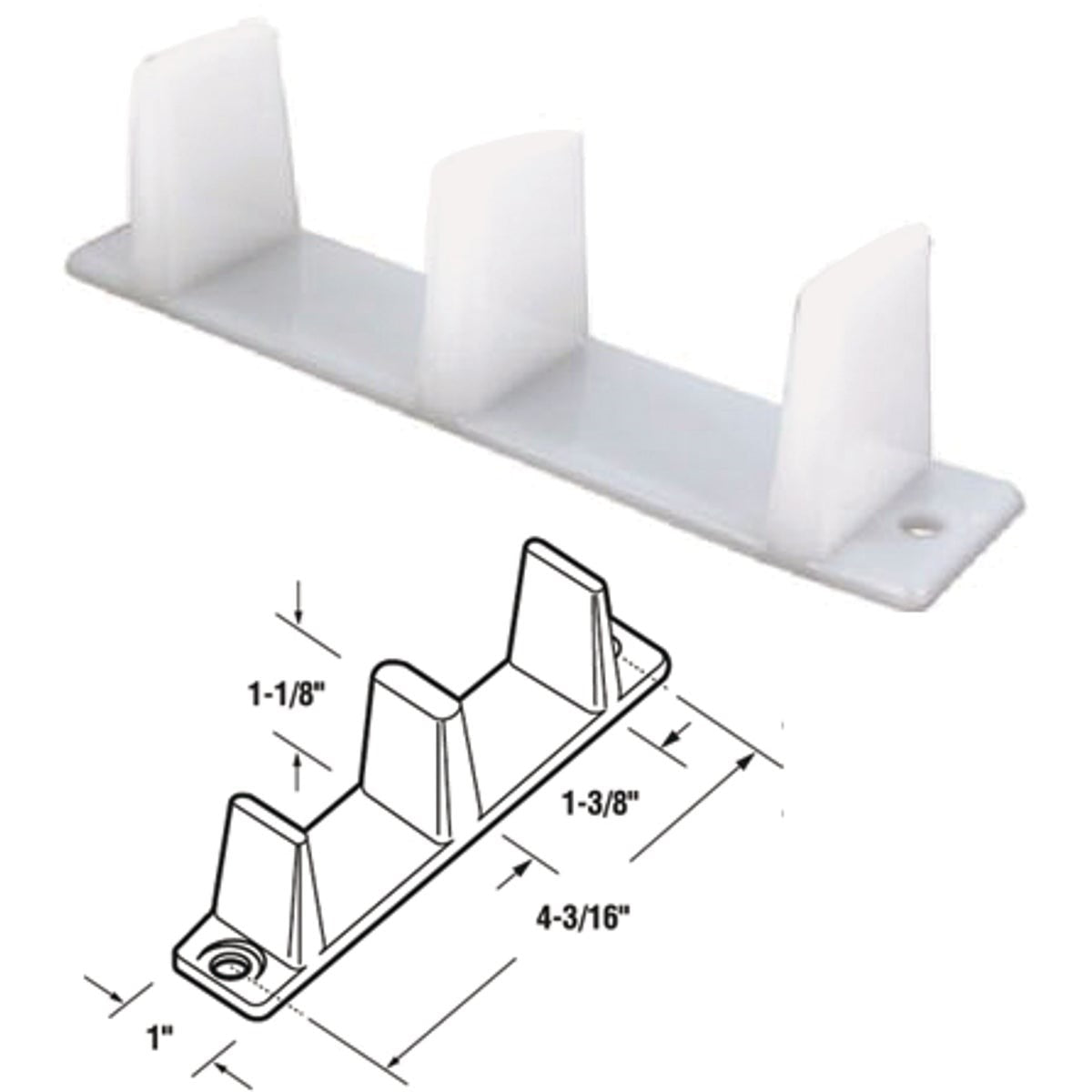

Prime-line Products N 6563 Bypass Door Floor Guide

Product Description

The PRIME-LINE PRODUCTS N 6563 is a bottom mount floor guide designed for bypass wardrobe doors in residential closet installations. Built from nylon, this guide sits at the floor level and keeps sliding bypass doors aligned in their track, preventing lateral movement during operation. It fits doors up to 1.375 inches thick and features a universal design that simplifies sourcing for service calls and remodel work. Installers and general contractors use this part to complete or repair sliding closet door assemblies where the floor guide is missing, broken, or worn. The nylon construction resists corrosion and reduces noise during door travel.

This floor guide is suited for standard residential bypass wardrobe door systems, typically found in bedroom and hallway closets. The universal fit design makes it a practical stock item for property maintenance technicians and finish carpenters who regularly encounter varied door hardware across different installations. Sold as a 2-count pack, making it convenient for multi-door closet openings that require guides at multiple floor positions.

Key Features

• Bottom mount design keeps bypass doors tracking correctly at floor level
• Nylon construction resists corrosion and reduces operational noise
• Fits doors up to 1.375 inches thick
• Universal design compatible with a wide range of bypass wardrobe door systems
• Includes 2 guides per pack

Compatibility

Designed as an OEM-style replacement floor guide for standard residential bypass wardrobe sliding door systems with door thickness up to 1.375 inches.

Installation Notes

Installation is typically performed by carpenters, general contractors, or maintenance technicians. Before installation, ensure the door panels are removed from the overhead track to allow safe access to the floor mounting position. The guide is fastened to the floor at the center point between the two bypass door panels. Verify the guide slot aligns correctly with the bottom edge of each door panel before securing to prevent binding or misalignment during operation.

Technical Specifications

• Material: Nylon
• Maximum Door Thickness: 1.375 inches
• Mount Type: Bottom mount
• Package Quantity: 2 count
• Weight: 0.151 pounds
• UPC: 00049793065636

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6563
