Prime-line Products N 6560 Bypass Door Bottom Guide 2ct

Product Description

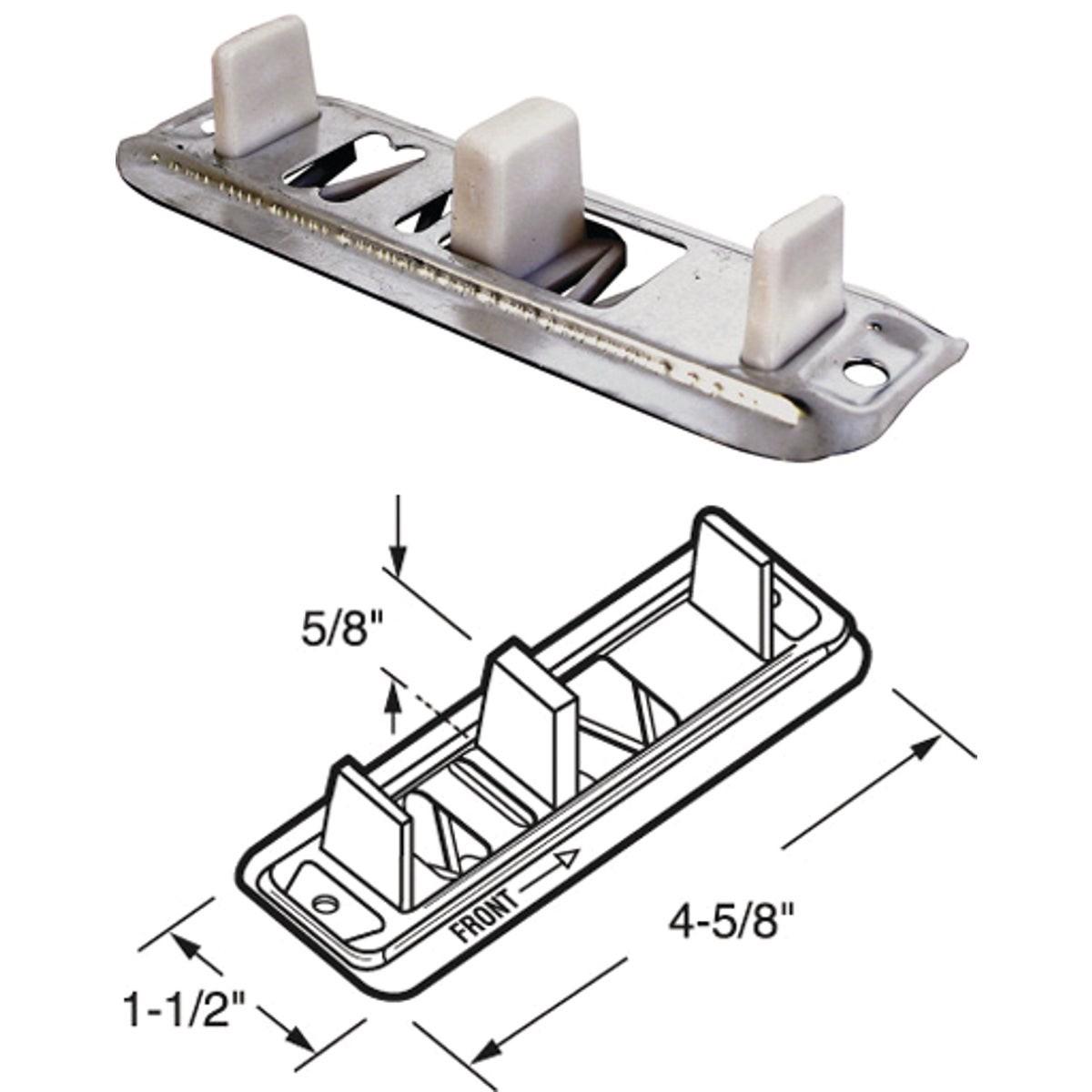

The PRIME-LINE PRODUCTS N 6560 is an adjustable steel base bypass door bottom guide designed to keep sliding bypass doors aligned and tracking smoothly along the floor. The steel base provides durable structural support, while nylon tips protect the floor surface and reduce friction during door operation. At 0.625 inches in height, this low-profile guide fits a wide range of door thicknesses from 0.75 inches up to 1.375 inches, making it adaptable for common residential interior bypass door installations. Mounting hardware is included. This guide is typically installed by finish carpenters, handymen, or experienced DIYers during door hardware replacement or new installation projects.

The N 6560 is suited for residential interior bypass door applications, including closet doors and room dividers that use a floor-mounted bottom guide track system. The adjustable design accommodates varying door panel thicknesses without requiring additional hardware. Each pack contains 2 guides, covering a standard two-panel bypass door setup in a single purchase.

Key Features

• Adjustable design fits door thicknesses from 0.75 inches to 1.375 inches
• Steel base construction for lasting durability
• Nylon tips protect flooring and reduce wear during door operation
• Low-profile height of 0.625 inches for discreet floor-level installation
• Mounting hardware included for straightforward installation
• 1-year manufacturer warranty

Compatibility

Designed as an OEM-style replacement or new-installation bottom guide for residential bypass sliding doors with panel thicknesses between 0.75 inches and 1.375 inches.

Installation Notes

Install with the door panels removed or fully raised out of the upper track to allow safe floor-level access. Secure the steel base to the floor or track channel using the included hardware, ensuring the guide is centered on the door panel edge. Verify the nylon tips make proper contact with the door panel without binding before reinstalling the doors. No special trade licensing is required, though finish carpentry experience is recommended for best alignment results.

Technical Specifications

• Material: Steel base with nylon tips
• Door Thickness Range: 0.75 inches to 1.375 inches
• Guide Height: 0.625 inches
• Quantity per Pack: 2
• Weight: 0.234 pounds
• Hardware Included: Yes
• Warranty: 1 year
• UPC: 00049793065605

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: N 6560
