Prime-line Products H 3534 Casement Window Crank Handle

Product Description

The PRIME-LINE PRODUCTS H 3534 is a bronze die-cast crank handle designed for casement windows. It provides the mechanical leverage needed to open and close casement window sashes smoothly, converting the rotational force of the crank into linear operator movement. The die-cast bronze construction offers durability in high-contact hardware applications. With a projection of 2.6875 inches, the handle delivers effective torque for window operation. One handle is included per pack. This type of hardware is typically installed by glazing contractors, general contractors, or experienced property maintenance technicians.

This handle is suited for residential and light commercial casement window applications where the original crank handle has worn, broken, or been lost. The universal design broadens its fit across a range of casement window operator systems. It is appropriate for single-hung or casement-style window frames that use a standard crank-driven operator mechanism. Installation requires no specialized tools in most cases, making it accessible for maintenance professionals and qualified DIYers working on window hardware replacement.

Key Features

• Die-cast bronze construction for durability in repeated-use hardware applications
• Universal design for broad casement window operator compatibility
• 2.6875-inch projection provides effective torque leverage for opening and closing
• Sold as a single handle per pack — straightforward one-for-one replacement
• Crank-style mechanism suits standard casement window operator systems

Compatibility

Designed as an OEM-style replacement crank handle for residential and light commercial casement windows using standard crank-driven operator mechanisms.

Installation Notes

Installation is performed by glazing professionals, window repair technicians, or qualified maintenance staff. Before replacing the handle, ensure the window sash is closed and any locking hardware is disengaged. The handle typically fastens to the operator shaft with a set screw or retaining clip — confirm the attachment method on the existing operator before ordering. Follow all applicable local building codes when performing window hardware service.

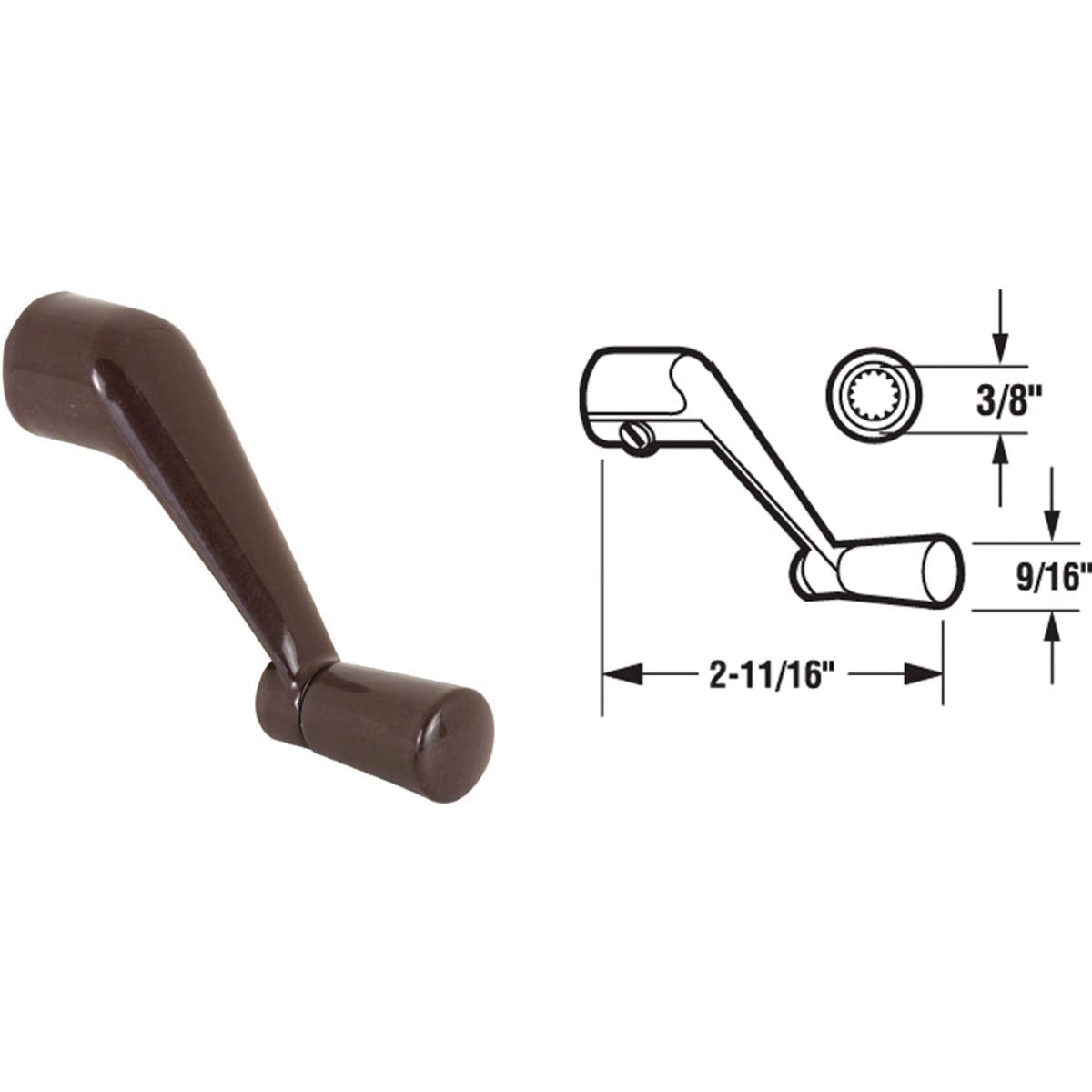

Technical Specifications

• Material: Bronze Die-Cast
• Projection: 2.6875 inches
• Weight: 0.173 pounds
• Quantity per Pack: 1
• UPC: 00049793035349

Standard Information

• Brand: PRIME-LINE PRODUCTS
• Manufacturer Part Number: H 3534
