Prime Line Products D 1594 Patio Door Roller Assembly 6pk

Product Description

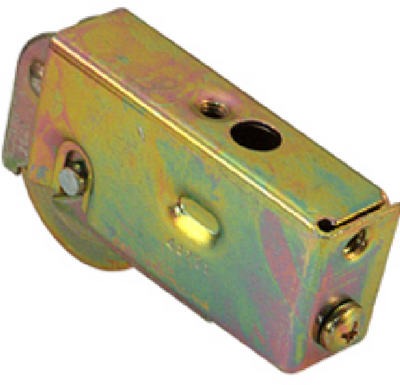

The PRIME LINE PRODUCTS D 1594 is a rear-adjusting roller assembly designed for sliding patio doors. It features a 1.5-inch concave or grooved steel ball bearing roller housed in a plain back housing measuring 0.6875 inches wide, 1.25 inches tall, and 2.375 inches long. The rear adjustment design allows for height tuning without removing the door panel. A 1/4-20 threaded mounting hole on the back end provides the primary mount point, with a 10-32 threaded optional-use hole on the top for additional fastening flexibility. This assembly is installed by glaziers and general contractors during door repair or replacement service on residential sliding patio door systems. Sold in a package of 6.

This roller assembly is suited for residential sliding patio door applications where the existing roller hardware has worn, corroded, or broken. It fits doors that ride in a bottom track and require a compact rear-adjusting housing. The plain back housing profile accommodates a range of door frame pocket depths. Compatible manufacturers include Daryl, Lenahan, and Patio Magic, as well as a variety of other sliding patio door manufacturers that use a similar roller pocket configuration. Install technicians will find the dual threaded hole options useful when working with varying door frame hardware layouts.

Key Features

• 1.5-inch concave or grooved steel ball bearing roller for smooth, low-friction door travel
• Plain back housing: 0.6875 inches wide, 1.25 inches tall, 2.375 inches long
• Rear-adjusting design allows height adjustment from the back end without full door removal
• 1/4-20 threaded mounting hole on the back end for primary fastening
• 10-32 threaded optional-use hole on top for secondary or supplemental mounting
• Sold in a package of 6 units per order

Compatibility

Compatible with sliding patio doors manufactured by Daryl, Lenahan, and Patio Magic, and a variety of other sliding patio door manufacturers that use a rear-adjusting roller assembly with a comparable housing size and roller pocket configuration.

Installation Notes

Installation is typically performed by a glazier or experienced general contractor. Before servicing the door roller, lift and remove the sliding panel from the track and lay it on a padded flat surface to avoid glass damage. Confirm the replacement roller housing dimensions match the existing pocket in the door frame before fastening. Secure all mounting screws fully before reinstalling the door panel and testing smooth travel along the track.
