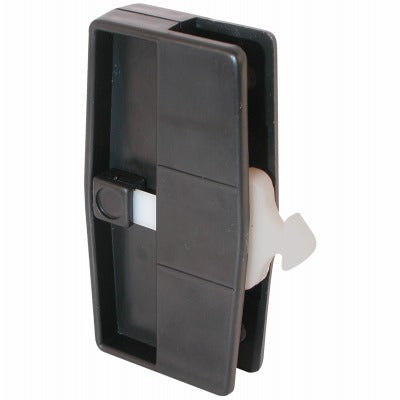

Prime Line Products a 109 Sliding Screen Door Handle Latch

Product Description

The PRIME LINE PRODUCTS A 109 is a sliding screen door handle and latch assembly designed for patio door applications. The unit includes both an inside pull and an outside pull, making it a complete replacement handle set. The spring-loaded nylon latch rotates up and down to engage the door keeper, and a security lock allows the latch to be locked from the inside. The part is non-handed, meaning it installs on either the left- or right-side mounting without modification. Mounting holes are spaced 3 inches on center for straightforward alignment during installation.

This handle and latch assembly is suited for use on sliding screen doors with a door frame thickness of 0.5 inches. It is specified for Columbia patio doors and fits a variety of other patio door manufacturers that share the same frame thickness and hole spacing. Typical applications include residential patio door screen replacements where the original handle has worn, broken, or lost its latching function. Packaged in retail card format, sold in a package of 6 units.

Key Features

• Non-handed design installs on left- or right-side doors without modification
• Includes both inside pull and outside pull in one assembly
• Spring-loaded nylon latch rotates up and down to engage the door keeper
• Inside security lock allows latch to be secured from the interior
• Mounting holes spaced 3 inches on center for standard alignment
• Fits 0.5 inch thick door frames

Compatibility

Designed for use on 0.5 inch thick Columbia sliding screen doors and a variety of other patio door manufacturers sharing the same frame thickness and 3 inch on-center mounting hole spacing.

Installation Notes

Installation is typically performed by a window and door technician or experienced general contractor. Disengage the screen door from the track before beginning handle replacement. Use a standard screwdriver to remove the existing fasteners at the 3 inch on-center mounting holes before fitting the new assembly. Verify that the latch engages the existing keeper correctly before returning the door to service.
