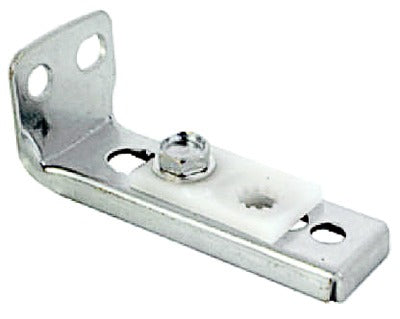

Prime Line Products 162017 Floor Mount Pivot Bracket

Product Description

The PRIME LINE PRODUCTS 162017 is a floor-mounted bottom pivot bracket designed for bi-fold door installations. It mounts at the base of the door opening and provides the lower pivot point that keeps the door aligned and operating smoothly on its track. The bracket features a stamped steel base for durability and includes an adjustable nylon bushing that allows for minor alignment corrections during installation or after settling. This part is intended for use with the Prime Line part N 6707 pivot pin. It is typically installed by carpenters, remodelers, or experienced DIYers during door replacement or hardware retrofit work.

This bracket is used on Johnson Hardware bi-fold doors and is compatible with a variety of other bi-fold door manufacturers that use a standard floor-mount bottom pivot configuration. It is suited for residential interior applications including closet doors, laundry room doors, and utility room doorways. Sold in a package of 6 units, making it practical for multi-door projects or service inventory stocking.

Key Features

• Stamped steel base provides structural rigidity at the floor pivot point
• Adjustable nylon bushing allows for post-installation alignment tuning
• Compatible with Johnson Hardware bi-fold systems and other standard bi-fold door manufacturers
• Designed for use with Prime Line part N 6707 pivot pin
• Sold in a package of 6 units for multi-door applications

Compatibility

Designed for use on Johnson Hardware bi-fold doors and a variety of other bi-fold door manufacturers that use a floor-mounted bottom pivot configuration. Intended for use with the Prime Line part N 6707 pivot.

Installation Notes

Installation is typically performed by a carpenter or skilled remodeler. Before beginning, ensure the door panel is fully removed from the track and the work area is clear. The bracket should be fastened securely to the floor substrate at the correct position per the door manufacturer's layout dimensions. Pair this bracket with the correct matching pivot pin to ensure proper door operation and alignment.
