Prime-line MP7211 Drawer Slide Kit Self-closing 17.75 in

Product Description

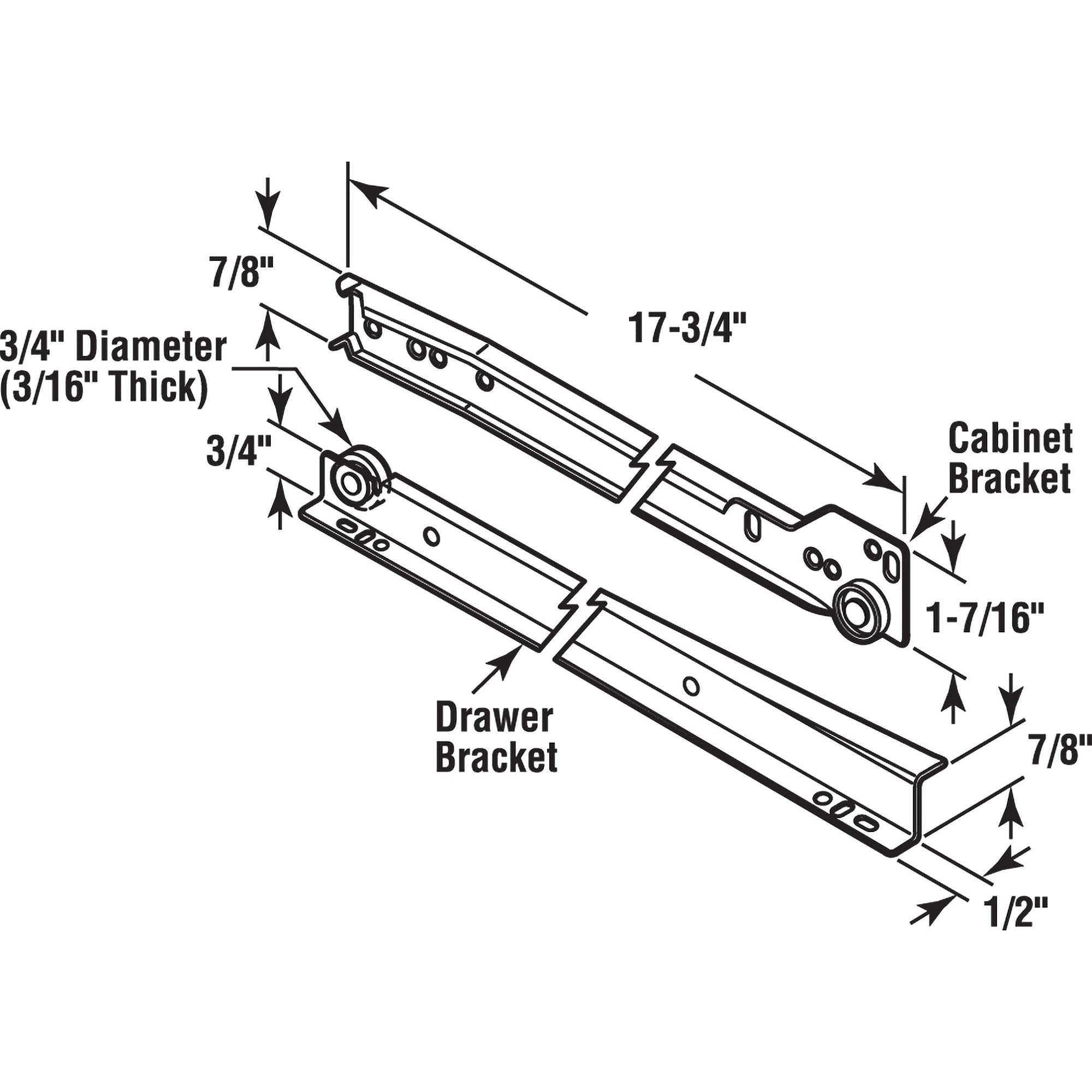

The PRIME-LINE MP7211 is a replacement drawer slide kit designed for bottom-mounted and side-mounted drawer systems in cabinets with an 18-inch depth. The kit includes a pair of steel tracks finished in white powder coat, self-lubricating plastic rollers, and all necessary fasteners. Tracks measure 17.75 inches in length and feature a self-closing mechanism that engages at the final 2.5 inches of travel during closing. Maximum safe load capacity is 75 pounds, including the weight of the drawer itself. This kit is suited for installation by carpenters, cabinet installers, and general maintenance trades working on residential or light commercial cabinetry.

The MP7211 kit fits most bottom-mounted and side-mounted drawer systems in 18-inch-deep cabinets. It is compatible with face-frame and frameless cabinet construction. Required clearances for proper fit are 0.5 inches on the left and right sides of the drawer, 0.25 inches at the bottom, and 0.625 inches at the top. A positive stop in the closed position and a double stop in the extended position prevent the drawer from pulling free of the tracks. Installation instructions are included with the kit.

Key Features

• Self-closing design activates at the final 2.5 inches of closing travel
• 75-pound maximum safe load capacity, including the drawer
• Steel tracks with white powder coat finish and self-lubricating plastic rollers
• Positive stop in closed position and double stop in open position
• Compatible with face-frame and frameless cabinet construction
• All mounting fasteners included; installation instructions provided

Compatibility

Fits most bottom-mounted and side-mounted drawer systems in cabinets with an 18-inch drawer depth. Compatible with both face-frame and frameless cabinet configurations. If the cabinet lacks a rear bracket or the existing bracket is damaged, PRIME-LINE part R 7240 is recommended as a back bracket accessory.

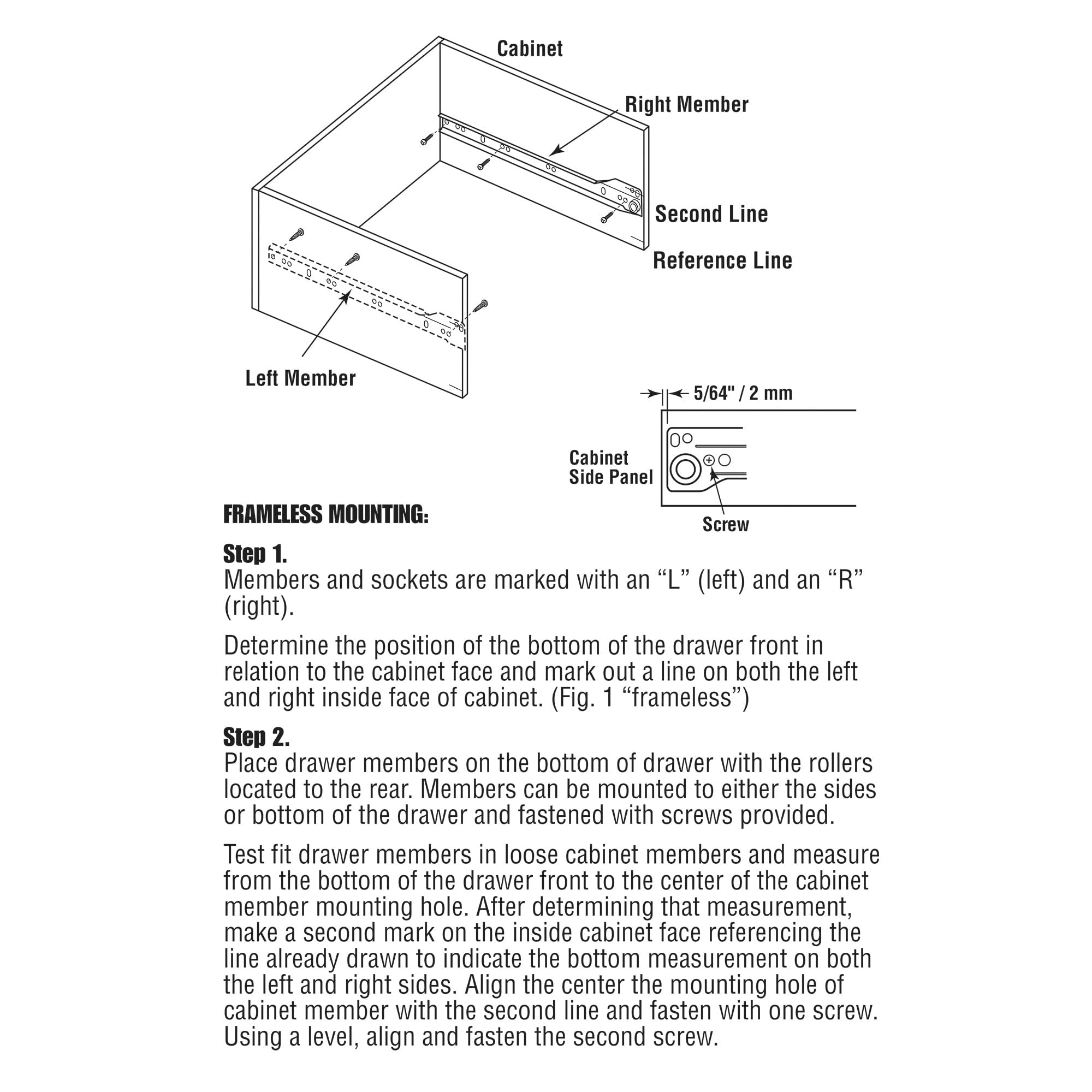

Installation Notes

Power tools are not required, but a drill and bit set will speed up fastener installation. Confirm cabinet drawer depth is 18 inches before installation and verify all required clearances before mounting tracks. Remove the drawer completely before servicing or replacing slides. Follow the included instructions and local building or finish-carpentry standards where applicable.
