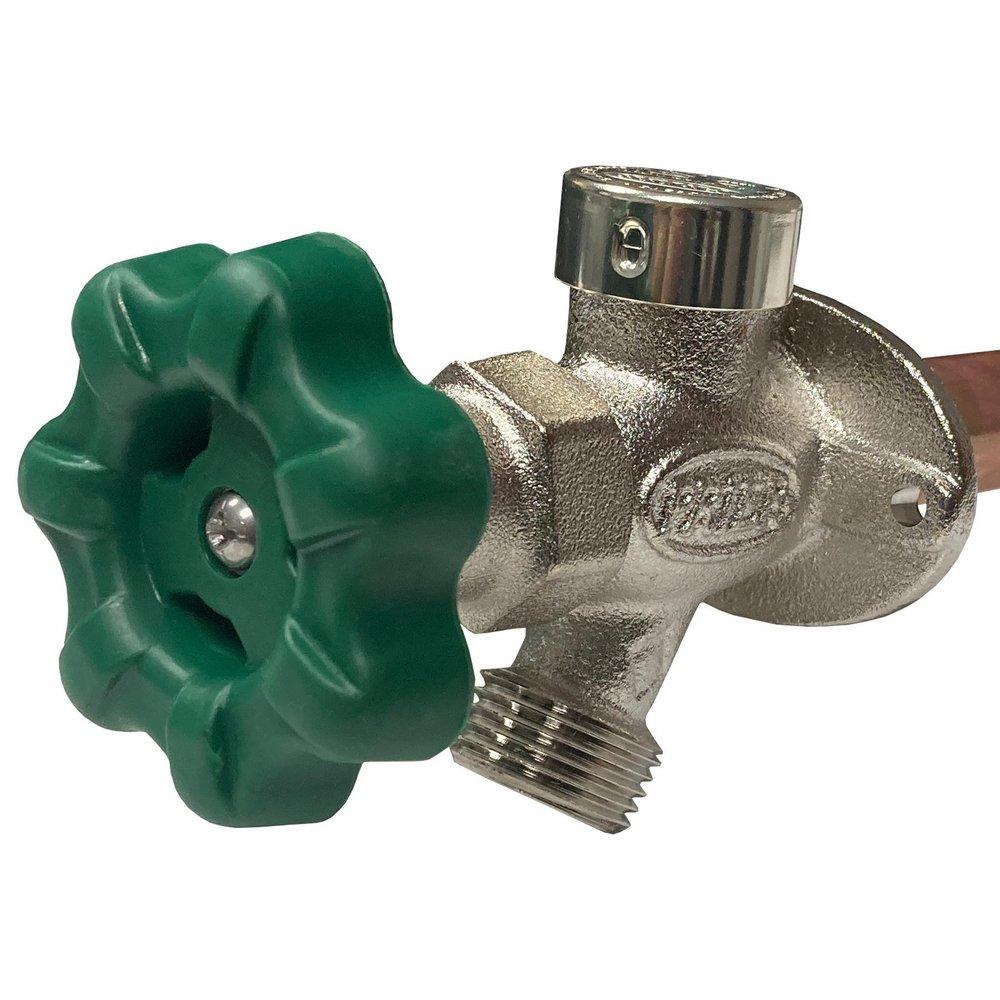

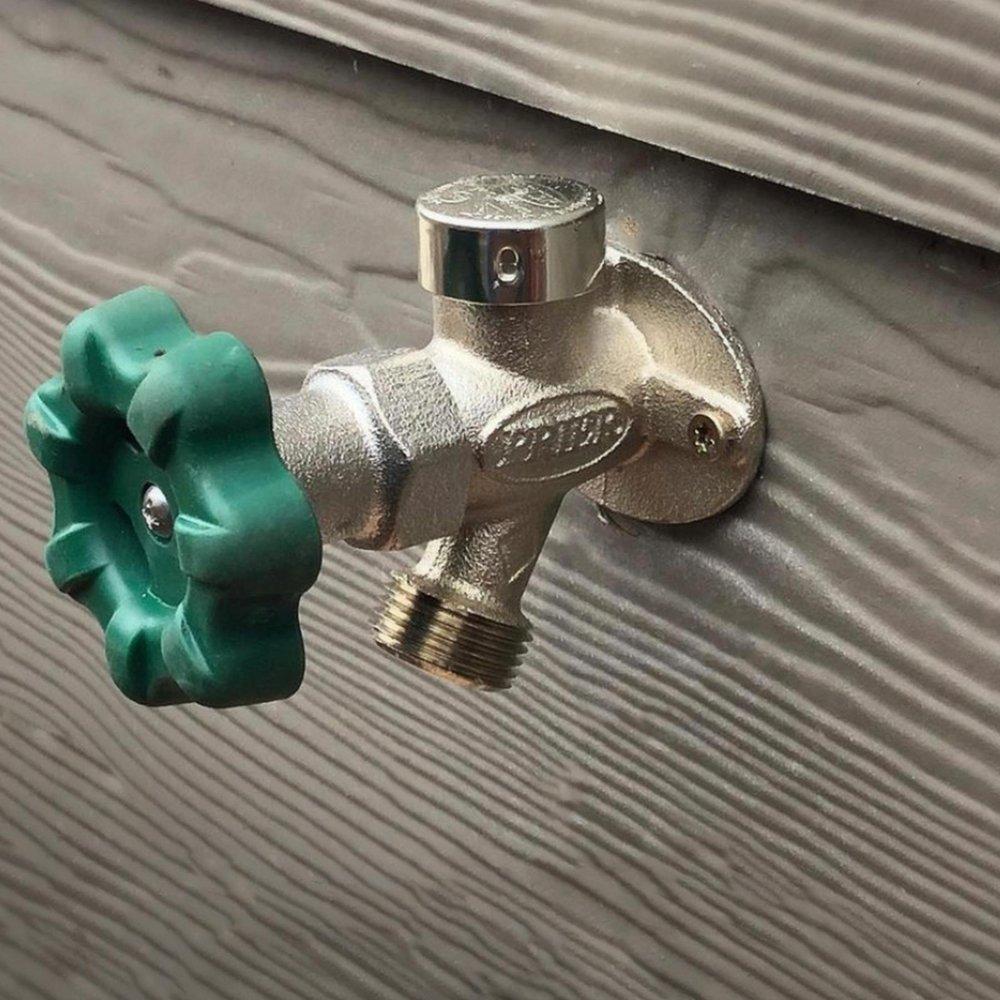

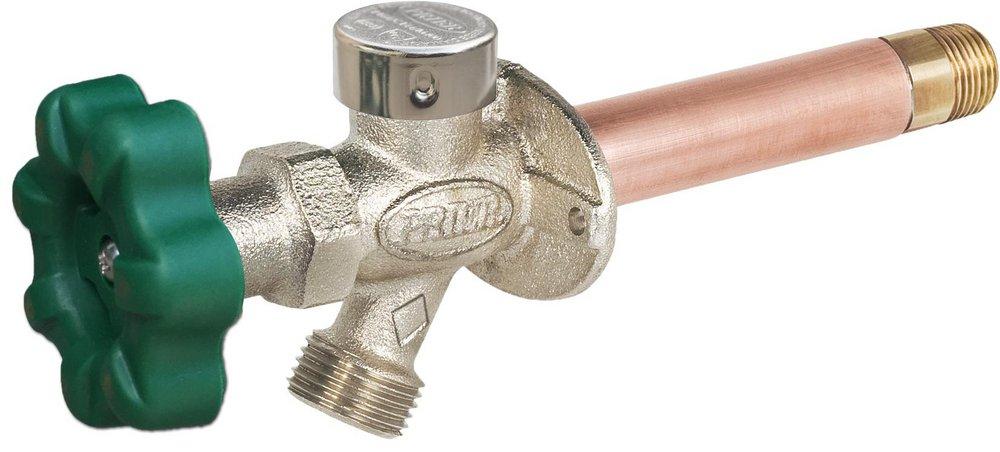

PRIER Products P-164T06 P-164 Series 6 x 3/4 x 1/2 in. MIP x FIP Residential Quarter-Turn Anti-Siphon Wall Hydrant

Product Description

The PRIER Products P-164T06 is a reliable residential wall hydrant designed for outdoor applications. This quarter-turn anti-siphon model combines ease of use with robust construction. It features a half-inch inlet with a male iron pipe and female iron pipe connection. The hydrant is made from solid brass, which assures durability and resistance to corrosion.

• Quarter-turn operation for easy opening and closing
• Anti-siphon vacuum breaker to prevent backflow
• Enclosed screw holes for secure and easy installation

Product Highlights

This hydrant includes a large cast brass flange that is pitched to allow drainage. It has a soft grip handle for comfortable operation and can easily convert to loose key operation with a brass female stem cap. The design ensures effective drainage and minimizes water retention.

Product Information

Standard Information

• Application: Residential
• Country of Origin: US

Technical Specifications

• End Style: MNPT x FNPT
• Length: 6 inches insertion
• Material: Solid brass
• Finish: Satin nickel plated
• Mfg Standards/Approvals: ASSE 1019, cUPC Listed
• Nominal Size: 1/2 inch
• Wall Opening: 90 degrees quarter turn
• Package Height: 2.5 inches
• Package Length: 13.375 inches
• Package Width: 3.25 inches
