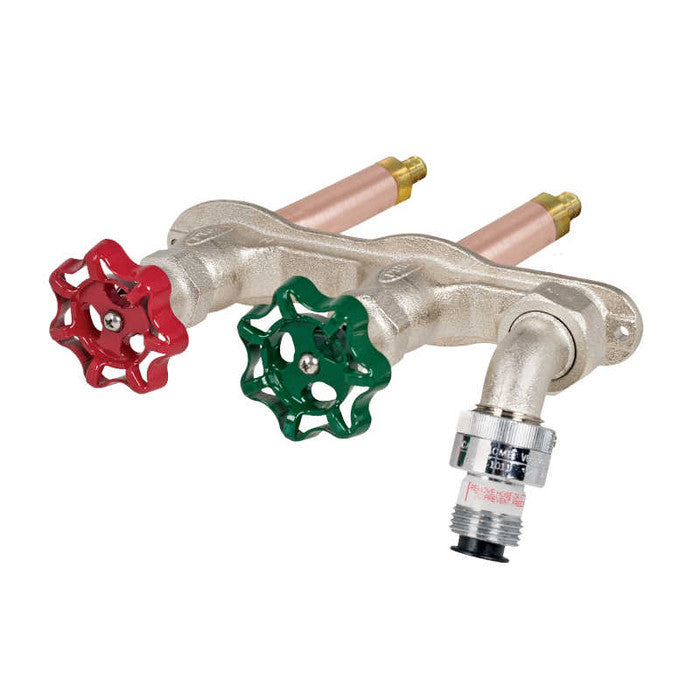

Prier Products c108x10 Anti-siphon Wall Faucet 10 Inches

Product Description

The PRIER PRODUCTS c108x10 is a hot and cold anti-siphon hose thread wall faucet designed for residential and light commercial plumbing installations. The unit features a 1/2 inch PEX inlet with a blending valve that mixes hot and cold supply lines at the wall, delivering tempered water at the hose bib. A built-in anti-siphon vacuum breaker with backflow check valve prevents contaminated water from being drawn back into the potable supply. The solid brass body, valve stem cap, seat, and stem ends provide corrosion resistance and long service life. The adjustable spigot supports both vertical and horizontal installation orientations, adding flexibility for rough-in conditions.

This wall faucet is suited for exterior wall installations where both hot and cold water supply lines are accessible. The 10 inch length accommodates standard wall thicknesses common in residential construction. The satin nickel plated finish resists tarnish in outdoor and semi-outdoor environments. Five full threads on the hose connection ensure a secure hose attachment. Powder coated metal handles are standard, and a keyless option is available for the hot side to restrict unsupervised access. An installation template is included to simplify layout and drilling during rough-in. Licensed plumbers perform this installation in new construction and retrofit applications.

Key Features

• Anti-siphon vacuum breaker with backflow check valve protects potable water supply
• 1/2 inch PEX inlet with hot and cold blending valve for tempered output
• Adjustable spigot allows vertical or horizontal installation orientation
• Solid brass body, valve stem cap, seat, and stem ends for durability
• Satin nickel plating for long-term corrosion resistance
• Stainless steel seat washer screw and handle screw
• Installation template included for accurate rough-in layout

Compatibility

Designed as an OEM-style replacement or new-installation wall hydrant for residential and light commercial plumbing systems with 1/2 inch PEX hot and cold supply lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off both the hot and cold water supply lines and relieve system pressure before beginning work. The adjustable spigot should be positioned and secured before final wall closure. Do not overtighten PEX fittings; follow fitting manufacturer torque guidance and applicable code requirements.

Technical Specifications

• Length: 10 inches
• Inlet Size: 1/2 inch PEX
• Faucet Type: Wall Hydrant
• Body Material: Solid Brass
• Finish: Satin Nickel Plated
• Hose Thread Engagement: 5 full threads
• Backflow Protection: Anti-siphon vacuum breaker with backflow check valve

Standard Information

• Brand: PRIER PRODUCTS
• Manufacturer Part Number: c108x10
