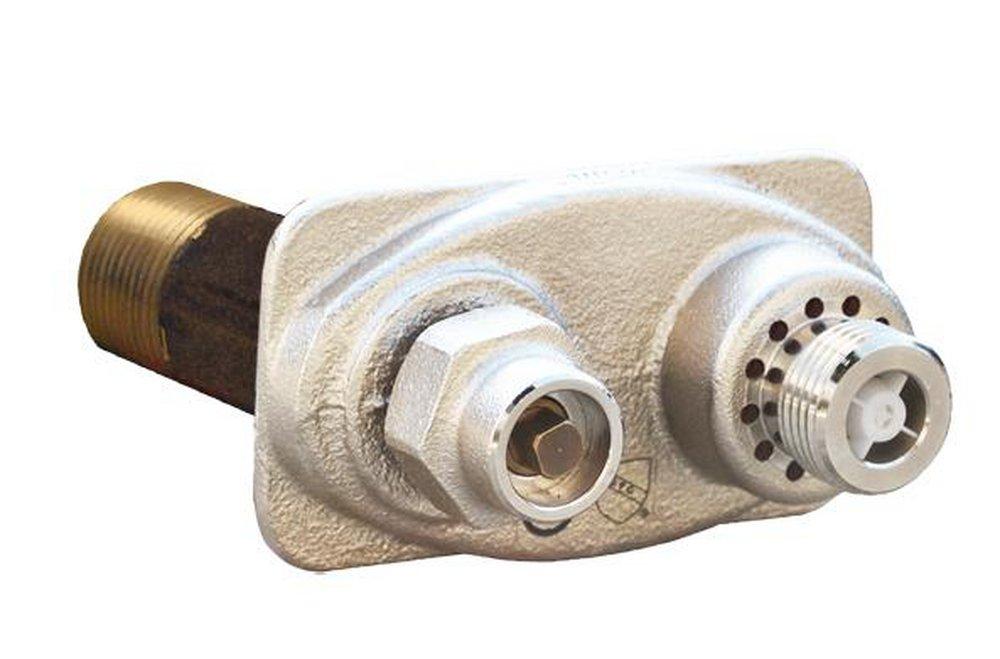

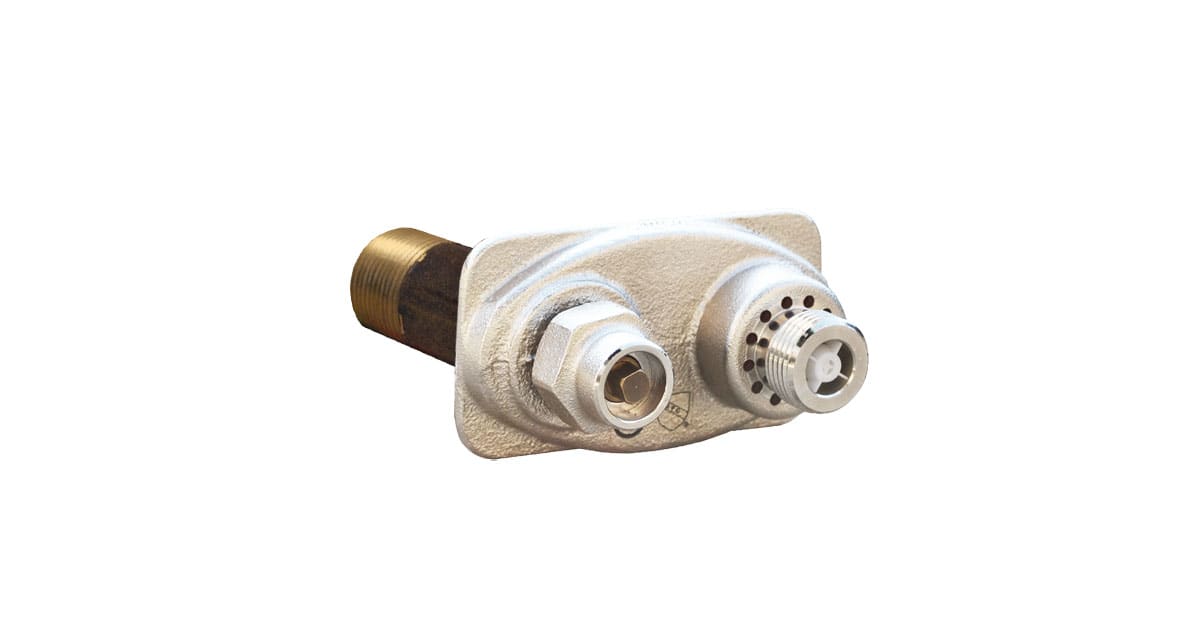

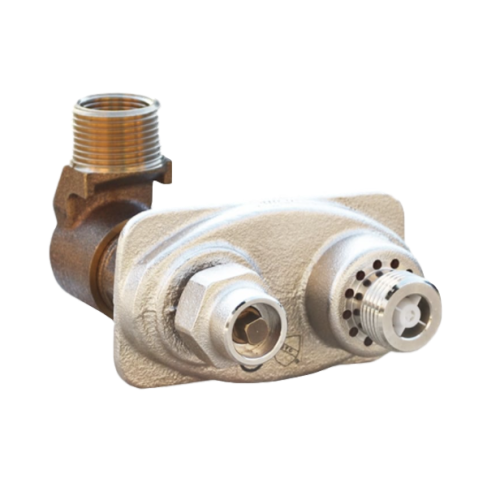

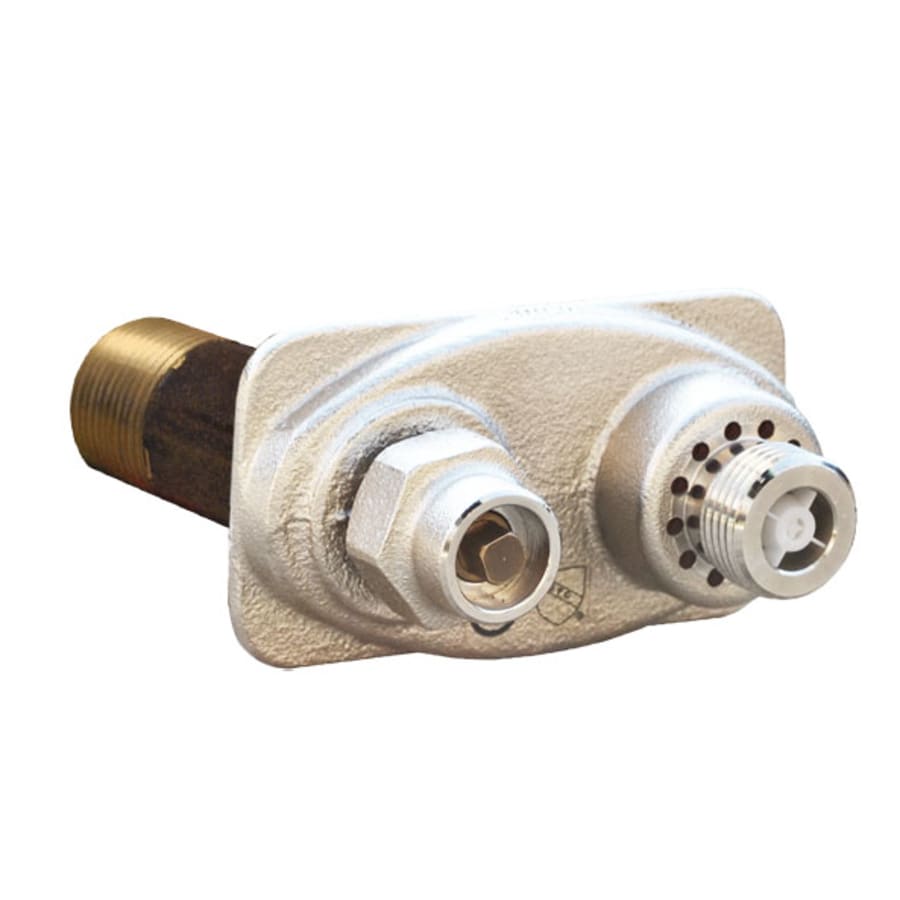

Prier Products C-633NCC Wall Hydrant 1 x 3/4 in. MPT x FPT (Close-coupled 2 in.) PC633NCC

Product Description

Prier Products C-633NCC is a commercial wall hydrant designed for outdoor and mild-climate installations. The unit features heavy brass piping and a solid brass stem with a patented triple-seal positive shut-off stem, automatic self-draining when a hose is attached, and two backflow check valves plus an anti-siphon vacuum breaker meeting ASSE 1019 and 1052. It provides high flow and can be installed horizontally or vertically.

• High flow: 18 gallons per minute at 25 PSI with self-draining design
• Backflow protection: two check valves and anti-siphon vacuum breaker (ASSE 1019 and 1052)
• Construction: heavy brass piping, solid brass stem, patented triple-seal positive shut-off

Product Highlights

Commercial grade, self-draining wall hydrant with ASSE-approved backflow prevention

Product Information

Standard Information

• Brand: PRIER PRODUCTS
• Manufacturer Part Number: C-633NCC
• Country of Origin: United States

Technical Specifications

• Brand: Prier Products
• Manufacturer Part Number (MPN): C-633NCC
• Replacement Part Number: PC633NCC
• Model: C-633NCC
• Connection / Inlet: 1 in. MPT x 3/4 in. FPT (product title/alternate); some sources list MIP/FIP - see notes
• Insertion Length: 2 in. close coupled
• Flow Rate: 18 gallons per minute at 25 PSI
• Material: Heavy brass piping and solid brass stem
• Shut-off: Patented triple-seal positive shut-off stem
• Operation: Vandal-proof keyless operation
• Backflow Protection: Two backflow check valves and anti-siphon vacuum breaker
• Approvals / Certifications: ASSE 1019, ASSE 1052, UPC
• Installation: Horizontal or vertical
• Finish: Satin nickel plated
• Country of Origin: Made in USA
• Height: 2.5 in
• Length: 4.375 in
• Width: 4.75 in
• Product Weight: 2 lbs
• Approved for Commercial Use: Yes
• Drainage: Self-draining (automatically drains when hose is attached)
• Cycle Tested: Tested to 250,000 cycles
• UPC: 670210307109
