Prier P-164X06 Products - 1/2 Inch Crimp PEX Handle Operated Quarter-Turn Wall Hydrant - 6 Inch Insertion

Product Description

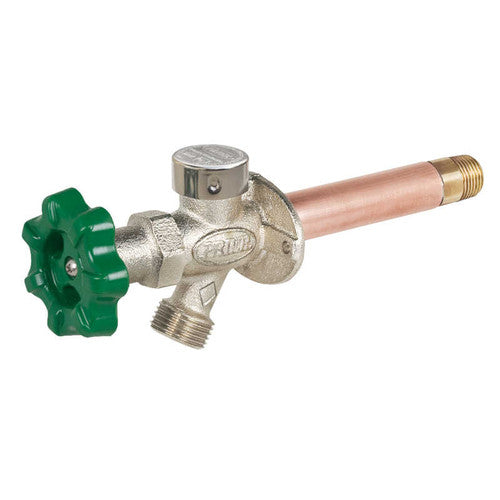

The PRIER P-164X06 wall hydrant is designed for providing water in areas with freezing temperatures. This heavy-duty plumbing product features a soft grip operating handle for easy quarter-turn operation and a compression type seal. Designed to stand the test of time, this hydrant offers solid brass construction for lasting durability.

• Solid brass construction
• 6 Inch Stem
• Soft grip handle with quarter-turn operation

Product Highlights

This wall-mounted hydrant is ideal for residential plumbing, offering a reliable, freezeless water source with easy operation.

Product Information

Standard Information

• Brand: PRIER
• Manufacturer Part Number: P-164X06
• Country of Origin: USA

Technical Specifications

• Condition: New
• Product Category: Plumbing - Sill Cocks/Hydrants
• UPC: 670210308540
• Type: Hydrant
• Product Line: P-164
• Installation Type: Wall Mount
• End 1 Connection Type: Crimp PEX
• End 1 Connection Size: 1/2 Inch
• Material: Brass
• Exterior Finish: Rubber
• Inlet Connection Type: Cross Linked Polyethylene
• Outlet Connection Type: PEX
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Specification Met: ASSE 1019-C approved
• Manufacturer: PRIER Products,Inc.
• Part Number: P-164X06
• Item model number: P-164X06
• Size: 6 Inch
• Item Package Quantity: 1
• Number of Handles: 1
• Included Components: 6" Anti-Siphon, Quarter Turn Wall Hydrant, 1/2 in. PEX Inlet
• Batteries Included?: No
• Batteries Required?: No
• Faucet Type: Wall Hydrant
• Length: 6 in
• Inlet Diameter: 1/2"
• Outlet Diameter: 3/4"
• Connection Type: Crimp PEX
• Insertion Length: 6"
• Valve Turn: 1/4
• Water Connection Type: PEX
• Approved for Commercial Use: Yes
• ASSE Code: 1019
• Certifications: ASSE, UPC
• Model: P-164X06
• Country of Origin: United States
• California Prop 65 Warning: Yes
• Actuation Type: 1/4 Turn, Loose Key
• Anti-Siphon Protected: Yes
• Applicable Standard: CUPC, ASSE 1019
• Application: Residential
• Backflow Protected: Yes
• Body Material: Satin Nickel Plated Solid Brass
• End Connection: Crimp PEX
• Handle Material: Cast Aluminum
• Inclusions/Features: Soft Grip Handle, Anti-Siphon Vacuum Breaker, Integral Cast Flange, Lock Shield Cap, Slim Seat Inlet
• Nominal Size: 1/2 Inch Inlet
• Rough-In: 6 Inch
• Seal/Packing Material: AFG Non-Stick with Graphite
• Seat Material: Solid Brass
