Product Description

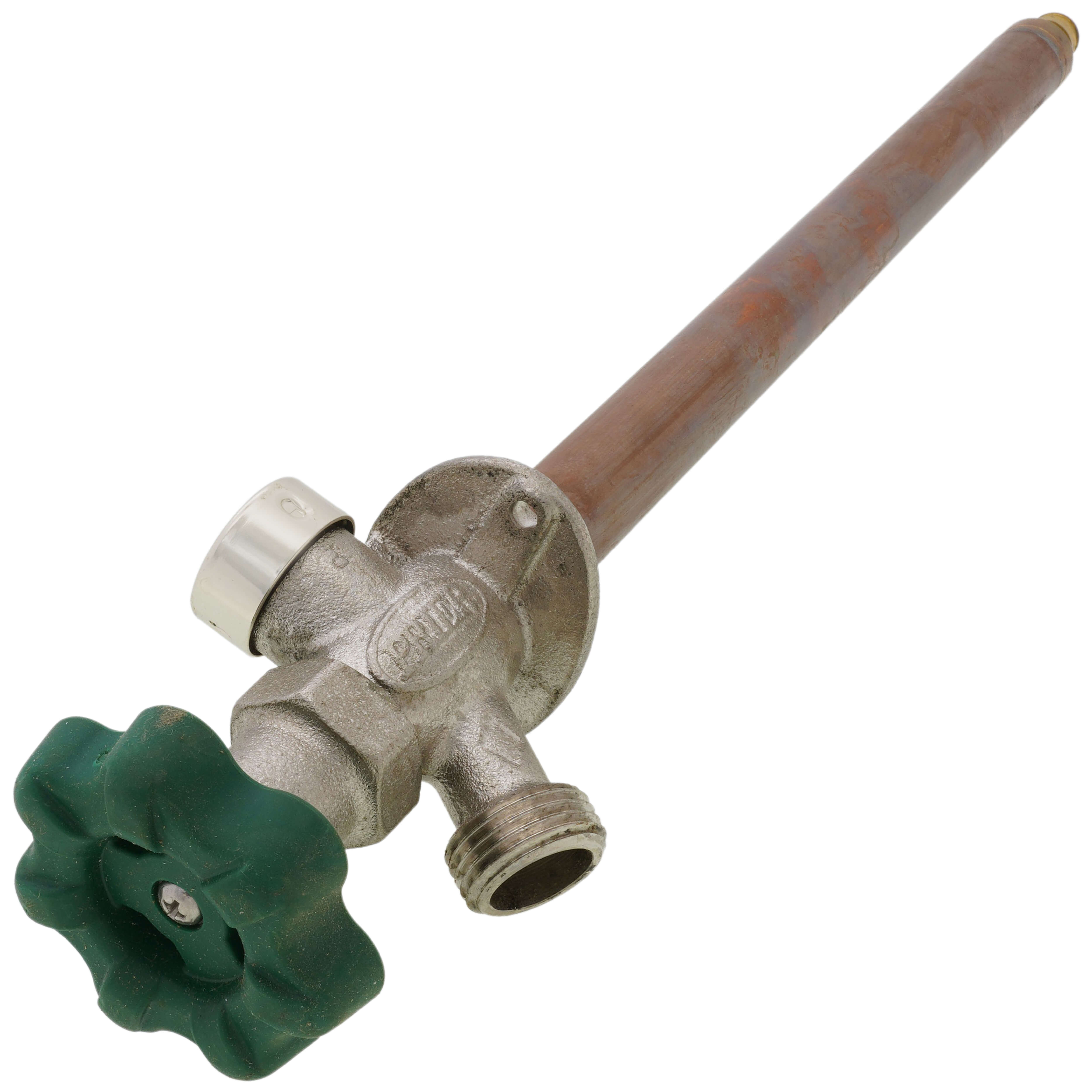

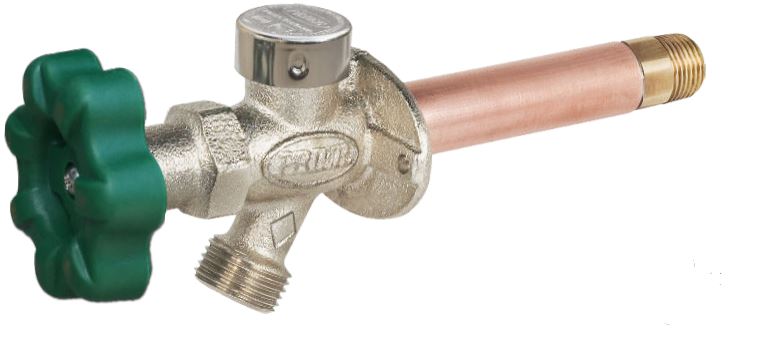

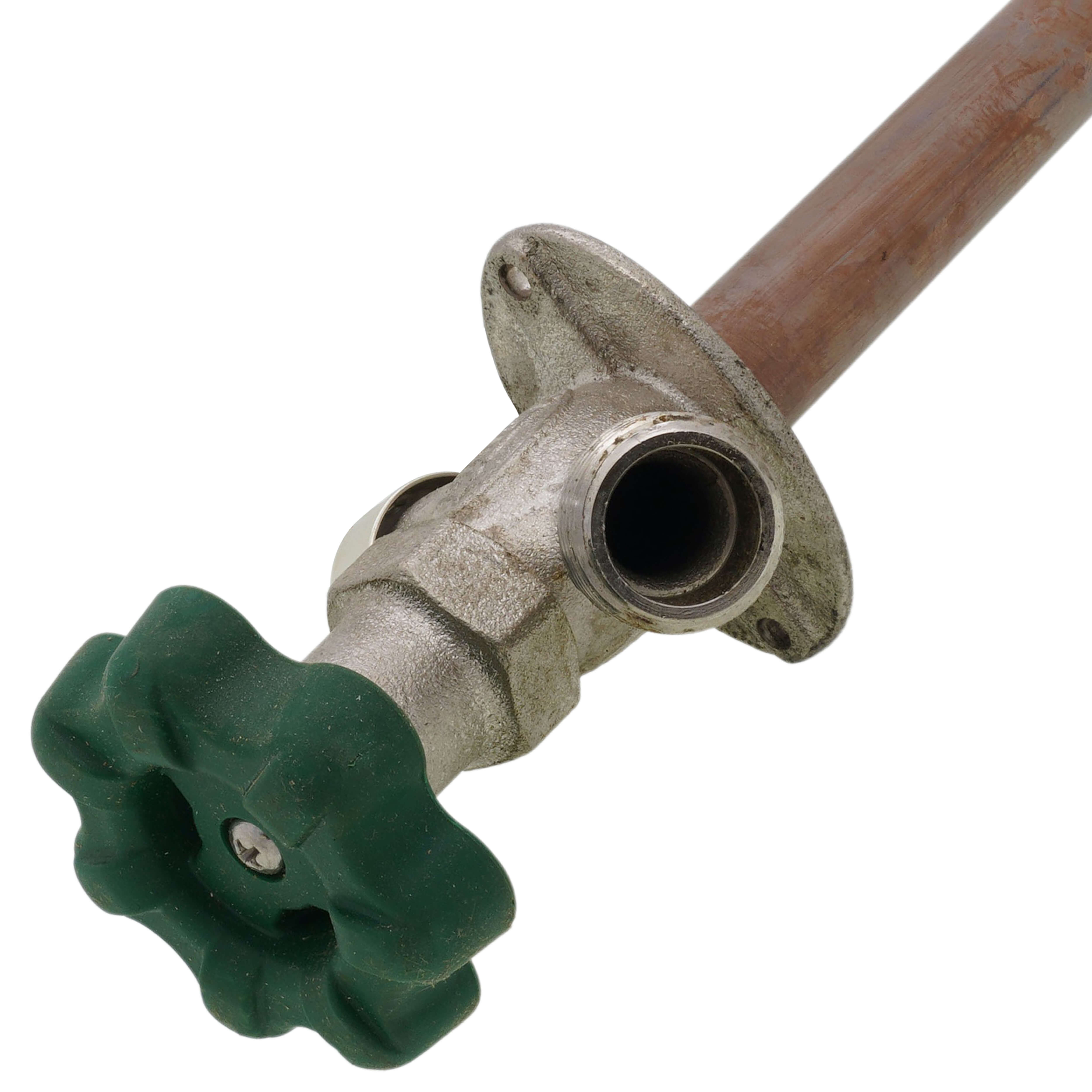

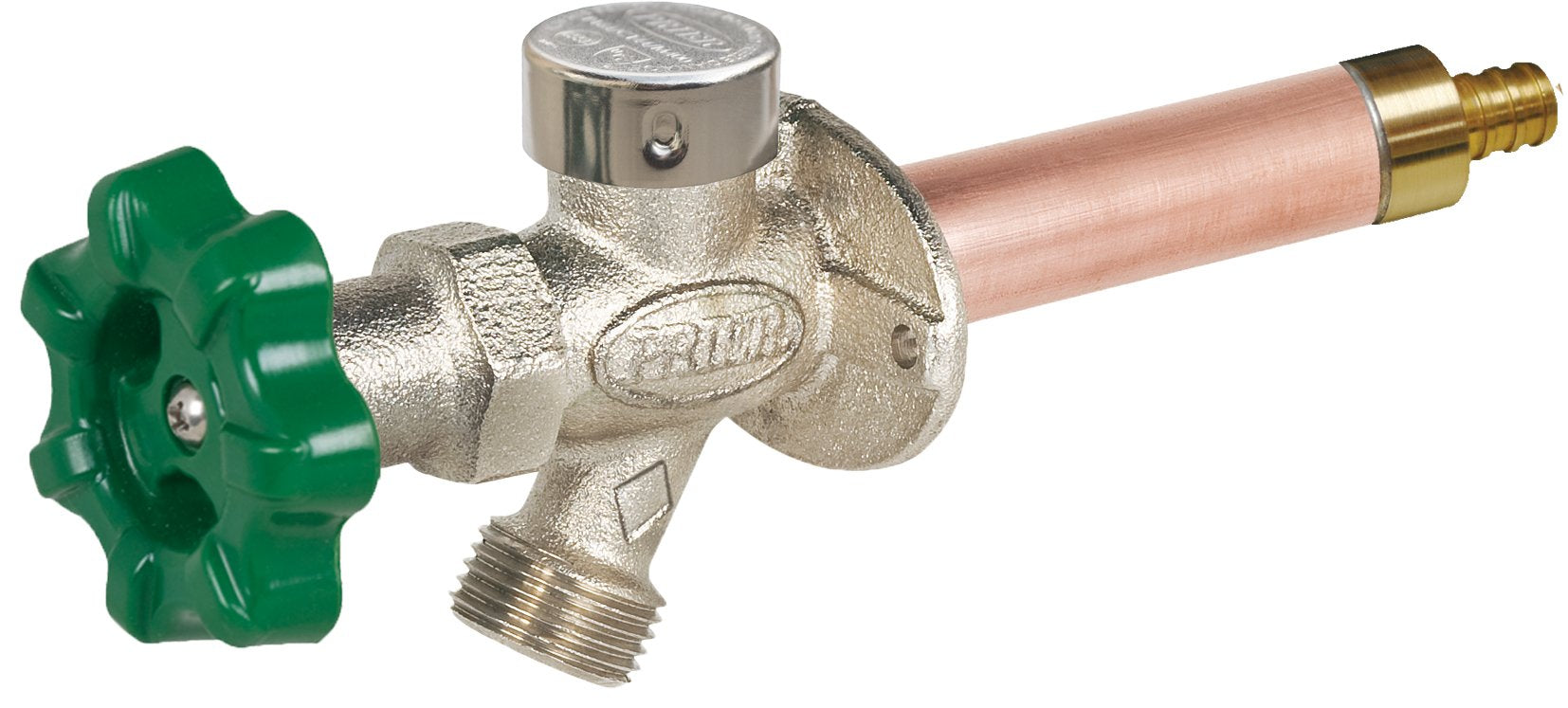

The PRIER P-164W12 is designed to provide a year-round water source in areas subject to freezing temperatures. The hydrant valve connects to the supply piping within the heated structure, preventing freezing. Features include an easy quarter-turn operation with a compression-type seal and a soft grip operating handle for ease of use in wet or cold conditions. It is suitable for residential applications.
- Features an anti-siphon aluminum vacuum breaker with EPDM backflow preventer and backflow check valve.
- Equipped with a quarter-turn soft-grip coated cast aluminum handle.
- Constructed with a solid brass body, valve stem cap, seat, and stem ends.
Product Highlights
This quarter-turn anti-siphon wall hydrant provides a reliable, year-round water source, preventing freezing with its innovative design and durable construction.
Product Information
Standard Information
-
Brand: PRIER
-
Manufacturer Part Number: P-164W12
-
Country of Origin: United States
Technical Specifications
-
MPN: P-164W12
-
Brand: PRIER
-
Product Type: Quarter-Turn Wall Hydrant
-
Insertion: 12 in
-

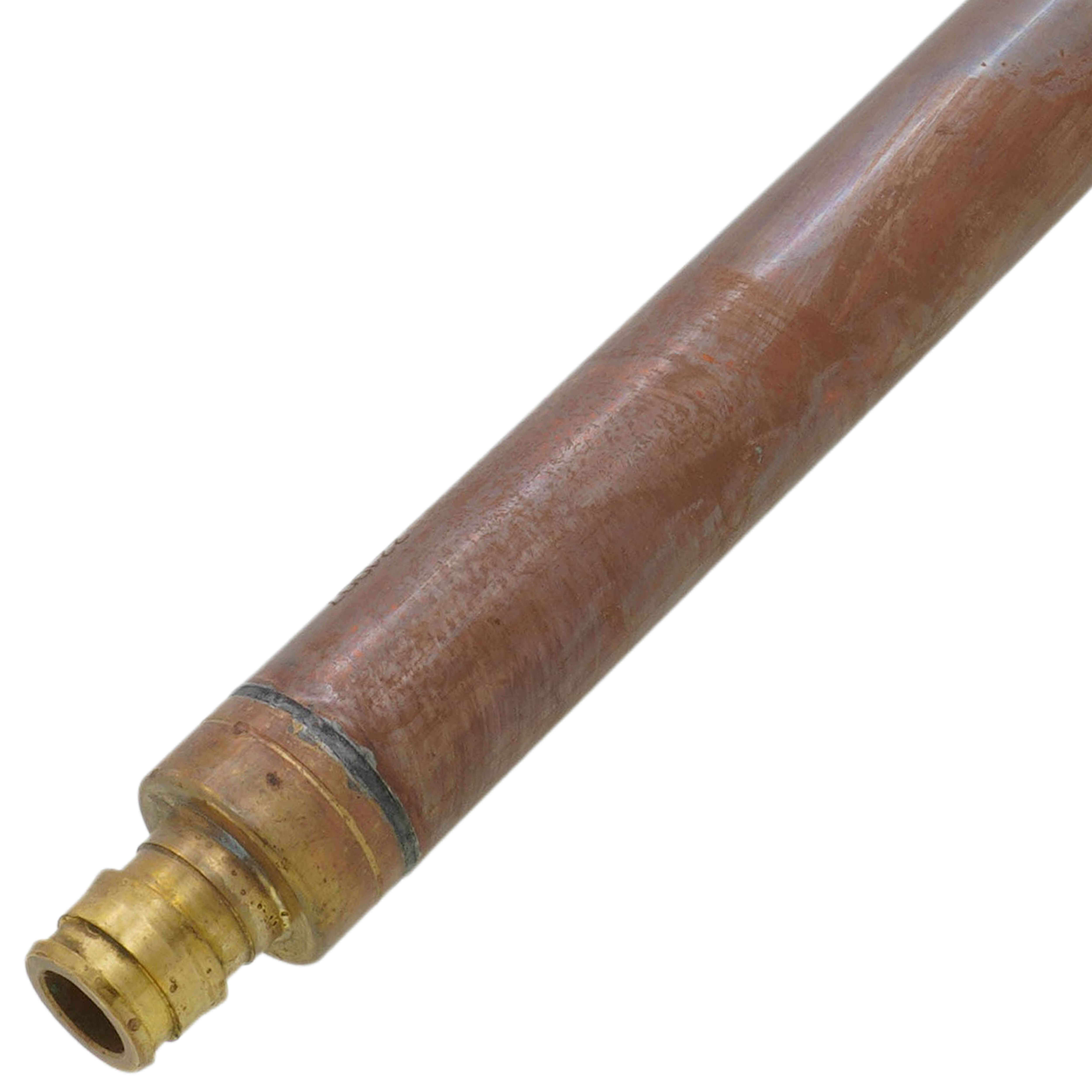

Connection: 1/2 in Wirsbo PEX
-
Pressure Rating: 125 PSI
-
Temperature Rating: 140°
-
Size: 1/2"
-
Type: 1/4 Turn
-
Finish: Satin Nickel Plated
-
Material: Brass
-
Lead Free: No
-
Inlet Type: ProPEX
-
Anti-Siphon: Yes
-
Application: Residential
-
Inlet Diameter: 1/2 Inch
-
Outlet Diameter: 3/4 Inch
-
Connection Type: Wirsbo PEX
-
Insertion Length: 12 Inch
-
ASSE Standards: ASSE 1019
-
Collection: P-164 Series
-
Color Finish Name: Nickel
-
End Connection 1: Barbed
-
End Connection 2: Barbed
-
End Connections: Barbed
-
Handle Material: Metal
-
Handle Type: Hand Wheel
-
IAPMO Listed: Yes
-
Installation Type: Wall Mount
-
Maximum Temperature: 140
-
NSF Certified: No
-
Pressure - Maximum: 125 psi
-
Recommended Valve Application: Water
-
Sillcock Type: Anti-siphon, Frost-proof
-
UL Listed: No
-
Valve Bonnet Type: Threaded
-
Valve Operator: Wheel Handle
-
Valve Seat Material: EPDM
-
Valve Size: 1/2 in
-
Valve Stem: Rising
-
Inlet Connection Type: Cross Linked Polyethylene
-
Outlet Connection Type: PEX
-
Number of Ports: 1
-
Manufacturer: Prier
-
Item Package Quantity: 1
-
Batteries Included?: No
-
Batteries Required?: No
-
Model: P-164W12
-
Country of Origin: United States
-
California Prop 65 Warning: Yes
