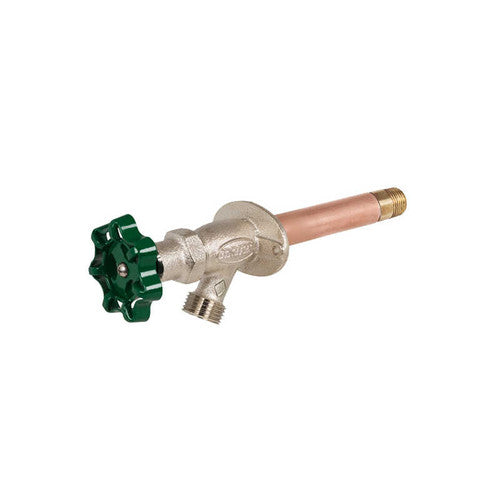

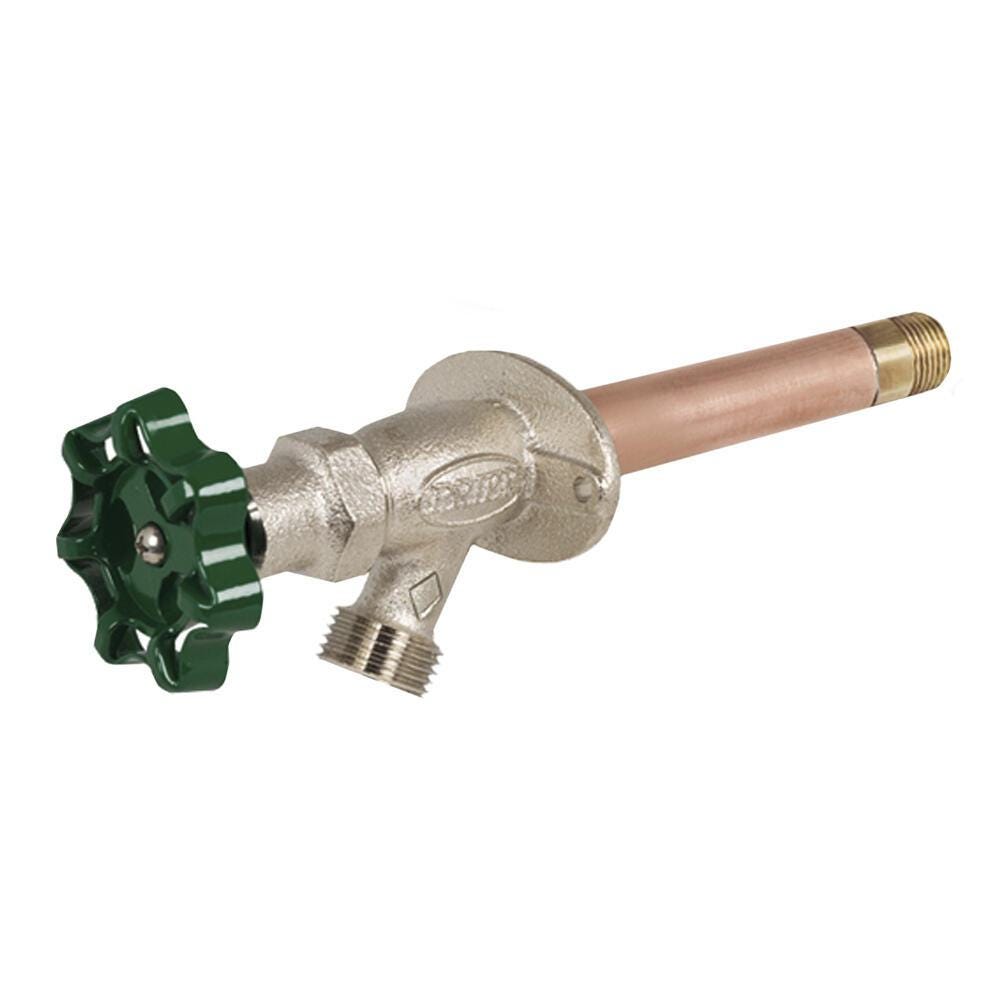

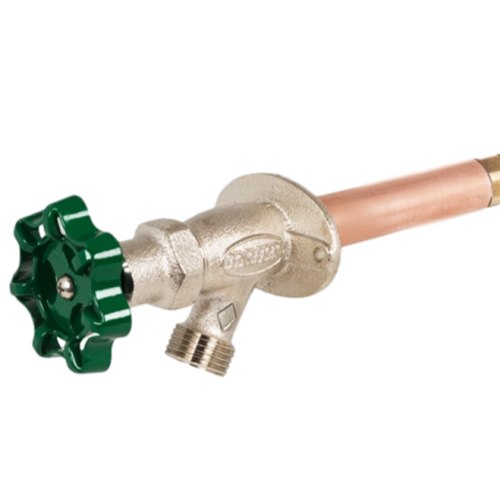

Prier C-134D18 Heavy Duty Wall Hydrant 18 inches 1/2 inches MPT X 1/2 inches SWT

Product Description

The PRIER C-134D18 Heavy Duty Wall Hydrant is a genuine Prier direct replacement, providing a year-round water source in structures subject to freezing. This 18-inch hydrant features a 1/2" MPT X 1/2" SWT inlet style and a satin nickel-plated finish for long life.

• C-UPC approved
• Integral cast flange with built-in drainage pitch
• Enclosed screw holes easily secure mounting screws

Product Highlights

Ideal for exterior hose connections, the hydrant's valve connects to the supply piping in the heated portion of the structure, eliminating the possibility of freezing.

Product Information

Standard Information

• Brand: PRIER
• Manufacturer Part Number: C-134D18
• Country of Origin: United States

Technical Specifications

• Finish: Satin Nickel Plated
• Length: 18 in.
• Inlet Style: 1/2" MPT X 1/2" SWT
• Product Type: Freezeless Wall Hydrant
• Series: Diamond C-134 – heavy-pattern residential-grade frost-proof wall hydrant
• Connection Type: 1/2-inch MPT (Male Pipe Thread) x 1/2-inch SWT (Sweat)
• Stem Length: 18 inches – suitable for thicker exterior walls and deeper wall penetrations
• Material: Lead-free brass body with stainless steel operating rod and brass seat for maximum strength and corrosion resistance
• Operation: Multi-turn handle provides smooth flow control and positive shutoff
• Pressure Rating: Up to 125 psi maximum working pressure
• Temperature Rating: 33°F to 120°F (0.5°C to 49°C) operating range
• Mounting: Wall-mounted through siding, masonry, or foundation surfaces
• Backflow Protection: Integrated vacuum breaker
• Compliance: Meets ASME A112.18.1 / CSA B125.1 standards; Lead-Free compliant per NSF/ANSI 372
• Application: Residential outdoor hose bibb installations in regions subject to freezing conditions
• Maintenance: Serviceable from the front of the wall without disturbing piping connections
• Manufacturer: Prier
• Part Number: C-134D18
• Faucet Type: Wall Hydrant
• Brand: Prier
• Model: C-134D18
