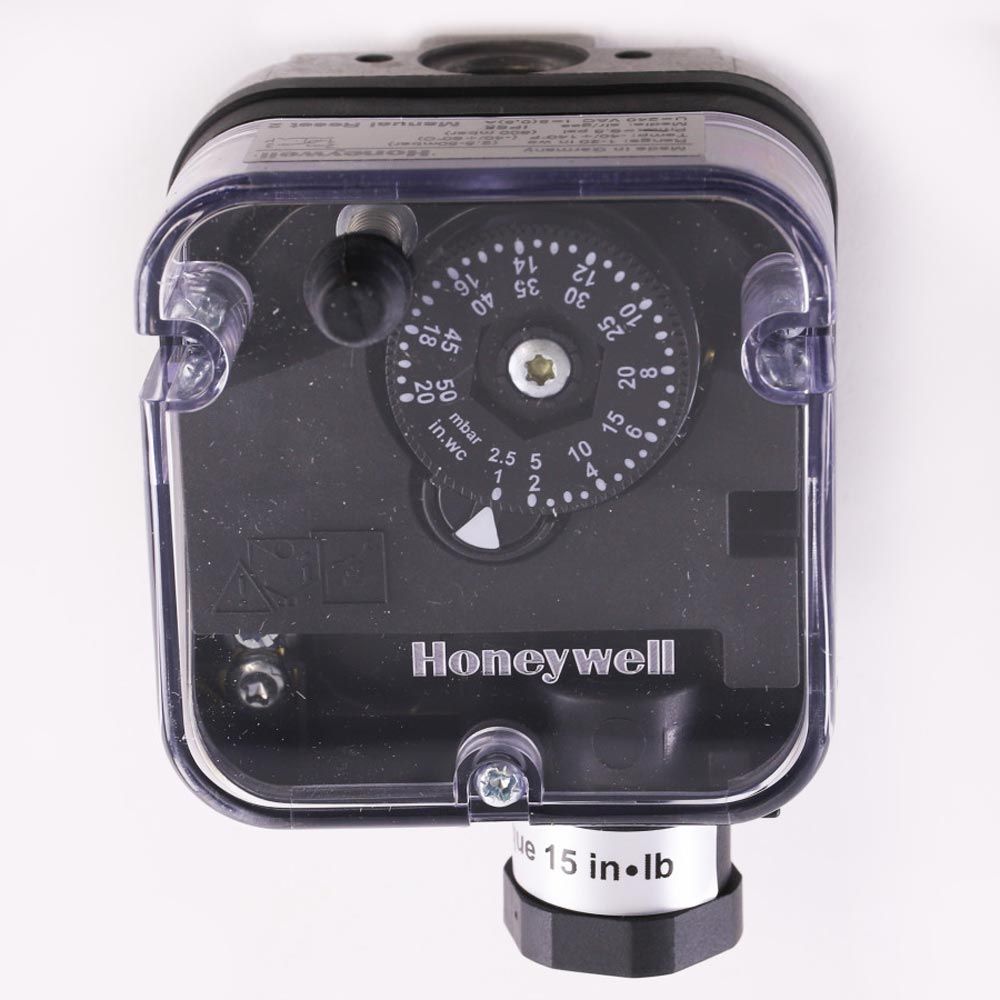

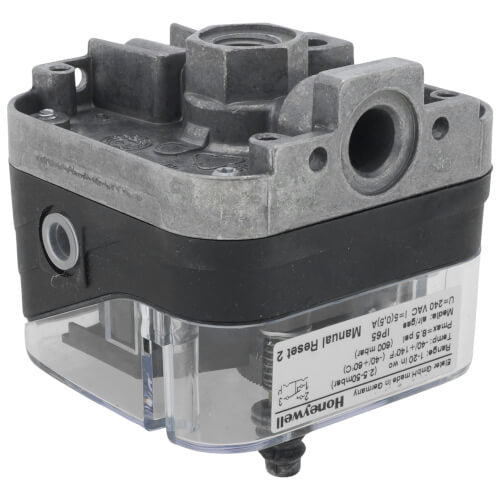

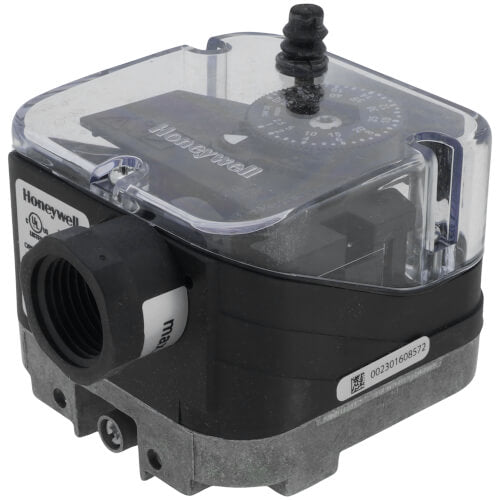

Honeywell C6097B3028 Gas Pressure Switch 1/4 NPT

Product Description

The Honeywell C6097B3028 gas pressure switch includes a manual reset. Designed for use in various gas and air pressure systems, it ensures automatic monitoring and control. The model features an 1/4 NPT connection and supports a pressure range adjustment from 1 to 20 inches water column.

• Manual reset functionality.
• 1/4 NPT connection.
• 1 to 20 inches water column adjustment range.

Product Highlights

The Honeywell C6097B3028 breaks the control circuit upon pressure rise, providing reliable monitoring for gas and air applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: C6097B3028
• Model: C6097
• Replaces: C6097B1028

Technical Specifications

• Weight: 0.69 lbs
• Pressure Range: 1 to 20 inches water column
• Mounting: 1/4 in. Rp internal thread
• Operating Temperature: -4 to +176°F (-20 to +80°C)
• Switch Operation: Manual reset
• Electrical Connections: Screw terminals; Line entrance: M16 x 1.5 cable gland
• Approvals: FM Class 3510
• Differential Type: Subtractive
