Johnson Controls P170AB-12C Pressure Control Single SPST Open on Low 12-80 Pounds per Square Inch 5-35 Pounds per Square Inch

Product Description

The Johnson Controls P170AB-12C is a low pressure control designed for HVAC applications. This single pole switch is capable of opening on low pressure, making it suitable for environments where precise pressure regulation is necessary. The adjustable pressure range of twelve to eighty pounds per square inch (PSI) allows customization based on system requirements.

• Compatible with most non-corrosive refrigerants
• Built for A/C refrigeration applications
• Includes universal mounting bracket

Product Highlights

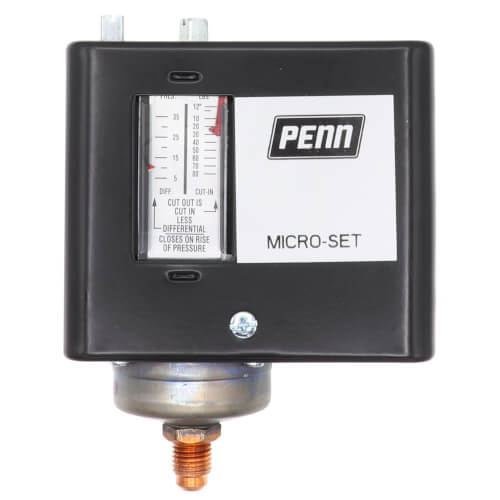

This product features a durable steel case that protects its internal components. The visible pressure scale is designed for easy adjustments without needing to remove the cover, facilitating quick service and maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: P170AB-12C

Technical Specifications

• Pressure Range: 12-80 PSI
• Differential Pressure: 5-35 PSI
• Switch Action: SPST Open on Low
• End Connection: 1/4 Inch Male Flare SAE
• Application: A/C Refrigeration
• Shipping Weight: 3 lbs
• Electrical Connection: Screw Terminal
• Enclosure Type: NEMA 1
