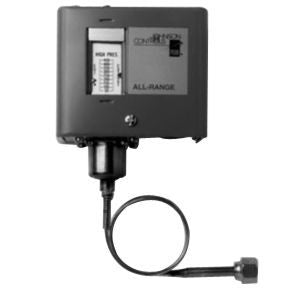

Johnson Controls P170AA-118C High Pressure Control 100 - 400 PSI

Product Description

The Johnson Controls P170AA-118C is a high-pressure control device designed for air conditioning and refrigeration applications. This unit operates within a pressure range of one hundred to four hundred PSI, utilizing a single-pole single-throw (SPST) switch. It is built for reliability with features that ensure optimal performance in various conditions.

• Pressure range: One hundred to four hundred PSI
• SPST switching action: Opens on low pressure
• Includes universal mounting bracket for easy installation

Product Highlights

This control is suitable for non-corrosive refrigerants and provides a robust solution for pressure management in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P170AA-118C

Technical Specifications

• Pressure Range: 100 to 400 PSI
• Switch Action: SPST Open Low
• Connection Type: 1/4 Inch Male Flare
• Dimensions: 2-1/4 Inch L x 4 Inch W x 4-1/5 Inch H
• Enclosure Type: NEMA 1
• Electrical Connection: Quick Connect Screw Terminal
• Maximum Working Pressure: 475 PSI
• Material: Steel case
• Approval: UL Listed
