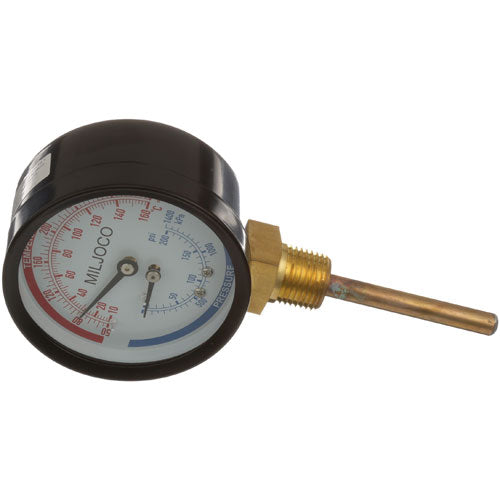

PRESS/TEMP GAUGE 3 DIAMETER 50-290 F 0-200 PSI for Champion 101144

Product Description

This item for Champion MPN 101144 is a dual scale pressure and temperature gauge suitable for various applications. It measures temperatures from fifty to two hundred ninety degrees Fahrenheit and pressures from zero to two hundred PSI. This gauge is ideal for monitoring systems requiring precise temperature and pressure readings.

• Dual scale measurement for pressure and temperature
• Bottom mount with half inch MPT connection
• Temperature flagged at two hundred eighty-five degrees

Product Highlights

This gauge helps ensure optimal performance in mechanical systems, providing critical feedback for maintenance and safety checks.

Product Information

Standard Information

• Weight: 0.74 lbs
• Dimensional Weight: 0.22448 lbs

Technical Specifications

• Overall Length: 7.3 inches
• Width: 3.7 inches
• Height: 1.7 inches
• Temperature Range: 50-290 F, 25-140 C
• Pressure Range: 0-200 PSI, 0-1400 KPA
• Mounting Type: Bottom mount
• Probe Length: 2.5 inches
