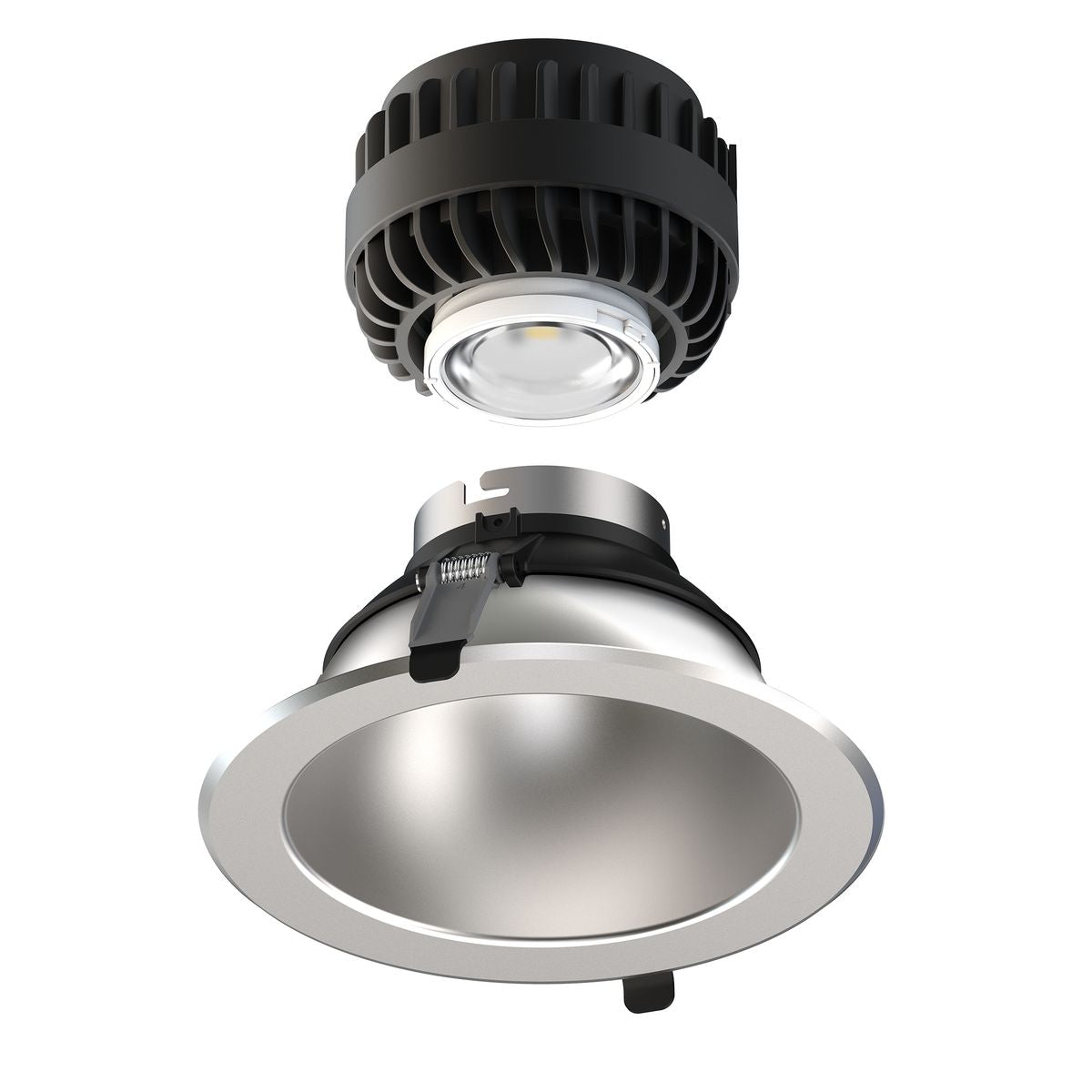

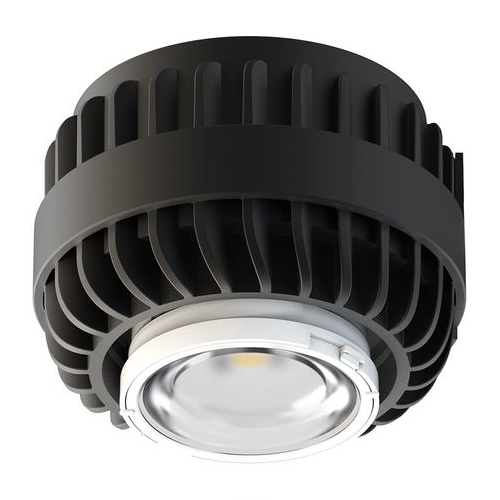

PRESCOLITE LBRP-M-LSSLCS9-WD LiteBox Pro LED Module

Product Description

The PRESCOLITE LBRP-M-LSSLCS9-WD LiteBox Pro LED module is suitable for new construction and remodel projects. This downlighting module offers switchable technology allowing for adjustments to color temperature and lumen output. It features 0-10V dimming and can be installed directly without a can, making it a flexible solution for various lighting needs.

• Suitable for recessed mounting

• Maintains L70 lumen output at over fifty-four thousand hours

• Color temperature adjustable from 2700K to 5000K

Product Highlights

The LiteBox Pro LED module ensures effective and efficient lighting in diverse environments.

Product Information

Standard Information

• Brand: PRESCOLITE

• MPN: LBRP-M-LSSLCS9-WD

Technical Specifications

• Aperture Shape: Round

• Product Technology: Switchable Technology

• Lumen Range: 700 - 5,500

• Dimming Protocol: 0-10V Dimming

• Color Temperature: 2700K/3000K/3500K/4000K/5000K Selectable

• CRI: 90

• Mounting Options: Recessed

• Wattage Range: 9 - 57

• Wattage: 9.6W / 13.9W / 19.3W

• Efficacy: 82 - 103

• Beam Angle: Wide

• Certifications: cETLus

• Ratings: Wet, Non-IC, Airtight

• Lumen Maintenance Rating: L70 @ 54,000 hours

• Voltage: 120-277V

• Distribution: 55 degrees - 75 degrees

• Install: Canless direct install New Construction or Remodel, Non IC

• Width: 4.35 inches

• Not Included: Round housing (sold separately)
