Premise PS0509NGY Hubw 1/2 Swvl M L/T Conn Replaced by PS0509NGYHI

Product Description

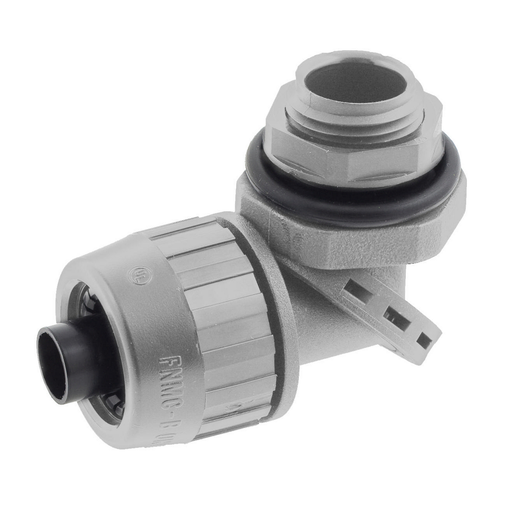

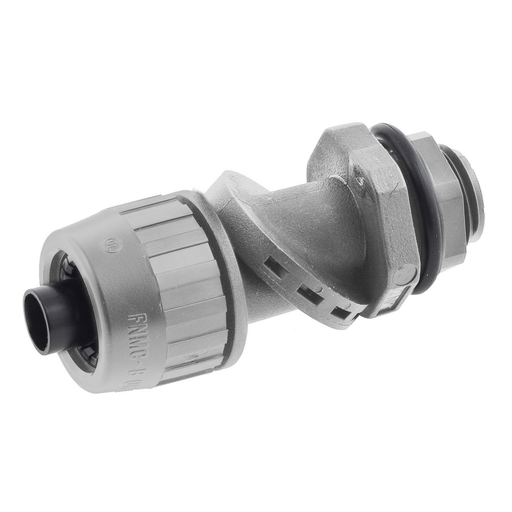

The PREMISE PS0509NGY is a conduit connector with a multiposition range from 0 to 90 degrees. Constructed from gray nylon (body/locknut) and neoprene (O-ring), this connector is suitable for non-metallic liquidtight conduit. It is UL and CSA approved and can operate in temperatures ranging from -30 to 225 Deg F.

• Conduit Connector
• Multiposition 0 to 90 Deg
• 1/2 Inch Trade Size

Product Highlights

This connector features a swivel design for versatile positioning and is built with durable nylon and neoprene materials.

Product Information

Standard Information

• Brand: PREMISE
• Manufacturer Part Number: PS0509NGY
• Country of Origin: United States

Technical Specifications

• Type: Multiposition 0 to 90 Deg
• Trade Size: 1/2 Inch
• Material: Gray Nylon (Body/Locknut), Neoprene (O-Ring)
• Approval: UL, CSA
• Used On: Non-Metallic Liquidtight Conduit
• Operating Temperature: -30 to 225 Deg F
• Country of Origin: United States
• Industry Standard(s): CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
• Style: SwivelLok® Multi-Position
• Description - Invoice: SWIVEL MALE L/T CONN, 1/2", NM, GY
• Product Type: PolyTuff® SwivelLok® Fittings
• Application: Fittings are to be used with PolyTuff® I and PolyTuff® II
• Standard: CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
• Image Actual Or Representative: A
• Replaced Catalog Number: PS0509NGYHI
• Base Unit of Measure: EA
• Width: 1.390 in
• Certifications: EU RoHS Indicator
