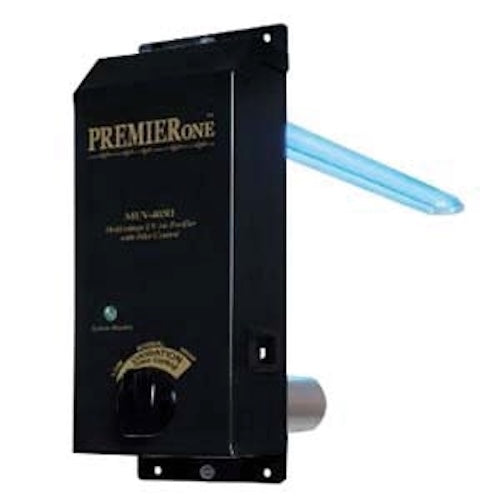

Premier One Products PMUV-403H-16/5 Uv Air Purifier

Product Description

The PREMIER ONE PRODUCTS PMUV-403H-16/5 is a multi-voltage UV air purifier with integrated odor control, designed for installation in residential and light commercial HVAC duct systems. Operating across a wide voltage range of 120 to 240 VAC at 50/60 Hz, this unit is well-suited for both domestic and international system installations. It draws 0.4 amps at 120 VAC or 0.2 amps at 240 VAC and consumes 46 watts. The germicidal UV lamp delivers 180 microwatts of UV-C irradiance, targeting airborne pathogens and odor-causing compounds in the airstream. Licensed HVAC technicians and IAQ specialists are the typical installing trades for this class of equipment.

The PMUV-403H-16/5 is intended for in-duct installation where ongoing UV air treatment and odor reduction are required. It fits into residential forced-air systems as well as light commercial air handlers where duct access allows for proper lamp positioning and wiring. The multi-voltage design eliminates the need for step-down transformers in 240 VAC applications, simplifying installation across varied system configurations. No specific compatible model numbers or system families were identified in the available product data.

Key Features

• Multi-voltage operation: 120 to 240 VAC accommodates diverse electrical supply configurations
• 180 microwatts UV-C output targets airborne pathogens and odor-causing compounds
• Dual amperage rating: 0.4 A at 120 VAC, 0.2 A at 240 VAC
• 46-watt power consumption supports continuous in-duct operation
• 50/60 Hz frequency compatibility for broad application flexibility
• Integrated odor control function combined with UV air purification in a single unit

Compatibility

Designed as an OEM-style in-duct UV air purifier for residential and light commercial forced-air HVAC systems where 120 to 240 VAC supply and duct access for lamp installation are available.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer instructions. Power the air handler and associated electrical circuits off at the breaker before beginning any wiring or mounting work. The unit must be mounted so the UV lamp irradiates the supply or return airstream without direct exposure to service personnel during operation. Verify voltage and frequency compatibility with the local electrical supply before energizing the unit.

Technical Specifications

• Voltage Rating: 120 - 240 VAC
• Amperage Rating: 0.4/0.2 A
• Power Rating: 46 W
• Frequency Rating: 50/60 Hz
• UV-C Irradiance: 180 microwatts
• Dimensions: 10.75 inches L x 4.25 inches W x 2.75 inches D
• Type: Multi-Voltage

Standard Information

• Brand: PREMIER ONE PRODUCTS
• Manufacturer Part Number: PMUV-403H-16/5
