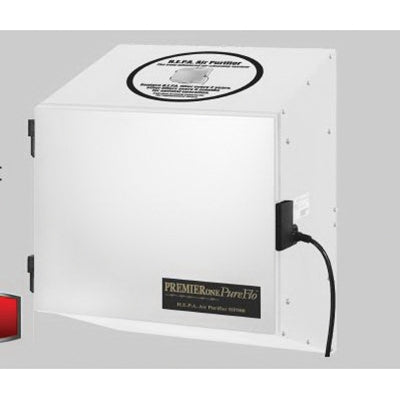

Premier One Products PHP500 Hepa Air Cleaner 230/300 Cfm

Product Description

The PREMIER ONE PRODUCTS PHP500 is a duct-mount, whole-house HEPA air cleaner built with a micro-glass filtration media for high-efficiency particulate capture across an entire residential or light-commercial forced-air system. It handles airflow rates of 230 CFM on the low setting and 300 CFM on the high setting, drawing 112 watts at low speed and 140 watts at high speed from a standard 120 VAC, 60 Hz circuit. The unit measures 17 inches wide, 22 inches tall, and 13 inches deep, making it sized for integration directly into existing duct systems. Installation is handled by licensed HVAC technicians as part of a central air system upgrade or indoor air quality retrofit.

The PHP500 is designed for whole-house air cleaning in ducted HVAC systems, both residential and light-commercial applications. It mounts inline with the duct to treat conditioned air passing through the central system rather than relying on portable or room-specific filtration. The replaceable filter element measures 12 inches long by 16 inches wide by 2.5 inches thick, a commonly available size that simplifies scheduled maintenance. This unit is appropriate for homes or buildings where occupants require high-grade particulate filtration beyond what standard panel or pleated filters provide.

Key Features

• Micro-glass HEPA-grade filtration media for high-efficiency particulate removal
• Dual airflow settings: 230 CFM low and 300 CFM high to suit different system demands
• Duct-mount whole-house design integrates with existing central forced-air systems
• Operates on standard 120 VAC at 60 Hz with a 1.5-amp draw
• Replaceable filter element: 12 x 16 x 2.5 inches for straightforward servicing
• Low power consumption: 112 watts at low speed, 140 watts at high speed

Compatibility

Designed as an OEM-style duct-mount whole-house air cleaner for integration with central forced-air HVAC systems that can accommodate a unit measuring 17 inches wide, 22 inches tall, and 13 inches deep.

Installation Notes

Installation should be performed by a licensed HVAC technician following applicable local mechanical codes and manufacturer guidelines. Shut off power to the air handler and disconnect the system at the breaker before beginning any ductwork modification or electrical connection. The unit requires a dedicated 120 VAC, 60 Hz circuit rated for at least 1.5 amps. Do not operate the unit without the filter element in place, as unfiltered air bypass can damage downstream equipment.

Technical Specifications

• Airflow Capacity: 230/300 CFM
• Voltage Rating: 120 VAC at 60 Hz
• Amperage Rating: 1.5 amps
• Power Consumption: 112 watts low, 140 watts high
• Width: 17 inches
• Height: 22 inches
• Depth: 13 inches
• Filter Size: 12 inches L x 16 inches W x 2.5 inches H
• Material: Micro-Glass
• Type: Duct Mount, Whole-House

Standard Information

• Brand: PREMIER ONE PRODUCTS
• Manufacturer Part Number: PHP500
