Preformed 2875003TE FIBERLIGN Lite Tension Dead-End

Product Description

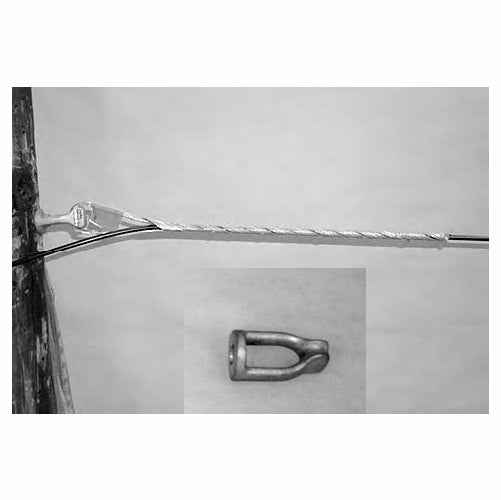

The Preformed 2875003TE FIBERLIGN Lite Tension Dead-End is a designed component for terminating short-span ADSS fiber optic cables in low-voltage settings. It efficiently transfers axial loads from the cable to radial compression near the loop. This dead-end is made of aluminum and aluminum-clad steel wires with latex-coated legs for flexibility. It is prominently colored green for easy identification.

• Compatible with ADSS fiber optic cables with a diameter of zero point four six zero to zero point five zero five inches (eleven point seven to twelve point eight millimeters).
• Features a practical single-layer design.
• Can be used with guy wire dead-end pole fittings.

Product Highlights

Reliable and effective for low-tension applications.

Product Information

Standard Information

• Brand: Preformed
• Manufacturer Part Number: 2875003TE

Technical Specifications

• Type: Dead End
• Color: Green
• Cable Diameter Range (in): 0.460 - 0.505
• Cable Diameter Range (mm): 11.7 - 12.8
• Length (in): 33
• Length (mm): 0.84
• ECCN: EAR99
• Country of Origin: US
• UNSPSC: 39122100
• Overall Length: 33 In
