Precision Twist Drill PREDO-91564 General Purpose Reduced Shank Drill 1 in Drill - Decimal Inch

Product Description

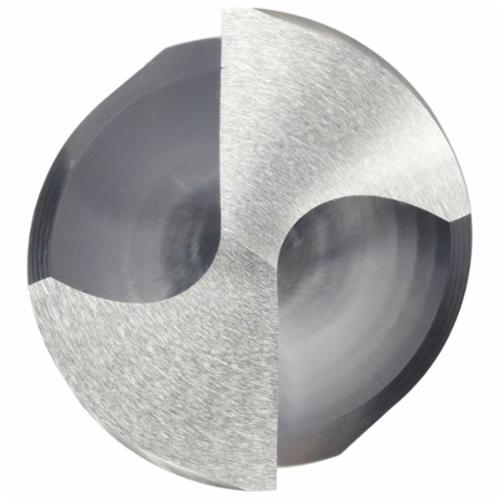

The Precision Twist Drill PREDO-91564 is designed for general purpose drilling tasks. This drill bit has a cutting diameter of one inch and features a half-inch reduced shank for a secure fit in smaller chucks. The overall length is six inches, with a flute length of three inches, making it suitable for various applications.

• Made from high-speed steel (HSS)
• Right-hand cutting direction with 118 degree point angle
• Spiral flute design for efficient chip removal

Product Highlights

Ideal for use with magnetic soft steel, structural steel, carbon steel, and stainless steel, the Precision Twist Drill is engineered for durability and performance.

Product Information

Standard Information

• Brand: Precision Twist Drill
• Manufacturer: Dormer Pramet

Technical Specifications

• Drill Size: 1 in
• Shank Size: 1/2 in
• Overall Length: 6 in
• Flute Length: 3 in
• Cutting Depth: 4xD
• Point Angle: 118 deg
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Shank Type: 3-Flat Reduced
• Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened, Tempered Steel, Free Machining Stainless Steel
• Cutting Edge Material: HSS
• Finish: Steam Oxide
