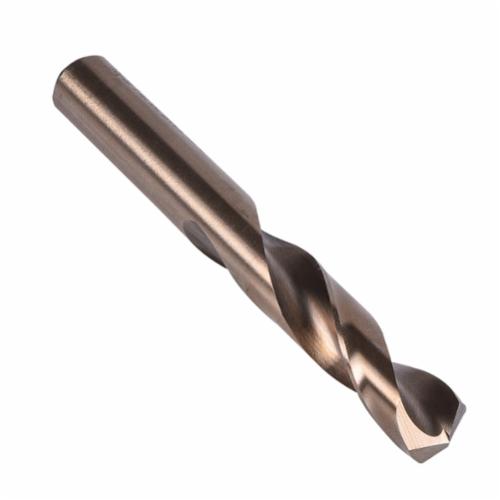

Precision Twist Drill PREDO-41347 Heavy Duty Short Length Drill Bit, #47 Drill - Wire

Product Description

The Precision Twist Drill PREDO-41347 is a heavy-duty short-length drill bit designed for various machining operations in screw machines. This drill bit features a #47 size for wire applications with a decimal inch drill measurement of zero point zero seven eight five. The overall length of this bit is one and eleven-sixteenths inches, and it provides a cutting depth of two and a half times the diameter. With a spiral flute design and two flutes, it ensures efficient drilling performance.

• Drill size: #47
• Material: HSS-E with Bronze finish
• Cutting direction: Right Hand

Product Highlights

This drill bit is ideal for working with materials such as alloy steel, hardened and tempered steel, and free machining stainless steel.

Product Information

Standard Information

• Brand: Precision Twist Drill
• MPN: PREDO-41347

Technical Specifications

• Cutting Depth: 2.5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS-E
• Drill Diameter Measurement System: Imperial
• Flute Length: 11/16 in
• Flute Type: Spiral
• Number of Flutes: 2
• Overall Length: 1-11/16 in
• Point Angle: 135 deg
• Point Type: Split/Self-Centering
• Series: M41CO
• Shank Size: 0.078 in
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #47
• Drill Size - Decimal Inch: 0.0785 in
• Finish: Bronze
• Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel and Titanium
