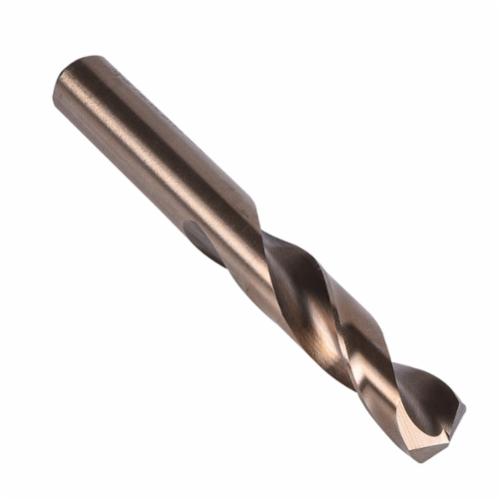

Precision Twist Drill PREDO-41313 M41CO Heavy Duty Short Length Drill Bit, #13 Drill - Wire

Product Description

The Precision Twist Drill PREDO-41313 is a heavy-duty short-length drill bit designed for various machining tasks. This drill bit features a #13 wire size with a drill diameter of zero point one eight five inches. It has a total length of two and three-sixteenth inches and offers a cutting depth of two point five times the diameter.

• Designed for use in screw machines.
• Manufactured from HSS-E for enhanced durability.
• Self-centering split point for precision drilling.

Product Highlights

This drill bit combines a spiral flute design with a right-hand cutting direction, ensuring efficient chip removal and improved penetration in a variety of materials.

Product Information

Standard Information

• Brand: Precision Twist Drill
• MPN: PREDO-41313

Technical Specifications

• Cutting Depth: 2.5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS-E
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-1/8 inches
• Flute Type: Spiral
• Number of Flutes: 2
• Overall Length: 2-3/16 inches
• Point Angle: 135 degrees
• Point Type: Split/Self-Centering
• Series: M41CO
• Shank Size: 0.185 inches
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Wire: #13
• Drill Size - Decimal Inch: 0.185 inches
• Material: HSS-E
• Finish: Bronze
• Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel, Titanium
