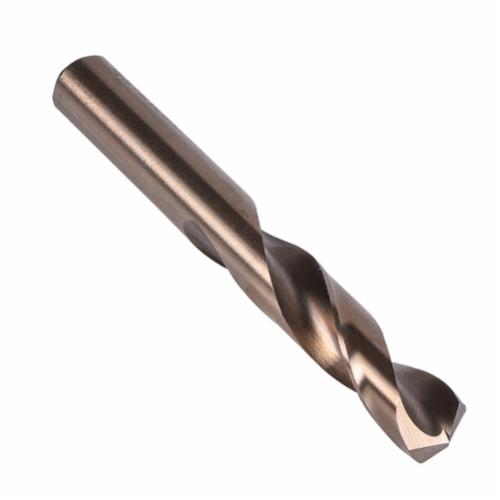

Precision Twist Drill PREDO-40315 Heavy Duty Short Length Drill Bit

Product Description

The Precision Twist Drill PREDO-40315 is a heavy duty short length drill bit. It is designed for precision drilling in multiple materials. This drill bit measures fifteen sixty-fourths of an inch in diameter and features a spiral flute design that helps in creating clean holes. The overall length of the bit is two and seven-sixteenths inches with a cutting depth of two and a half times the diameter.

• Drill diameter: 15/64 inches
• Material: HSS-E with a bronze finish
• Applications: Ideal for machining in screw machines

Product Highlights

This drill bit is effective for various tasks and is suitable for a range of materials including alloy steel and titanium.

Product Information

Standard Information

• Brand: Precision Twist Drill
• MPN: PREDO-40315

Technical Specifications

• Cutting Depth: 2.5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS-E
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-5/16 inches
• Flute Type: Spiral
• Number of Flutes: 2
• Overall Length: 2-7/16 inches
• Point Angle: 135 degrees
• Point Type: Split/Self-Centering
• Series: M40CO
• Shank Size: 0.234 inches
• Shank Type: Straight
• Type: Heavy Duty
• Drill Size - Fraction: 15/64 inches
• Drill Size - Decimal Inch: 0.2344 inches
• Finish: Bronze
• Applicable Materials: Alloy Steel, Ferritic + Austenitic, Free Machining Stainless Steel, Hardened and Tempered Steel, Martensitic, Magnetic Soft Steel, Nickel, Nodular Graphite/Malleable Cast Iron, Plain Carbon Steel, Structural Steel/Case Carburizing Steel, Titanium
