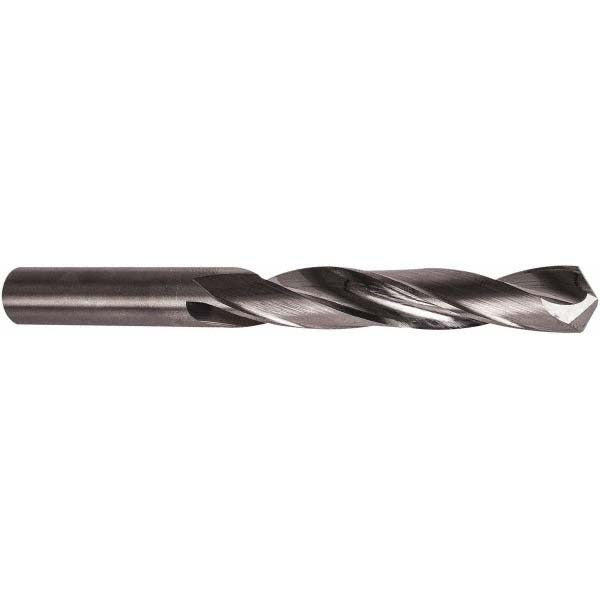

Precision Twist Drill 6002764 11/32 in Solid Carbide Drill Bit

Product Description

The PRECISION TWIST DRILL 6002764 is a jobber-length drill bit designed for general-purpose drilling in aluminum, non-ferrous metals, and similar materials. Built from solid carbide with a bright, uncoated finish, it delivers the hardness and wear resistance needed for production drilling environments. The bit features a 118-degree standard point angle, a web-thinned and tapered web configuration for easier penetration, and a right-hand, regular spiral flute geometry. With an overall length of 4 inches and a 2-flute design, it is suited for HVAC fabrication shops, mechanical contractors, and industrial tradespeople working with non-ferrous stock.

This bit is intended for drilling in aluminum and other non-ferrous materials in both shop and field settings. The straight shank accepts standard drill chucks without adapters, making it compatible with common corded and cordless drill motors and drill presses. The 2.5-inch flute length allows for adequate chip clearance during through-hole and deep-hole operations within its rated drilling depth.

Key Features

• Solid carbide construction for high hardness and wear resistance in non-ferrous applications
• 118-degree standard point angle with web-thinned, tapered web for reduced entry force
• Right-hand cut, regular spiral flute with 2.5-inch flute length for efficient chip evacuation
• Bright, uncoated finish suitable for use with or without cutting fluid
• Straight shank at 0.3438-inch diameter fits standard drill chucks directly
• Meets ANSI standards for jobber-length drill geometry

Compatibility

Part of the D33F-D33W-D33L-D33M series. Designed for general-purpose drilling in aluminum and non-ferrous workpiece materials. Fits any standard drill chuck or drill press accepting a straight shank up to 11/32 inch diameter.

Installation Notes

This bit is installed and operated by machinists, fabricators, and mechanical tradespeople using hand drills or drill presses. Secure the straight shank firmly in the chuck before operation and verify chuck key removal before starting the machine. Use appropriate cutting fluid or coolant for extended tool life when drilling non-ferrous metals, even though the bit does not include internal coolant-through capability. Follow shop safety protocols including eye protection and workpiece clamping.
