Precision Twist Drill 6002202 Jobber Drill Bit No. 64

Product Description

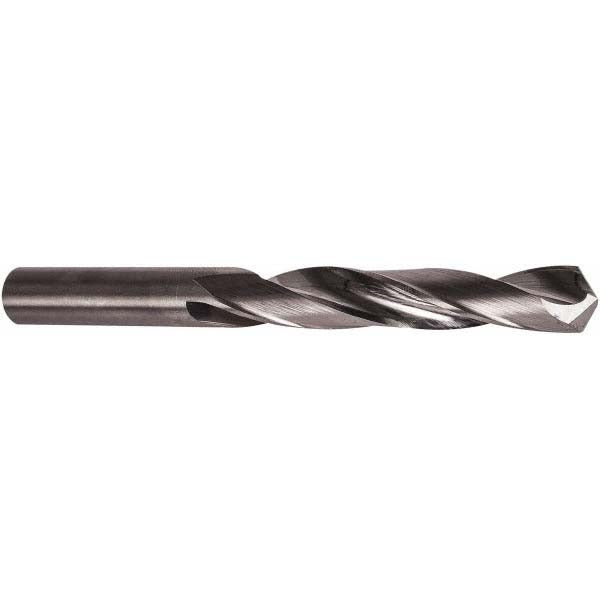

The PRECISION TWIST DRILL 6002202 is a solid carbide, jobber-length drill bit in wire gauge size No. 64, with a decimal diameter of 0.0360 inches. It features a standard 118-degree point angle, a bright uncoated finish, and a regular right-hand spiral flute pattern. Designed for general-purpose drilling operations, it delivers consistent performance in a compact, straight-shank format. The two-flute geometry and tapered web configuration promote efficient chip evacuation and accurate hole entry on small-diameter work. Machinists, tool-and-die technicians, and HVAC or electrical tradespeople performing precision drilling tasks rely on this size for tight-tolerance holes in small components.

This drill bit is suited for drilling into steel, stainless steel, cast iron, non-ferrous metals, and hard materials, covering material codes P, M, K, N, and H. The short overall length of 1.375 inches and a maximum drilling depth of 0.625 inches make it appropriate for bench drill press, CNC, or hand-drill applications where fine wire-gauge bores are required. It is sold individually and is appropriate for production or maintenance settings requiring consistent, repeatable small-hole drilling.

Key Features

• Wire gauge No. 64 diameter: 0.0360 inches for precise small-hole drilling
• 118-degree standard point angle for general-purpose material entry
• Solid carbide construction for hardness and wear resistance
• Bright uncoated finish maintains tight dimensional tolerances
• Regular right-hand spiral flutes with tapered web for chip clearance
• Straight cylindrical shank compatible with standard collets and chucks

Compatibility

Designed as an OEM-style replacement or production-use drill bit within the PRECISION TWIST DRILL Series D33F-D33W-D33L-D33M. Fits standard straight-shank chucks and collets accepting a 0.0360-inch shank diameter.

Installation Notes

This bit is installed by machinists or trade technicians in drill presses, CNC machining centers, or precision hand drills. Secure the straight shank firmly in a compatible collet or chuck before operation. Use appropriate cutting fluid or coolant for extended runs in ferrous materials to prevent heat buildup, as this bit does not support through-coolant. Inspect the cutting edge for chipping before each use, as carbide is brittle and sensitive to lateral loading.
