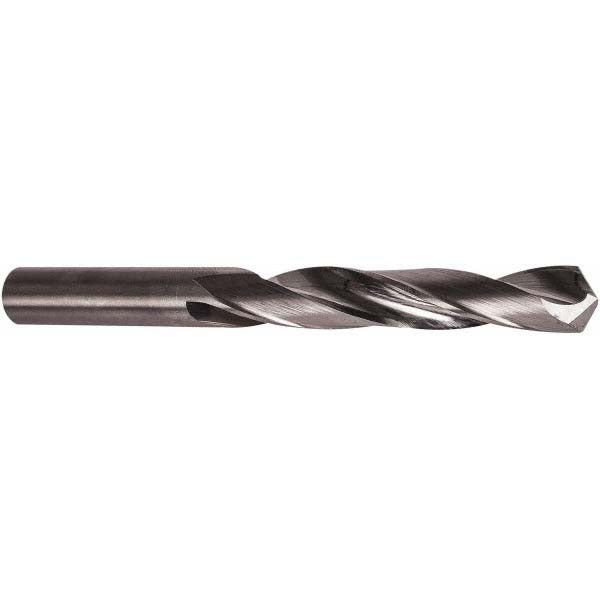

Precision Twist Drill 6001936 Jobber Drill Bit Wire 9

Product Description

The PRECISION TWIST DRILL 6001936 is a high speed steel jobber-length drill bit sized to wire gauge number 9, equal to 0.1960 inches in diameter. Designed for general-purpose drilling, it features a standard 118-degree point angle and a two-flute spiral configuration with a tapered web and web-thinned tip for efficient chip evacuation and reduced thrust force. The bright, uncoated finish suits a broad range of workshop and field drilling applications. With a 3-inch overall length and a 1.75-inch flute length, this bit fits standard drill chucks and is handled by machinists, maintenance technicians, and trade professionals who require consistent performance in metal drilling tasks.

This drill bit is suited for drilling into steel, stainless steel, cast iron, non-ferrous metals, and hard materials. Its straight cylindrical shank and compact jobber-length geometry make it compatible with hand-held drills, drill presses, and CNC machining centers. The regular spiral type promotes smooth cutting in both light and heavy stock removal scenarios encountered in HVAC, electrical, plumbing, and general mechanical service work.

Key Features

• Wire gauge size 9 — 0.1960 inch diameter for precise hole sizing
• 118-degree standard point angle for general-purpose metal drilling
• High speed steel construction handles steel, stainless steel, cast iron, and non-ferrous metals
• Web-thinned, tapered web design reduces thrust and improves chip flow
• Bright uncoated finish — no coating buildup, easy inspection of wear
• Right-hand cut, two-flute spiral with 1.75-inch maximum drilling depth

Compatibility

Designed as an OEM-style jobber drill bit in Series D33F-D33W-D33L-D33M, suitable for use with any standard drill chuck accepting a 0.1960-inch straight cylindrical shank. Rated for primary workpiece material codes P, M, K, N, and H covering steel, stainless steel, cast iron, non-ferrous metal, and hard material applications.

Installation Notes

Installation is performed by machinists, maintenance technicians, or licensed trade professionals using a hand drill, drill press, or compatible power tool. Secure the straight shank fully in the chuck and confirm zero runout before beginning a cut. Always wear appropriate eye protection and secure the workpiece before drilling. Follow applicable ANSI safety standards for rotating cutting tools when operating in a shop or field environment.
