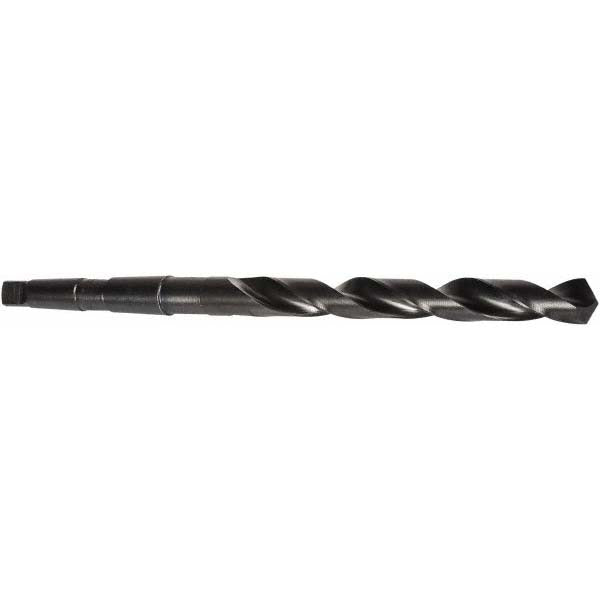

Precision Twist Drill 6001053 Taper Shank Drill Bit

Product Description

The PRECISION TWIST DRILL 6001053 is a taper shank drill bit designed for general-purpose drilling in metal, wood, and similar materials. It carries a 2MT (Morse Taper No. 2) shank for secure seating in compatible drill press spindles and lathes. The cutting diameter measures 37/64 inch (0.5781 inches) with a 118-degree standard point angle and a web-thinned tip to reduce thrust and improve penetration. The high speed steel construction with an oxide finish provides corrosion resistance and moderate heat tolerance in production and maintenance drilling environments. Licensed machinists, tool-and-die technicians, and industrial maintenance professionals are the primary users of this bit.

This drill bit suits drilling operations on drill presses, lathes, and milling machines equipped with a No. 2 Morse Taper spindle socket. It is built to ANSI standards and falls within the Series 209 lineup, intended for general-purpose right-hand cutting in ferrous and non-ferrous metals. The spiral flute runs a regular helix for efficient chip evacuation during through-hole and blind-hole applications. The 4-7/8 inch flute length accommodates moderate-depth holes without regrinding.

Key Features

• 37/64 inch (0.5781 inches) cutting diameter — ANSI-standard sizing
• No. 2 Morse Taper (2MT) shank for secure, self-holding fit in standard spindle sockets
• 118-degree standard point angle with web-thinned tip to lower entry thrust
• High speed steel construction with oxide finish for corrosion resistance
• Regular spiral flute, right-hand cutting for efficient chip removal
• Coolant-through not required — suitable for conventional flood or dry drilling

Compatibility

Designed for use in drill press spindles, lathe tailstocks, and milling machine quills fitted with a No. 2 Morse Taper (2MT) socket. Conforms to ANSI standards for taper shank drill bits.

Installation Notes

Installation requires a No. 2 Morse Taper socket; seat the shank fully by hand and confirm positive engagement before power-on. Always power down and lock out the machine before inserting or removing the bit. A Morse taper drift and drift slot should be used to eject the bit — never strike the chuck or spindle housing directly. Work-holding and spindle speed selection should follow the machine manufacturer recommendations for the material being drilled.
