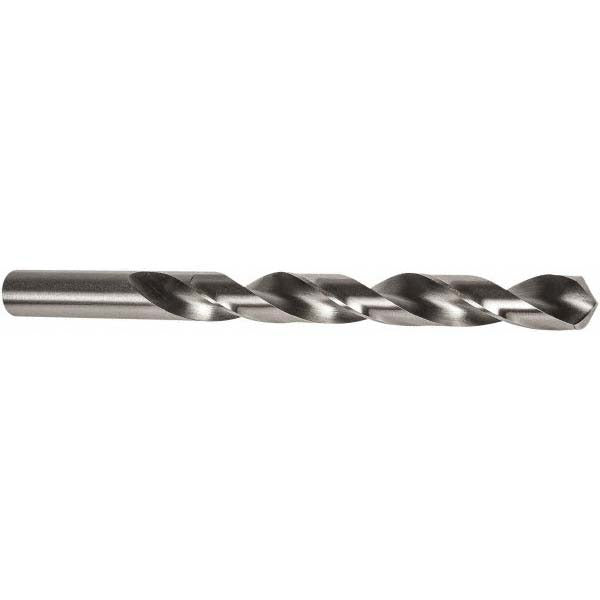

Precision Twist Drill 6000754 Jobber Drill Bit Hss

Product Description

The PRECISION TWIST DRILL 6000754 is a high speed steel jobber-length drill bit designed for general-purpose drilling in metal and hard materials. It features a 0.1654-inch diameter with a standard 118-degree point angle and a bright, uncoated finish. The spiral flute geometry with a tapered web and web-thinned point promotes efficient chip evacuation and reduces walking at drill entry. At 2.9528 inches overall length with a 1.6929-inch flute length, this bit fits standard drill chucks and drill presses used in shop and field metalworking applications. It is installed and used by machinists, pipefitters, HVAC fabricators, and general trade mechanics.

This jobber drill is suited for drilling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium in both production and maintenance settings. The straight-cylindrical shank fits standard keyless and keyed chucks without adapters. It conforms to DIN 338 and ANSI standards, making it a direct-fit replacement for equivalent jobber-length bits in Series 2A. The right-hand cutting direction and regular spiral are appropriate for conventional drill press and hand-drill operation on a wide range of workpiece materials.

Key Features

• 0.1654-inch diameter with matching straight-cylindrical shank for secure chuck engagement
• 118-degree standard point angle for general-purpose entry into steel and hard materials
• High speed steel construction handles steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium
• Bright, uncoated finish allows easy visual inspection of wear
• Web-thinned, tapered web design reduces thrust and improves chip flow
• Meets DIN 338 and ANSI standards, Series 2A

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with standard keyed and keyless drill chucks accepting a 0.1654-inch straight-cylindrical shank.

Installation Notes

Secure the shank fully in the chuck before operation and verify chuck key is removed before powering the drill. Use appropriate cutting fluid or coolant when drilling stainless steel, superalloys, or titanium to extend bit life and control heat. Clamp workpieces firmly to prevent movement and reduce the risk of drill breakage at this small diameter. Inspect the cutting edges before each use and replace when chipping or dulling is observed.
